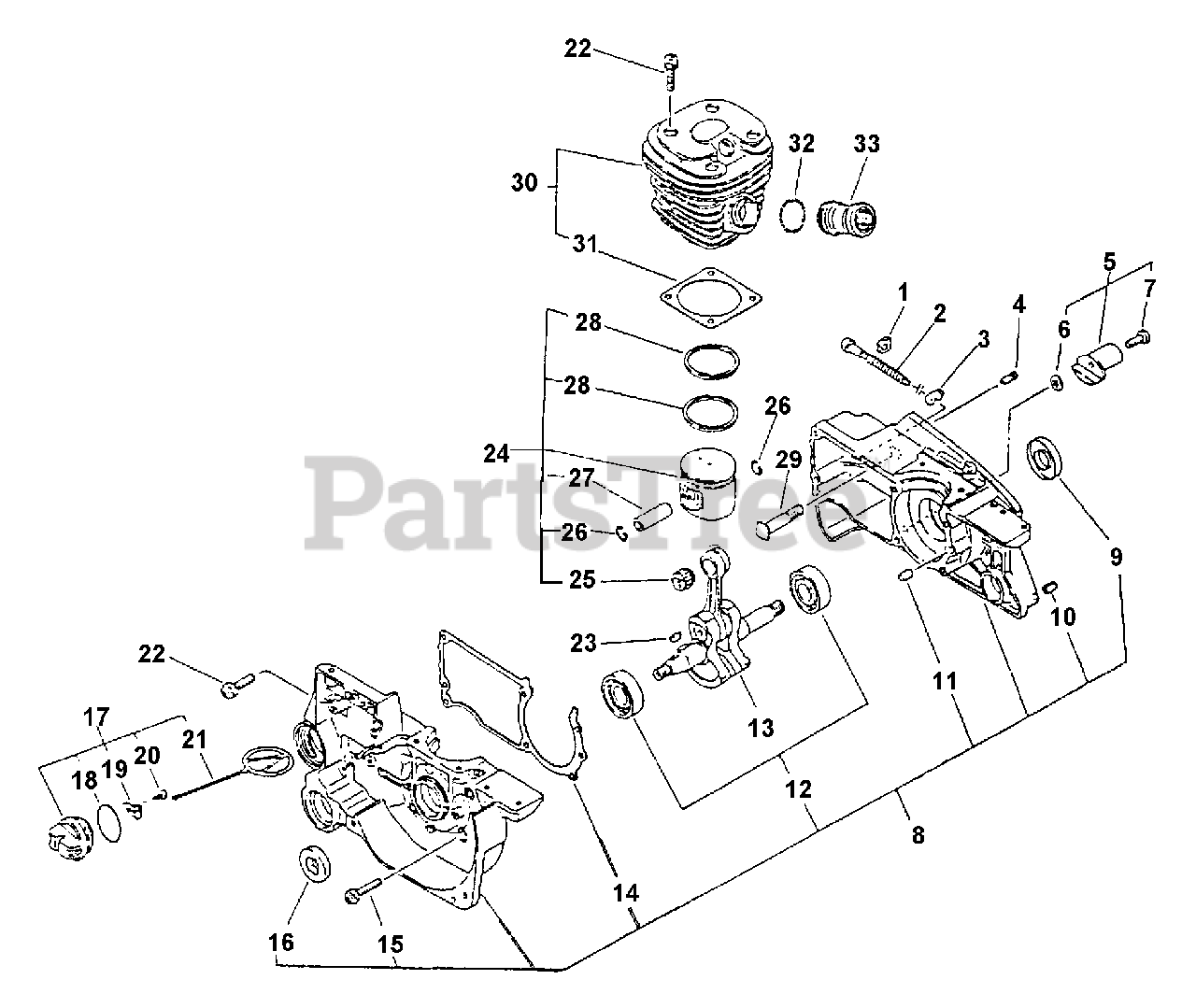

CS-5000 - Echo Chainsaw (Original Version) Crankcase, Engine Parts Diagram

Chainsaw

Crankcase, Engine Parts Diagram

  • Title

$0.99

$

In Stock, Qty 15

0

2

Echo 43301619830

SCREW, TENSIONER

$5.49

$

In Stock, Qty 5

0

3

Echo 43301419830

TENSIONER, CHAIN

$4.99

$

In Stock, only 3 left!

0

4

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

5

Echo 43300033330

CHAIN CATCHER KIT

Note: Includes ITEMS 6 & 7

$1.49

$

In Stock, only 4 left!

0

6

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90022005018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0

8

Echo 10020439830

CRANKCASE KIT
(Superseded to 10020439831)

Note: INCLUDES ITEMS 4, 9 - 12, 14 - 16 & 29

$292.99

$

Usually ships in 2-4 days

0

9

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

10

Echo 90034550010

PIN - SPRING -- 5X10

$1.49

$

Usually ships in 2-4 days

0

11

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

13

Echo 10010033330

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

14

Echo 10024239730

GASKET, CRANKCASE

$7.49

$

In Stock, only 1 left!

0

15

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

16

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

17

Echo 43600137932

CAP ASSY
(Superseded to 43600137933)

Note: INCLUDES ITEMS 18 - 21

$14.99

$

In Stock, only 1 left!

0

18

Echo 90072502025

O-RING - 25

$2.49

$

In Stock, only 2 left!

0

19

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90024603008

SCREW - 3X8

$

$

Not available

21

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

22

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

$1.49

$

In Stock, Qty 11

0

24

Echo 10000039730

PISTON KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 25 - 28

$

$

Not available

25

Echo 10001219830

BEARING, NEEDLE

$11.99

$

In Stock, only 1 left!

0

26

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

27

Echo 10001339730

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

28

Echo 10001139730

RING, PISTON
(Superseded to 10001139731)

$9.99

$

In Stock, Qty 12

0

29

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, only 2 left!

0

30

Echo 10100139730

CYLINDER KIT
(Superseded to Discontinued)

Note: INCLUDES ITEM 31

$

$

Not available

31

Echo 10101039730

GASKET, CYLINDER

$

$

Not available

32

Echo 13051619830

BAND
(Superseded to Discontinued)

$

$

Not available

33

Echo 13051033330

ADAPTOR, INTAKE

$10.99

$

Usually ships in 2-4 days

0
