CS-5000 - Echo Chainsaw (Original Version) Clutch, Cutting Attch, Chain Brake Parts Diagram

Chainsaw

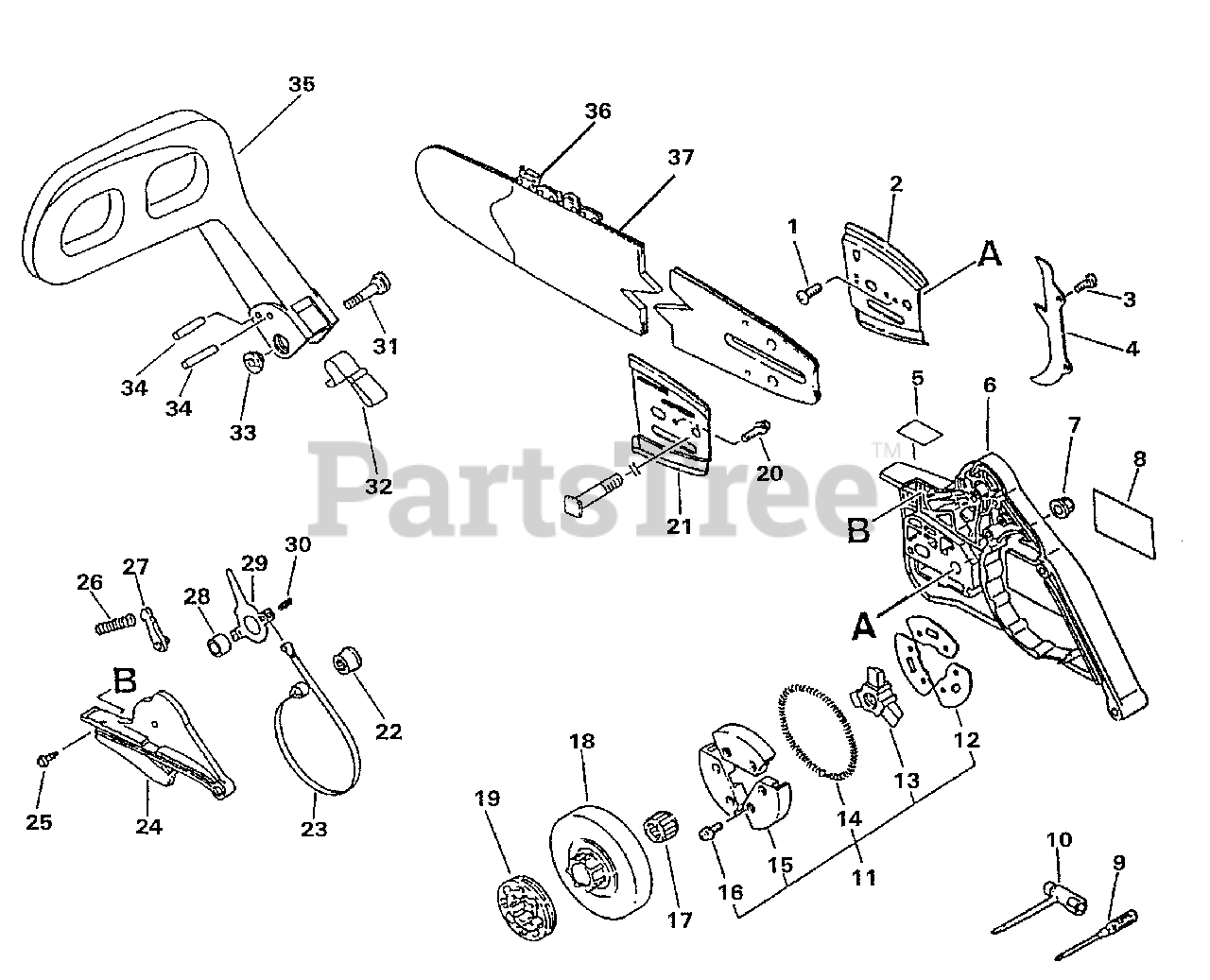

Clutch, Cutting Attch, Chain Brake Parts Diagram

  • Title

Echo 43320033930

CHAIN BRAKE ASSY
(Superseded to 43320033931)

Note: INCLUDES ITEMS 6, 22 - 35

$

$

Not available

1

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

2

Echo 43301214533

PLATE, GUIDE - OUTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 88020030131

SPIKE KIT
(Superseded to Discontinued)

Note: Includes ITEM 4

$

$

Not available

4

Echo 88021130130

BOLT

$10.99

$

In Stock, only 1 left!

0

5

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$3.99

$

Usually ships in 2-4 days

0

6

Echo 43300537630

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

7

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

8

Echo 89011838130

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

9

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 2 left!

0

10

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

11

Echo 17500037531

CLUTCH ASSY
(Superseded to P021007070)

Note: Includes ITEMS 12-16

$65.99

$

In Stock, only 1 left!

0

12

Echo 17501919830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

13

Echo 17501619830

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

14

Echo 17501819830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

15

Echo 17500219830

CLUTCH SHOE SET

$40.99

$

Usually ships in 2-4 days

0

16

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 6

0

17

Echo 17501219830

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

18

Echo 17510519831

DRUM, CLUTCH
(Superseded to 17510533330)

$

$

Not available

19

Echo 17511412530

SPROCKET, RIM

$18.99

$

In Stock, Qty 13

0

20

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

21

Echo 43301319930

PLATE, GUIDE - INNER
(Superseded to Discontinued)

$

$

Not available

22

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 1 left!

0

23

Echo 43312335430

BAND, BRAKE
(Superseded to C328000060)

$7.49

$

In Stock, only 4 left!

0

24

Echo 43331037630

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

25

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

26

Echo 43312235430

SPRING, BRAKE

$3.49

$

Usually ships in 2-4 days

0

27

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

28

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 2 left!

0

29

Echo 43320835430

LEVER, BRAKE
(Superseded to 43320835431)

$19.99

$

Usually ships in 2-4 days

0

30

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 2 left!

0

31

Echo 43311337530

MOUNTING KIT
(Superseded to 43311337538)

$5.49

$

In Stock, Qty 14

0

32

Echo 43311437530

SPRING, RETURN
(Superseded to 43311437531)

$

$

Not available

33

Echo 43313730130

NUT

$11.99

$

Usually ships in 2-4 days

0

34

Echo 90033035260

PIN - 3.5X26

$0.99

$

In Stock, Qty 7

0

35

Echo 43310533930

LEVER, BRAKE
(Superseded to 43310535130)

$

$

Not available

36

Echo 33SL66CQ

SAW CHAIN - 16" (40cm)
(Superseded to 20BPX66CQ)

Note: GAUGE: .050" / PITCH: .325"

$33.99

$

In Stock, only 1 left!

0

36

Echo 33SL72CQ

SAW CHAIN - 18" (45cm)
(Superseded to 20BPX72CQ)

Note: GAUGE: .050" / PITCH: .325"

$36.99

$

In Stock, only 2 left!

0

36

Echo 33SL78CQ

SAW CHAIN - 20" (50cm)
(Superseded to 20BPX78CQ)

Note: GAUGE: .050" / PITCH: .325"

$38.99

$

In Stock, only 1 left!

0

37

Echo 16A0AD3366

GUIDE BAR - 16" (40cm)
(Superseded to 16F0AD3366C)

Note: GAUGE: .050"

$55.99

$

In Stock, only 1 left!

0

37

Echo 18A0AD3372

GUIDE BAR - 18" (45cm)

Note: GAUGE: .050"

$

$

Not available

37

Echo 20A0AD3378

GUIDE BAR - 20" (50cm)
(Superseded to 20F0AD3378C)

Note: GAUGE: .050"

$63.99

$

In Stock, only 1 left!

0
