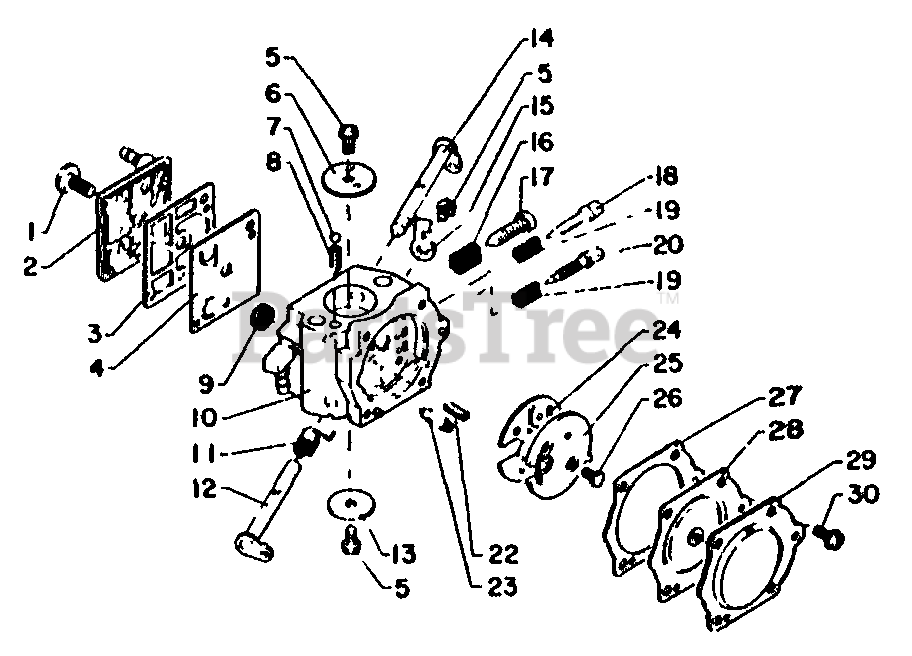

CS-500 VL - Echo Chainsaw (SN: 049001 - 999999) Carburetor Assy Parts Diagram

Chainsaw

Carburetor Assy Parts Diagram

  • Title

Echo 12300012332

CARBURETOR
(Superseded to 12300014331)

$

$

Not available

1

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

2

Echo 12312412330

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 12312512330

GASKET, PUMP

$2.99

$

In Stock, only 1 left!

0

4

Echo 12311212330

DIAPHRAGM, PUMP

$6.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

6

Echo 12313212330

VALVE, CHOKE

$

$

Not available

7

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

8

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 17

0

11

Echo 12311312330

SPRING, THROTTLE RETURN

$

$

Not available

12

Echo 12311712330

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12311603930

VALVE, THROTTLE

$1.99

$

In Stock, only 3 left!

0

14

Echo 12313112330

SHAFT, CHOKE

$5.99

$

Usually ships in 2-4 days

0

15

Echo 12315612330

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

17

Echo 12313406530

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 2 left!

0

18

Echo 12312012330

NEEDLE - HIGH SPEED

$

$

Not available

19

Echo 12312103930

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 5

0

20

Echo 12311812330

NEEDLE - LOW SPEED

$4.49

$

Usually ships in 2-4 days

0

22

Echo 12312203930

SPRING, METERING LEVER

$

$

Not available

23

Echo 12313703930

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 12316412330

GASKET, CIRCUIT PLATE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12316612332

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

26

Echo 12316712330

SCREW, CIRCUIT PLATE

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12314010630

GASKET, METERING

$2.49

$

Usually ships in 2-4 days

0

28

Echo 12314112330

DIAPHRAGM, METERING
(Superseded to Discontinued)

$

$

Not available

29

Echo 12314212330

COVER, DIAPHRAGM

$4.49

$

In Stock, only 1 left!

0

30

$0.99

$

In Stock, Qty 9

0

10

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
