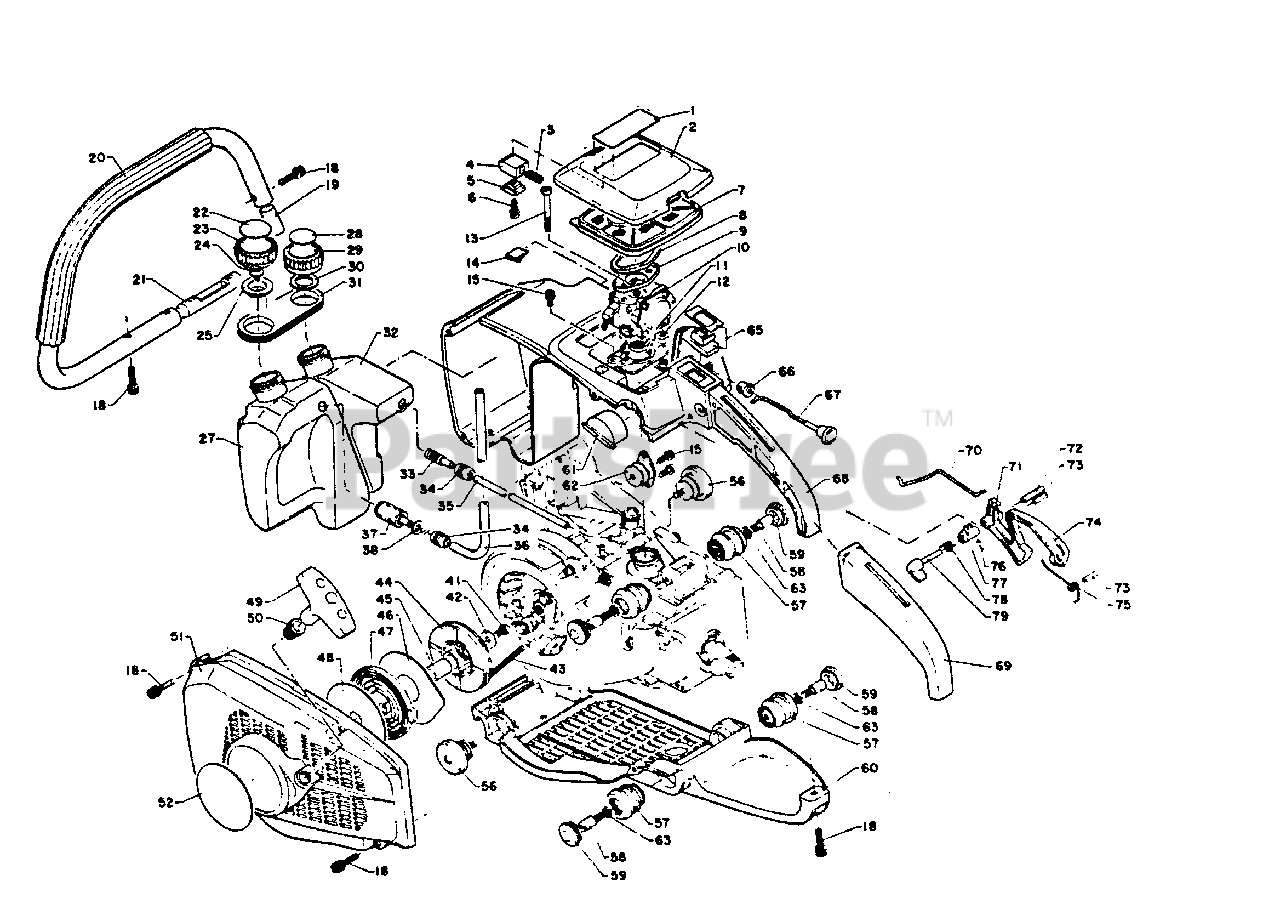

CS-500 VL - Echo Chainsaw (SN: 001001 - 049000) Starter, Carburetor, Handles, Air Cleaner, Fuel Sys, Oil Tank Parts Diagram

Chainsaw

Starter, Carburetor, Handles, Air Cleaner, Fuel Sys, Oil Tank Parts Diagram

  • Title

1

Echo 89015112330

LABEL - CAUTION
(Superseded to 89015112331)

$

$

Not available

Echo 13030212330

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: Consists of 2 thru 6.

$

$

Not available

2

Echo 13031312330

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 13042612330

SPRING

$0.99

$

Usually ships in 2-4 days

0

4

Echo 13042512330

Key, air cleaner cover

$2.49

$

Usually ships in 2-4 days

0

5

Echo 13042712330

ADAPTOR, KEY

$2.49

$

Usually ships in 2-4 days

0

6

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

7

Echo 13031012330

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

8

Echo 13032012330

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13042012330

BRACKET, AIR CLEANER
(Superseded to 13042012331)

$

$

Not available

10

Echo 12300012330

CARBURETOR
(Superseded to 12300012332)

$

$

Not available

11

Echo 13051112330

SEAL
(Superseded to Discontinued)

$

$

Not available

12

Echo 13001312330

ADAPTOR, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

13

Echo 90022005042

SCREW - 5X40

$0.99

$

Usually ships in 2-4 days

0

14

Echo 35113712330

STOPPER

$1.49

$

Usually ships in 2-4 days

0

15

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo 35161110530

Insert, front handle
(Superseded to Discontinued)

$

$

Not available

20

Echo 35160612330

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

21

Echo 35161212330

Insert, front handle (L)
(Superseded to Discontinued)

$

$

Not available

22

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

Echo 13100404931

CAP ASSY
(Superseded to 13160022130)

Note: Consists of 23 thru 25.

$

$

Not available

23

Echo 13101704930

CAP
(Superseded to Discontinued)

$

$

Not available

24

Echo 13131400330

VENT

$11.99

$

Usually ships in 2-4 days

0

25

Echo 13101504931

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

27

Echo 13101012330

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

28

Echo 89015303930

LABEL - OIL
(Superseded to 89015311430)

$

$

Not available

Echo 43600112330

CAP ASSY
(Superseded to 43600213630)

Note: Consists of 29 and 30.

$

$

Not available

29

Echo 43600012330

CAP, OIL TANK
(Superseded to 43600112330)

$

$

Not available

30

Echo 43601212330

GASKET, CAP

$0.99

$

In Stock, only 2 left!

0

31

Echo 13103812330

CONNECTOR
(Superseded to 13103812331)

$7.99

$

In Stock, only 1 left!

0

32

Echo 43601012330

TANK, OIL
(Superseded to 43601012331)

$

$

Not available

33

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

34

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

35

Echo 43721012330

PIPE - OIL
(Superseded to 43721012331)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

36

Echo 13200712330

FUEL PIPE KIT
(Superseded to Discontinued)

$

$

Not available

37

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 20+

0

38

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

Echo 17720012330

STARTER ASSY
(Superseded to 17720012331)

Note: Consists of 41 thru 51.

$

$

Not available

41

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

42

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

43

Echo 17722602830

ROPE, STARTER
(Superseded to 17722607060)

$10.99

$

In Stock, Qty 9

0

44

Echo 17720612330

REEL, ROPE
(Superseded to 17720614330)

$29.99

$

In Stock, only 1 left!

0

45

Echo 17721612330

COLLAR

$1.99

$

In Stock, Qty 20+

0

46

Echo 17724212330

PLATE, STARTER

$5.49

$

In Stock, only 4 left!

0

47

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

48

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0

49

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 13

0

50

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

51

Echo 10150712330

CASE, STARTER
(Superseded to 10150712331)

$

$

Not available

52

Echo 89011212330

LABEL - ECHO
(Superseded to 89012112331)

$

$

Not available

56

Echo 10090512330

CUSHION
(Superseded to Discontinued)

$

$

Not available

57

Echo 10091012330

CUSHION
(Superseded to 10091012530)

$

$

Not available

58

Echo 10091512330

SCREW
(Superseded to 10091512530)

$3.49

$

Usually ships in 2-4 days

0

59

Echo 10091812330

CAP, CUSHION
(Superseded to 10091814330)

$1.99

$

In Stock, Qty 20+

0

60

Echo 35112312330

SUPPORT
(Superseded to Discontinued)

$

$

Not available

61

Echo 35113812330

COVER, CUSHION
(Superseded to 35113814332)

$

$

Not available

62

Echo 10092112330

CUSHION
(Superseded to Discontinued)

$

$

Not available

63

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

65

Echo 16340012330

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

66

Echo 17881012330

GROMMET

$1.49

$

Usually ships in 2-4 days

0

67

Echo 17851012330

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

68

Echo 35111012330

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

69

Echo 35111112330

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

70

Echo 17801112330

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

71

Echo 17801012330

TRIGGER, THROTTLE
(Superseded to 17801012331)

$

$

Not available

72

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

73

Echo 90034040013

PIN - SPRING -- 4X13

$0.99

$

In Stock, Qty 9

0

74

Echo 17809012330

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

75

Echo 17809110531

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, only 1 left!

0

76

Echo 90034016010

PIN - SPRING -- 1.6X10

$0.99

$

Usually ships in 2-4 days

0

77

Echo 17801203930

LOCKOUT, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

78

Echo 17801303930

SPRING, LOCKOUT LEVER
(Superseded to Discontinued)

$

$

Not available

79

Echo 17800803430

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available
