CS-500 VL - Echo Chainsaw (SN: 001001 - 049000) Chain Brake Parts Diagram

Chainsaw

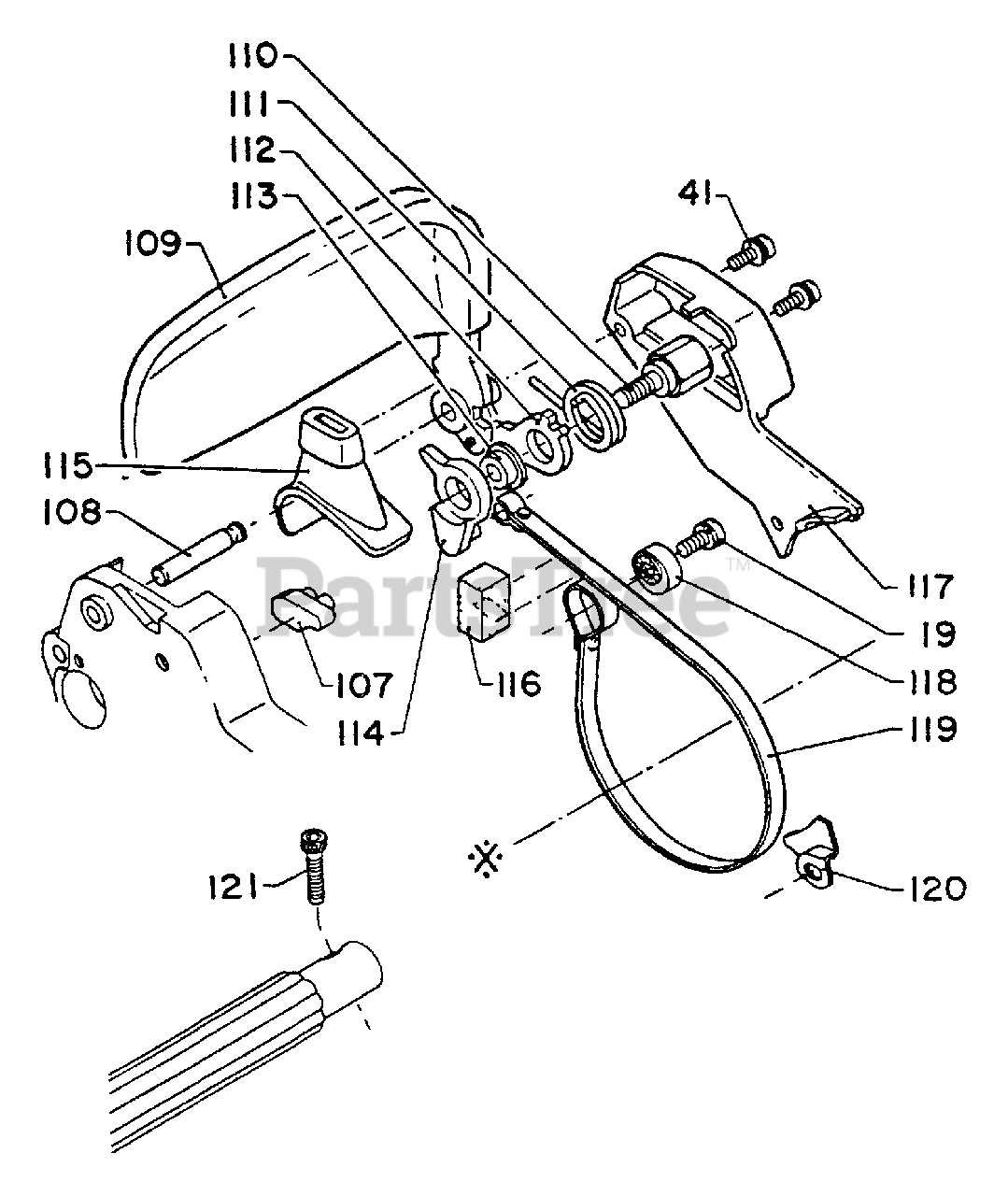

Chain Brake Parts Diagram

  • Title

Echo 43310012331

CHAIN BRAKE ASSY
(Superseded to 43310012332)

$

$

Not available

19

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

41

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 13

0

107

Echo 43314912530

RESET, BRAKE

$3.49

$

Usually ships in 2-4 days

0

108

Echo 43311312330

SCREW

$3.49

$

In Stock, only 1 left!

0

109

Echo 43310512331

HANDLE, BRAKE
(Superseded to 43310512332)

$

$

Not available

110

Echo 43313412330

BOLT

$6.99

$

In Stock, only 1 left!

0

111

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

112

Echo 43311912330

STOPPER

$4.49

$

In Stock, only 4 left!

0

113

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

114

Echo 43311712330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

115

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

116

Echo 43331312330

SEAL
(Superseded to Discontinued)

$

$

Not available

117

Echo 43331012330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

118

Echo 43314212330

ADJUSTER, BRAKE BAND

$2.49

$

In Stock, only 3 left!

0

119

Echo 43312312330

BAND, BRAKE

$8.49

$

Usually ships in 2-4 days

0

120

Echo 43314412330

RETAINER, BRAKE BAND
(Superseded to Discontinued)

$

$

Not available

121

Echo 90016245025

SCREW - 5X25

$

$

Currently unavailable
