CS-500 P - Echo Chainsaw (SN: C19413001001 - C19413999999) Intake, Air Filter, Engine Cover Parts Diagram

Chainsaw

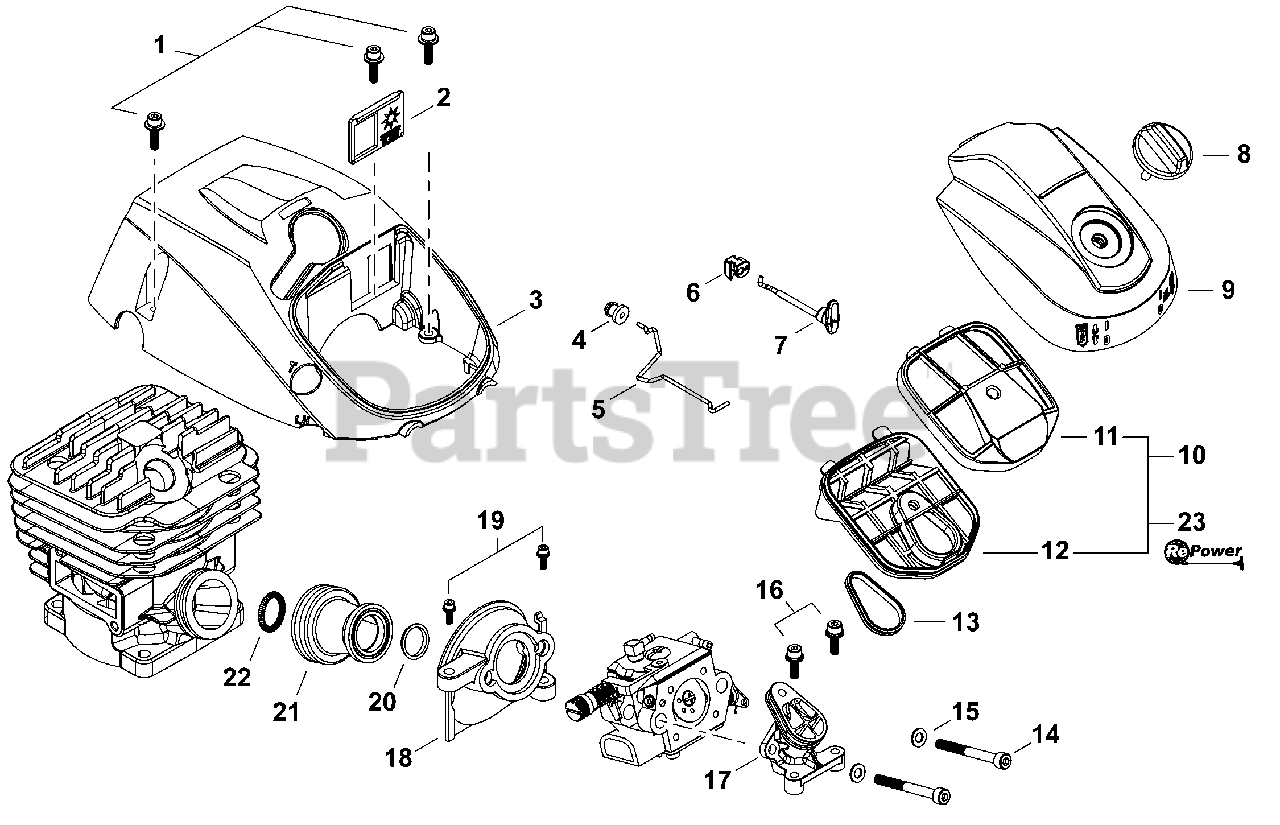

Intake, Air Filter, Engine Cover Parts Diagram

  • Title

1

Echo V202000200

BOLT M4×16

$1.99

$

In Stock, Qty 20+

0

2

Echo A219000040

PLATE, SHUTTER

$2.99

$

Usually ships in 2-4 days

0

3

Echo A160002380

COVER, ENGINE

$39.99

$

Usually ships in 2-4 days

0

4

Echo V133000040

GROMMET, THROTTLE ROD

$8.49

$

In Stock, only 1 left!

0

5

Echo C454000280

ROD, THROTTLE

$3.99

$

In Stock, only 1 left!

0

6

Echo V130000131

GROMMET, CHOKE

$1.49

$

In Stock, only 3 left!

0

7

Echo A240000111

ROD, CHOKE

$5.49

$

In Stock, only 1 left!

0

8

Echo A235000350

THUMBSCREW

$8.49

$

In Stock, only 1 left!

0

9

Echo A232001500

COVER, AIR FILTER
(Superseded to A232001501)

$10.99

$

Usually ships in 2-4 days

0

10

Echo A226001090

AIR FILTER ASSY, FLOCKED

Note: Includes Items 11-12

$26.99

$

In Stock, Qty 5

0

11

Echo A226001100

FILTER, FLOCKED UPPER AIR

$13.99

$

In Stock, only 1 left!

0

12

Echo A226001110

FILTER, FLOCKED LOWER AIR

$13.99

$

Usually ships in 2-4 days

0

13

Echo V581000280

GASKET

$1.49

$

In Stock, Qty 10

0

14

Echo 9110005048

BOLT M5×48

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo V202000200

BOLT M4×16

$1.99

$

In Stock, Qty 20+

0

17

Echo A204000220

ADAPTOR, AIR FILTER

$5.99

$

In Stock, only 1 left!

0

18

Echo A200000852

INSULATOR, INTAKE

$6.49

$

Usually ships in 2-4 days

0

19

Echo V202000200

BOLT M4×16

$1.99

$

In Stock, Qty 20+

0

20

Echo V359000200

COLLAR 16

$2.49

$

Usually ships in 2-4 days

0

21

Echo A202000150

BELLOWS, INTAKE

$11.99

$

In Stock, only 1 left!

0

22

Echo V451000920

SPRING, TENSION
(Superseded to A206000050)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 90173BP

TUNE-UP KIT - REPOWER
(Superseded to 90174Y)

$41.99

$

Usually ships in 2-4 days

0
