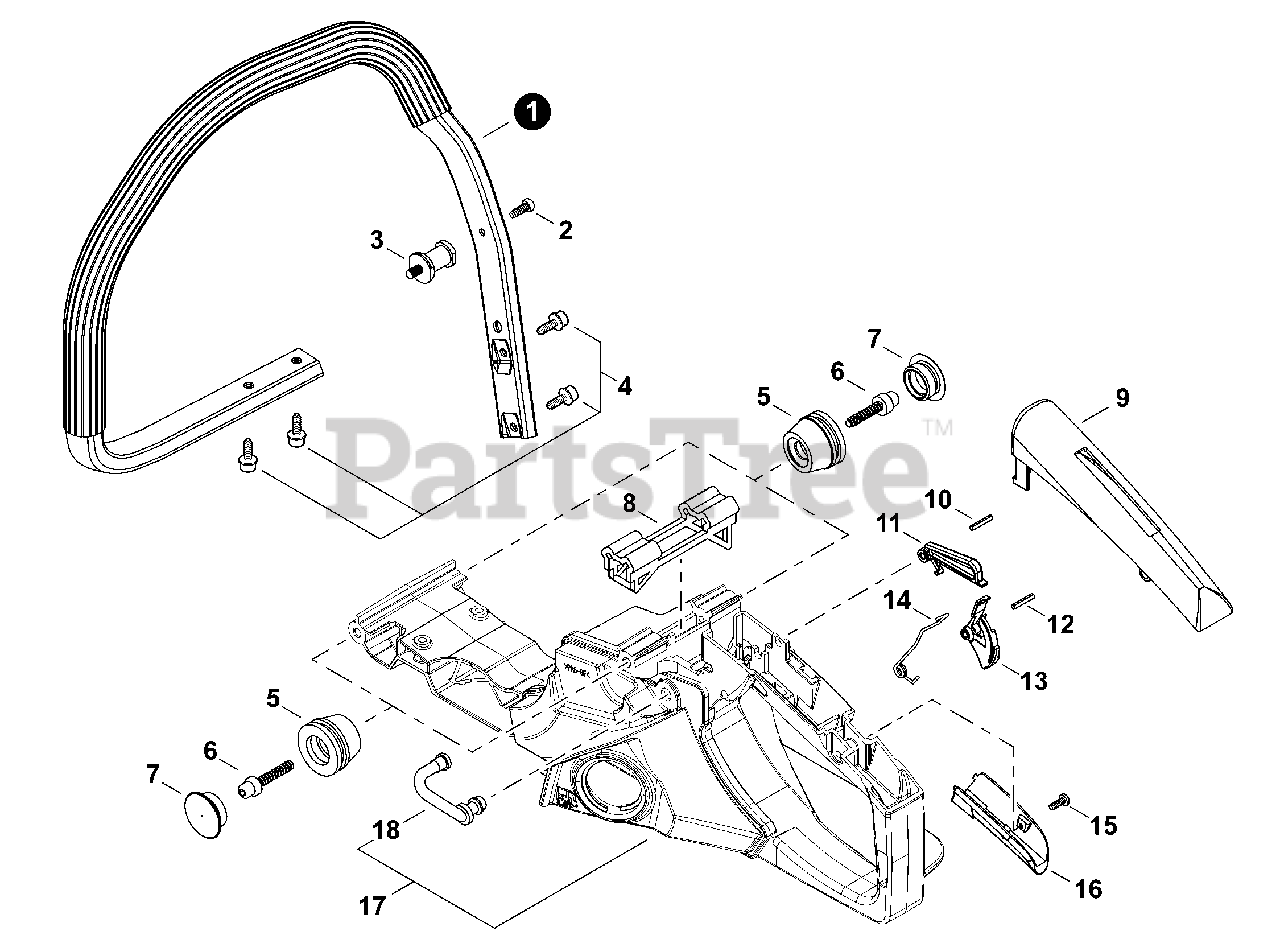

CS-500 P - Echo Chainsaw (SN: C19413001001 - C19413999999) Handles Parts Diagram

Chainsaw

Handles Parts Diagram

  • Title
1

Echo C040000710

HANDLE, FRONT

$68.99

$

Usually ships in 2-4 days

0

2

Echo V202000350

BOLT M4×14

$0.99

$

In Stock, Qty 8

0

3

Echo V401000330

CUSHION 5

$9.99

$

In Stock, Qty 8

0

4

Echo V203001490

BOLT, TAPPING M5×16

$1.99

$

In Stock, Qty 6

0

5

Echo V401000340

CUSHION 5

$4.99

$

In Stock, Qty 11

0

6

$2.99

$

In Stock, Qty 19

0

7

Echo V421000070

CAP, CUSHION

$2.99

$

In Stock, Qty 20+

0

8

Echo V420002810

CUSHION, STOPPER

$7.99

$

Usually ships in 2-4 days

0

9

Echo C411000170

COVER, HANDLE

$10.99

$

In Stock, only 1 left!

0

11

Echo C460000390

LOCKOUT, THROTTLE

$4.99

$

In Stock, only 1 left!

0

10

Echo 9304240220

PIN, SPRING Ø4×22mm

$0.99

$

In Stock, only 2 left!

0

12

Echo 9306040250

PIN, SPRING Ø4×25mm

$0.99

$

In Stock, only 2 left!

0

13

Echo C450000640

TRIGGER, THROTTLE
(Superseded to C450000641)

$4.49

$

In Stock, only 1 left!

0

14

Echo V452000850

SPRING, THROTTLE RETURN

$2.49

$

In Stock, only 2 left!

0

15

Echo 9144904022

SCREW, TAPPING M4×22

$0.99

$

In Stock, Qty 8

0

16

Echo C403000530

GRIP, LOWER

$14.99

$

In Stock, only 1 left!

0

17

Echo C041000581

HANDLE ASSY, REAR
(Superseded to C041000582)

Note: Includes Item 18

$80.99

$

In Stock, only 1 left!

0

18

Echo V470001530

PIPE, FUEL VENT
(Superseded to V470001531)

$2.49

$

In Stock, only 2 left!

0
