CS-500 P - Echo Chainsaw (SN: C19413001001 - C19413999999) Fuel System S/N C19413003051-C19413999999 Parts Diagram

Chainsaw

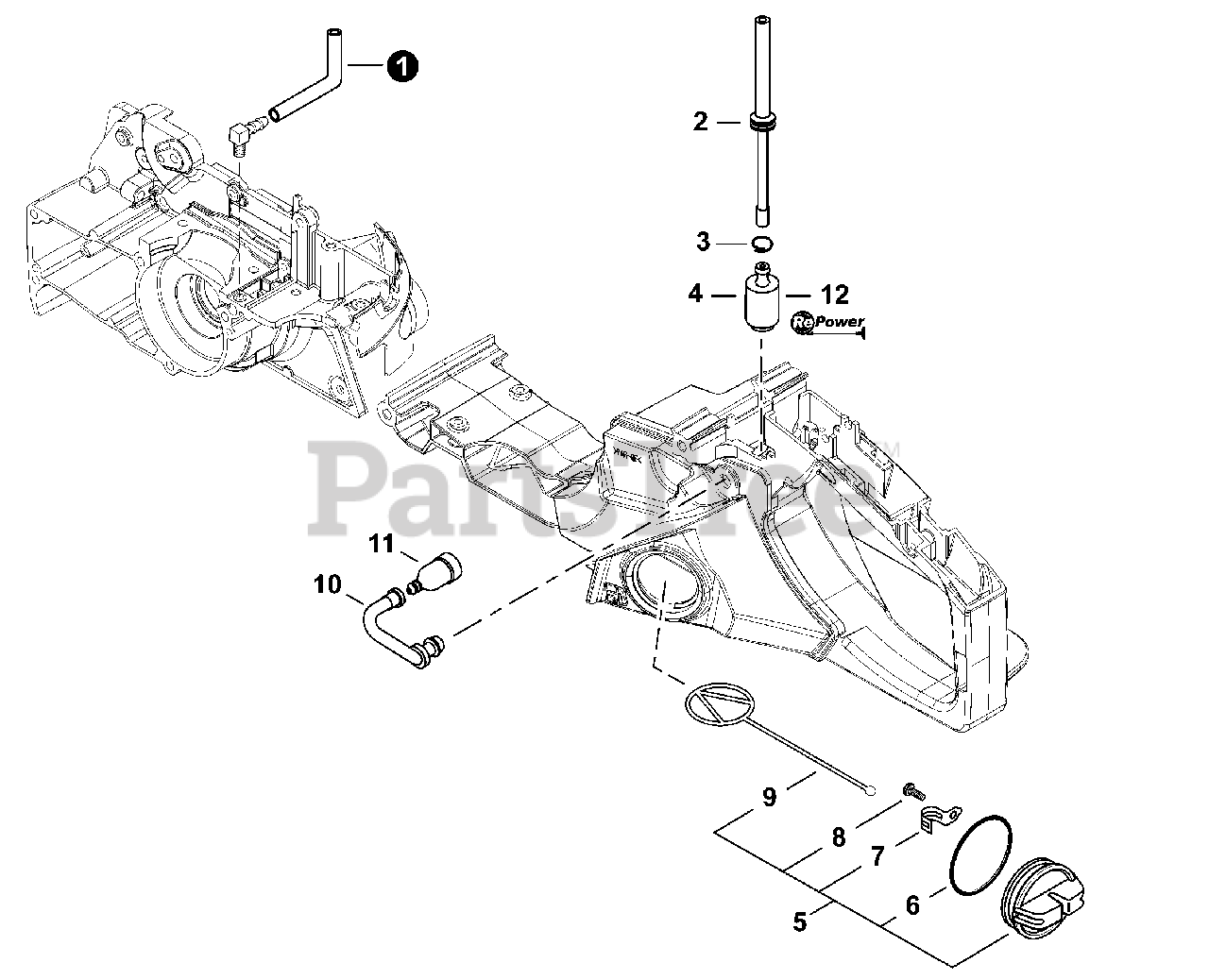

Fuel System S/N C19413003051-C19413999999 Parts Diagram

  • Title
1

Echo V471002800

PIPE, PULSE

$8.99

$

Usually ships in 2-4 days

0

2

Echo 90172BP

FUEL SYSTEM KIT - REPOWER
(Superseded to Discontinued)

Note: Includes Items 3-8

$

$

Not available

3

Echo V471003970

PIPE, FUEL 3×6×75

$4.49

$

In Stock, only 1 left!

0

4

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

5

Echo V470001990

PIPE, FUEL
(Superseded to V470001991)

$6.99

$

In Stock, only 1 left!

0

6

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

7

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

8

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

9

Echo P021037420

CAP ASSY, FUEL

Note: Includes Items 10-13

$3.49

$

In Stock, Qty 15

0

10

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

11

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

12

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

13

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

14

Echo V470001530

PIPE, FUEL VENT
(Superseded to V470001531)

$2.49

$

In Stock, only 2 left!

0

15

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

16

Echo 90173BP

TUNE-UP KIT - REPOWER
(Superseded to 90174Y)

$41.99

$

In Stock, only 1 left!

0
