CS-500 P - Echo Chainsaw (SN: C19312001001 - C19312999999) Clutch Cover Parts Diagram

Chainsaw

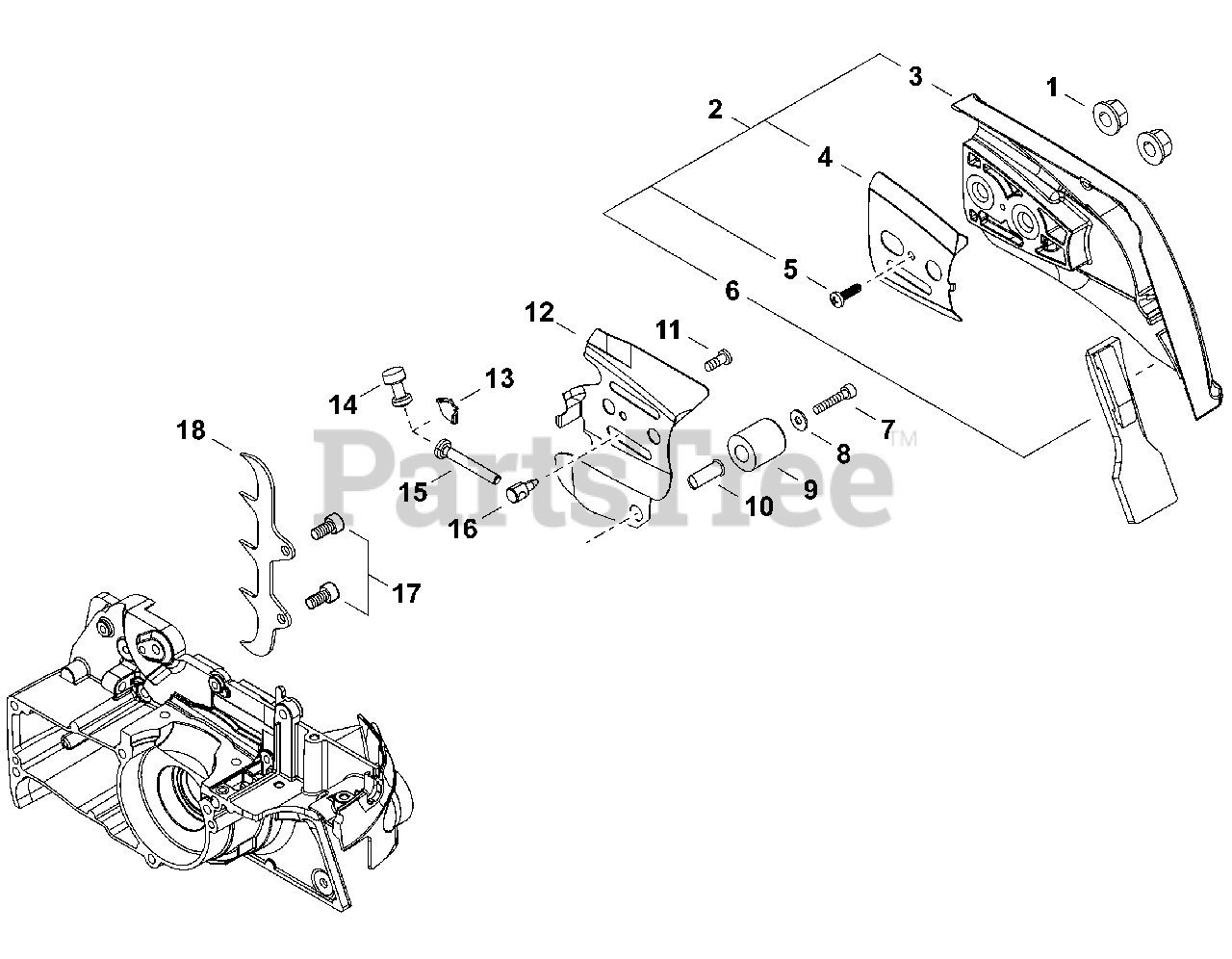

Clutch Cover Parts Diagram

  • Title

1

Echo V265000200

NUT 8

$1.99

$

In Stock, Qty 20+

0

2

Echo P021036190

COVER ASSY, CLUTCH
(Superseded to P021036191)

Note: Includes items 3-6

$51.99

$

In Stock, only 1 left!

0

3

Echo C300000780

GUARD, SPROCKET

$16.99

$

Usually ships in 2-4 days

0

4

Echo C305000260

PLATE, GUIDE - OUTER

$14.99

$

Usually ships in 2-4 days

0

5

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

6

Echo C302000030

PROTECTOR

$2.49

$

In Stock, only 1 left!

0

7

Echo 90010505030

BOLT 5×30

$1.49

$

In Stock, only 1 left!

0

8

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

9

Echo C310000110

CHAIN CATCHER

$3.49

$

In Stock, only 1 left!

0

10

Echo V353000460

COLLAR 5

$0.99

$

In Stock, Qty 10

0

11

Echo V252000470

SCREW M4×7

$0.99

$

In Stock, Qty 7

0

12

Echo C305000411

PLATE, GUIDE - INNER

$8.99

$

Usually ships in 2-4 days

0

13

Echo V152002430

GUIDE, GEAR

$1.99

$

In Stock, Qty 12

0

14

Echo V651000790

SCREW, ADJUSTER

$8.99

$

In Stock, only 4 left!

0

15

Echo V253000610

SCREW, CHAIN TENSION

$6.49

$

In Stock, only 4 left!

0

16

Echo C309000110

TENSIONER, CHAIN

$2.49

$

In Stock, Qty 11

0

17

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

18

Echo C304000200

SPIKE, BUMPER

$20.99

$

Usually ships in 2-4 days

0
