CS 50 (UT-10711-A) - Homelite Chainsaw Handles Parts Diagram

Chainsaw

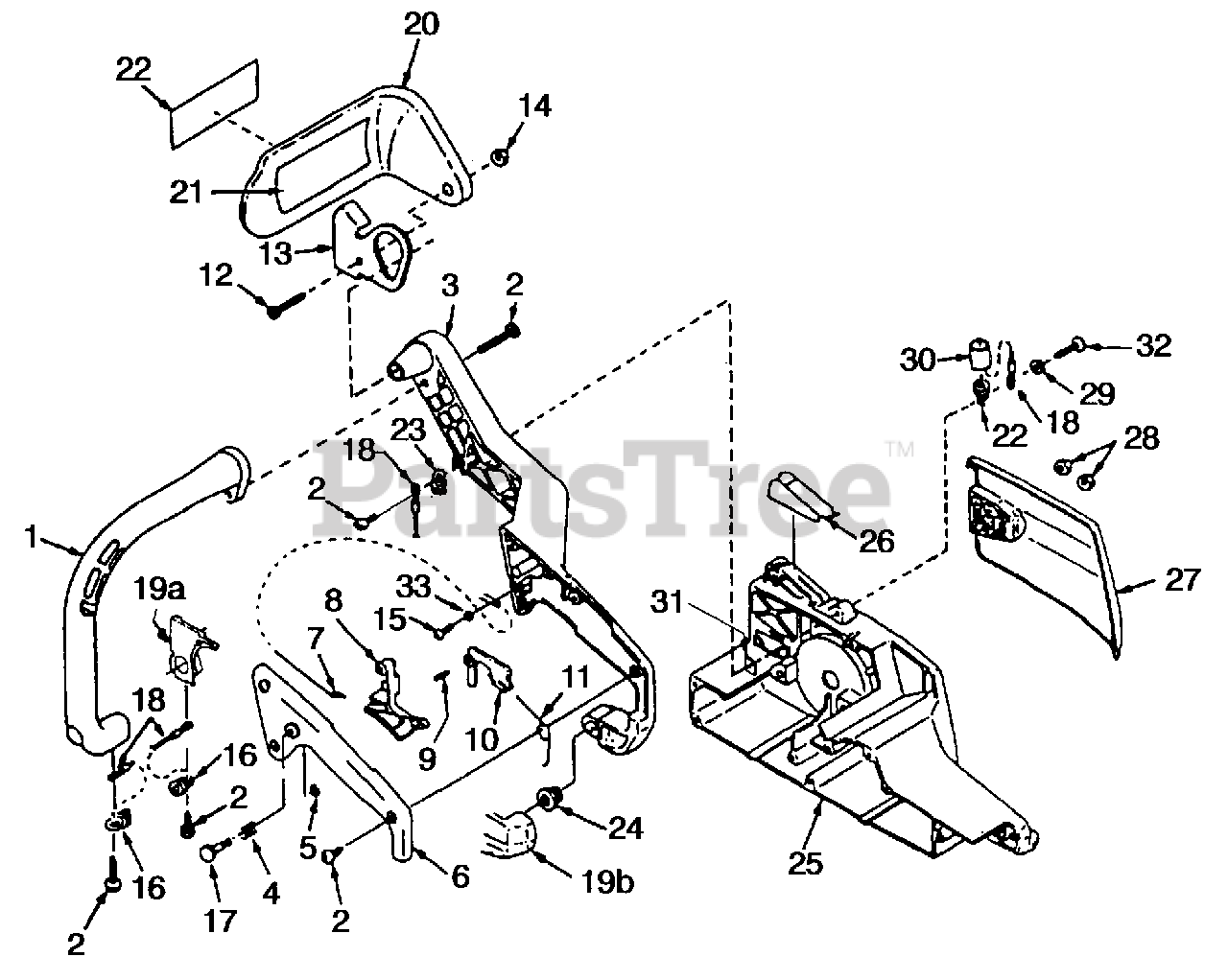

Handles Parts Diagram

  • Title

Homelite A06633

HANDLE KIT

Note: Assembly

$

$

Currently unavailable

1

Homelite A01175

HANDLE BAR

$

$

Not available

2

Homelite 82546

SCREW, Thread Form (8-16 X 5/8")
(Superseded to 660675001)

$1.99

$

In Stock, only 1 left!

0

3

Homelite 002091

HANDLE-Rear

$

$

Currently unavailable

4

Homelite 95020

SPRING-Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 58409

RING, Retaining

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 00210C

COVER-Rear Handle

$

$

Not available

7

Homelite 00997D

CABLE-Throttle

$

$

Currently unavailable

8

Homelite A03806A

TRIGGER & SWIVEL

$

$

Currently unavailable

9

Homelite 70253

PIN-Dowel

$

$

Not available

10

Homelite 93385A

LOCK-Trigger

$

$

Not available

11

Homelite 02316

SPRING-Trottle

$

$

Not available

12

Homelite 80402A

SCREW-Hex Cap
(Superseded to UP07182)

$

$

Not available

13

Homelite 00258

MOUNTING BRACKET Handguard

$

$

Not available

14

Homelite 81258

NUT Flange Hex
(Superseded to UP06989)

$

$

Not available

15

Homelite 82513

SCREW, Thread Form (#6-19 X 7/8")

$2.49

$

In Stock, Qty 5

0

16

Homelite 01168

SPRING-Extension

$11.99

$

Usually ships in 3-7 days

0

17

Homelite 95671

PIN-Throttle Lock
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

18

Homelite 03583

RETAINER-Spring
(Superseded to UP07420)

$

$

Not available

19A

HOUSING-Starter Side

Note: NOT USED ON THIS MODEL

$

$

Not available

19B

Homelite 01715-1A

HOUSING-Starter Side

$

$

Not available

20

Homelite A95088A

HANDGUARD

Note: Assembly

$

$

Not available

21

Homelite 02661

DECAL-Kickback

$

$

Not available

22

Homelite 00317A

DECAL-Kickback

$

$

Currently unavailable

23

Homelite 02813

SPRING-Extension
(Superseded to UP07388)

$10.99

$

Usually ships in 3-7 days

0

24

Homelite 02508

ISOLATOR-Vibration
(Superseded to UP07433)

$

$

Not available

25

Homelite A03720A

ENGINE HOUSING-(Drive Side)
(Superseded to A03720B)

$

$

Not available

26

Homelite 00234

COVER-Snap On

$

$

Not available

27

Homelite A00226

DRIVE CASE COVER
(Superseded to A00226A)

$

$

Currently unavailable

28

Homelite 81196

NUT Hex (5/16"-18)
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

29

Homelite 84008

WASHER-Flat (#10)
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 01813

SLEEVE-Spring

$

$

Not available

31

Homelite 70810

NUT Square (#10-24)
(Superseded to UP06986)

$

$

Not available

32

Homelite 82562

SCREW-Pan Hd. (#10-24 X 7/8")
(Superseded to UP06535)

$

$

Not available

33

Homelite 84123

WASHER-Flat

$

$

Not available
