CS-490 - Echo Chainsaw (SN: C68315001001 - C68315999999) Recoil Starter Parts Diagram

Chainsaw

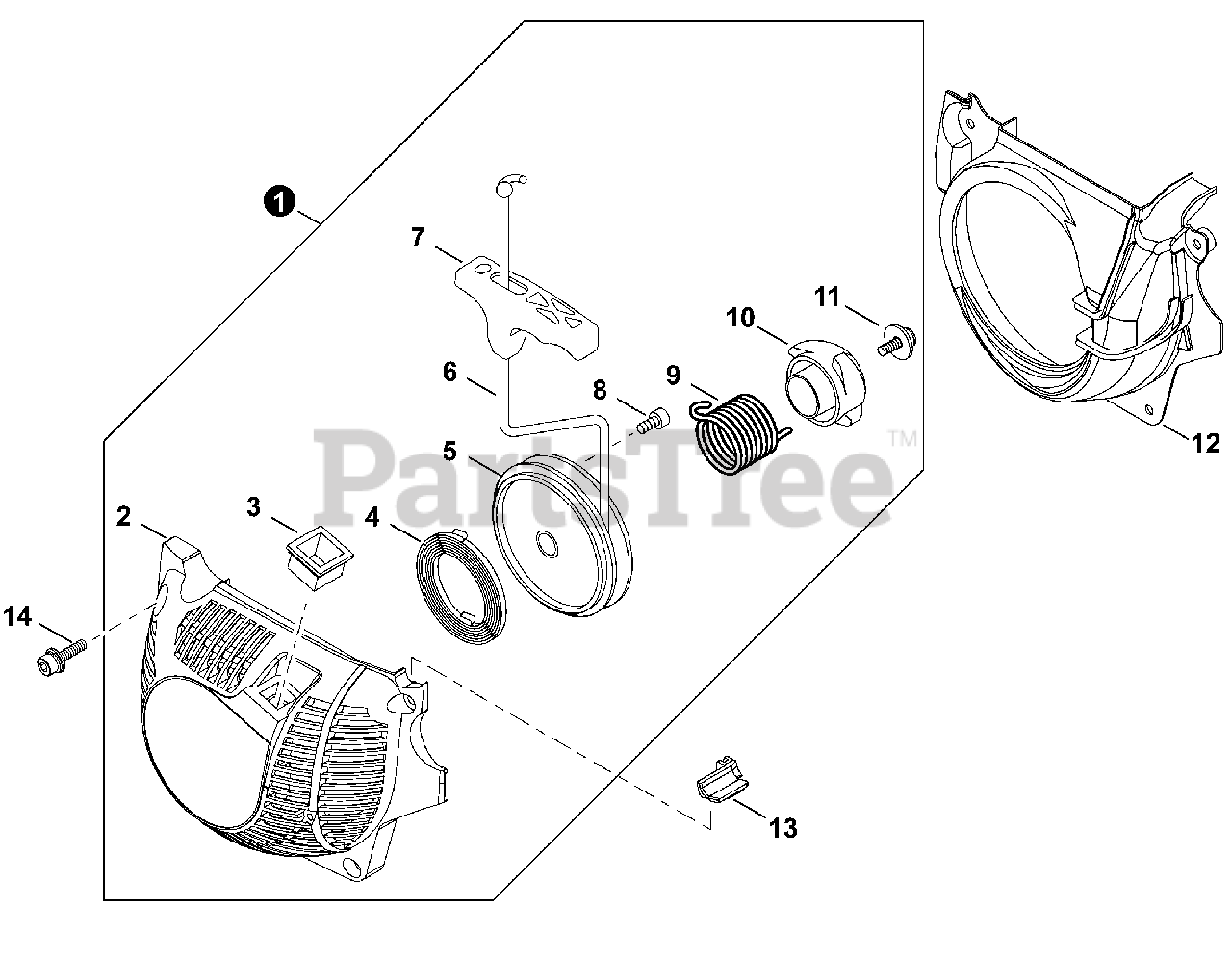

Recoil Starter Parts Diagram

  • Title
1

Echo A051003020

STARTER ASSY

Note: Includes Items 2-11

$100.99

$

In Stock, only 1 left!

0

2

Echo A500001320

CASE, STARTER

$26.99

$

In Stock, only 1 left!

0

3

Echo A510000130

GUIDE, ROPE

$3.99

$

Usually ships in 2-4 days

0

4

Echo A504000220

SPRING, RECOIL
(Superseded to P022006250)

$9.49

$

In Stock, only 1 left!

0

5

Echo A506000520

REEL, ROPE

$9.49

$

Usually ships in 2-4 days

0

6

Echo A509000380

ROPE, STARTER Ø3.8×750

$7.99

$

Usually ships in 2-4 days

0

7

Echo A511000230

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

8

Echo 90010504010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

9

Echo V452001530

SPRING, TORSION
(Superseded to P022036760)

$8.99

$

Usually ships in 2-4 days

0

10

Echo A507000160

PAWL CATCHER

$8.99

$

Usually ships in 2-4 days

0

11

Echo V253000640

SCREW 5

$1.99

$

Usually ships in 2-4 days

0

12

Echo A172001870

COVER, FAN

$5.99

$

Usually ships in 2-4 days

0

13

Echo V131000190

GROMMET, NEEDLE

$2.49

$

Usually ships in 2-4 days

0

14

Echo V202000200

BOLT M4×16

$1.99

$

In Stock, Qty 20+

0
