CS-490 - Echo Chainsaw (SN: C34312001001 - C34312999999) Recoil Starter Parts Diagram

Chainsaw

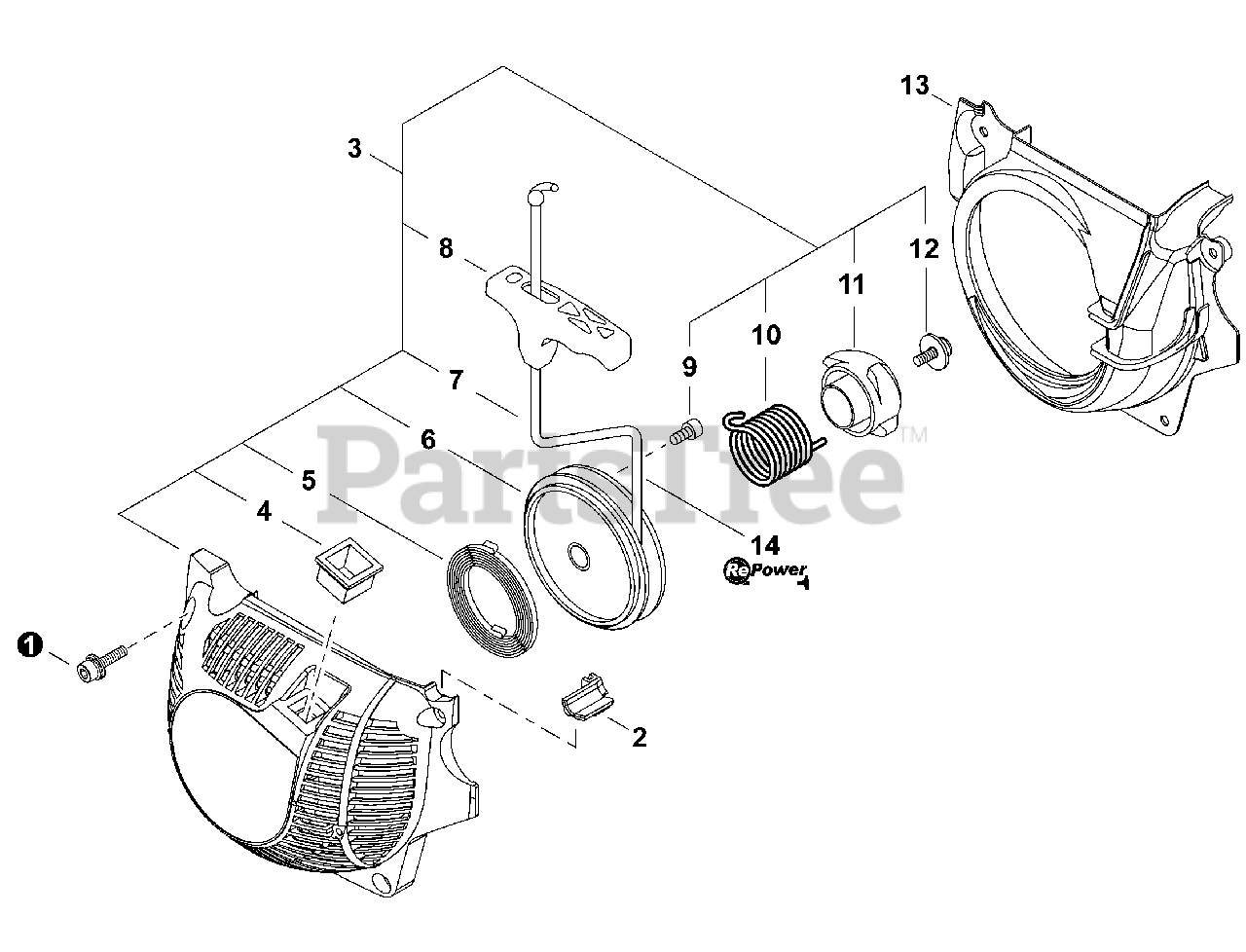

Recoil Starter Parts Diagram

  • Title
1

Echo V202000200

BOLT M4×16

$1.99

$

In Stock, Qty 20+

0

2

Echo V131000190

GROMMET, NEEDLE

$2.49

$

Usually ships in 2-4 days

0

3

Echo A051003020

STARTER ASSY, RECOIL

Note: Includes Items 4-12

$100.99

$

Usually ships in 2-4 days

0

4

Echo A510000130

GUIDE, ROPE

$3.99

$

Usually ships in 2-4 days

0

5

Echo A504000220

SPRING
(Superseded to P022006250)

$9.49

$

In Stock, only 1 left!

0

6

Echo A506000520

REEL, ROPE

$9.49

$

Usually ships in 2-4 days

0

7

Echo A509000380

ROPE, STARTER

$7.99

$

Usually ships in 2-4 days

0

8

Echo A511000230

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

9

Echo 90010504010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

10

Echo V452001530

SPRING, TORSION
(Superseded to P022036760)

$8.99

$

Usually ships in 2-4 days

0

11

Echo A507000160

PAWL CATCHER

$8.99

$

Usually ships in 2-4 days

0

12

$1.99

$

Usually ships in 2-4 days

0

13

Echo A172001870

COVER, FAN

$5.99

$

Usually ships in 2-4 days

0

14

Echo 99944445000

ROPE, STARTER - REPOWER BULK

$32.99

$

In Stock, only 1 left!

0
