CS-490 - Echo Chainsaw (SN: C34312001001 - C34312999999) Oil System Parts Diagram

Chainsaw

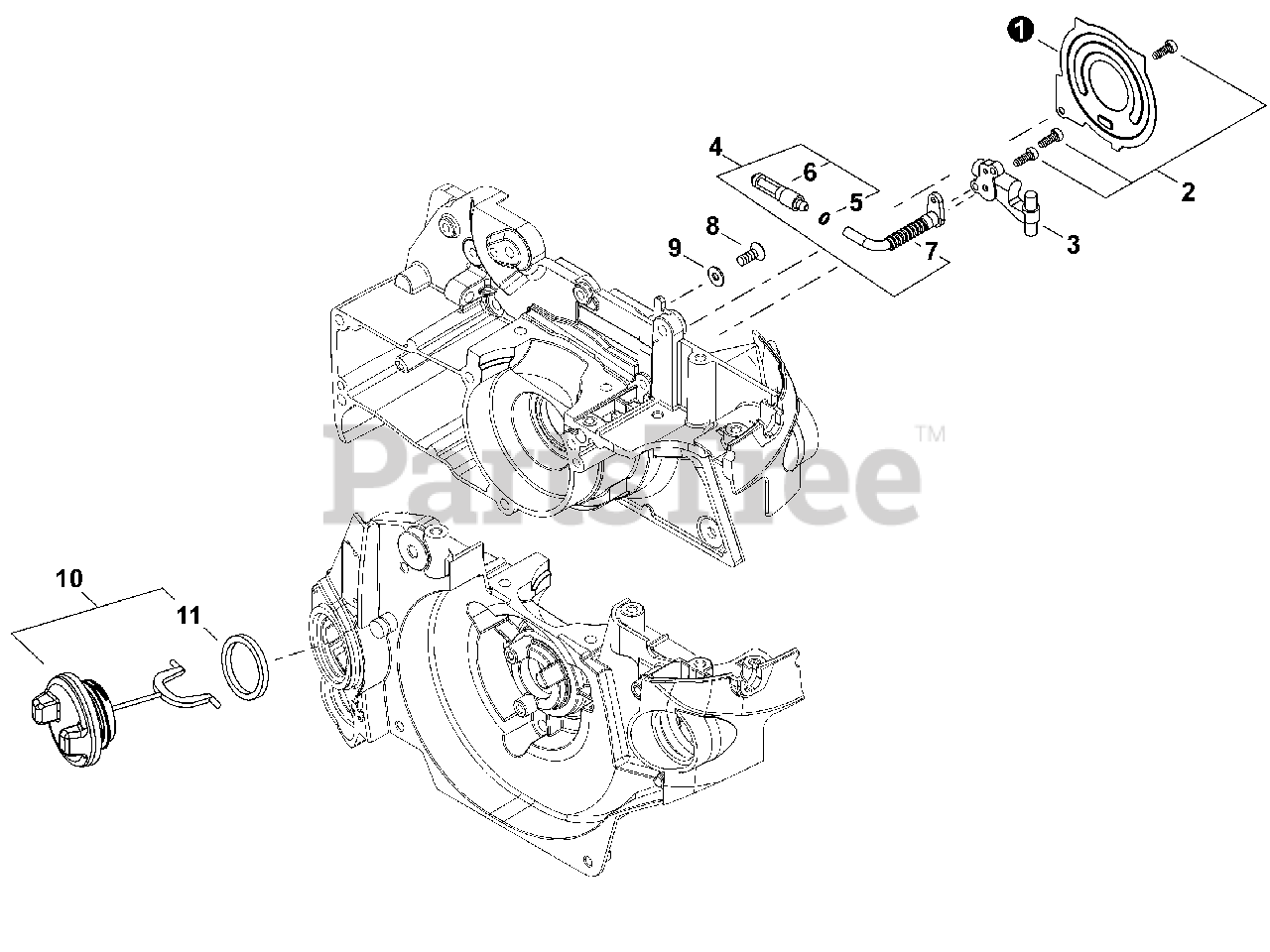

Oil System Parts Diagram

  • Title
1

Echo C236000060

COVER, OILER

$3.49

$

Usually ships in 2-4 days

0

2

Echo V202000520

BOLT, ADHESIVE M4×14

$1.99

$

Usually ships in 2-4 days

0

3

Echo C022000121

OIL PUMP ASSY

$63.99

$

In Stock, only 2 left!

0

4

Echo C021000050

FILTER, OIL ASSY

Note: Includes Items 5-7

$8.99

$

Usually ships in 2-4 days

0

5

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

6

Echo C209000070

FILTER, OIL

$6.99

$

Usually ships in 2-4 days

0

7

Echo V470001840

PIPE, OIL

$11.99

$

Usually ships in 2-4 days

0

8

Echo 90021204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

9

Echo 90060300004

WASHER 4mm

$0.99

$

In Stock, Qty 9

0

10

Echo C020000040

CAP ASSY, OIL

Note: Includes Item 11

$9.49

$

In Stock, only 4 left!

0

11

Echo V107000090

GASKET, CAP
(Superseded to V107000180)

$2.49

$

In Stock, only 3 left!

0
