CS 470 (41ADA5CC812) - Cub Cadet String Trimmer Engine Assembly Parts Diagram

String Trimmer

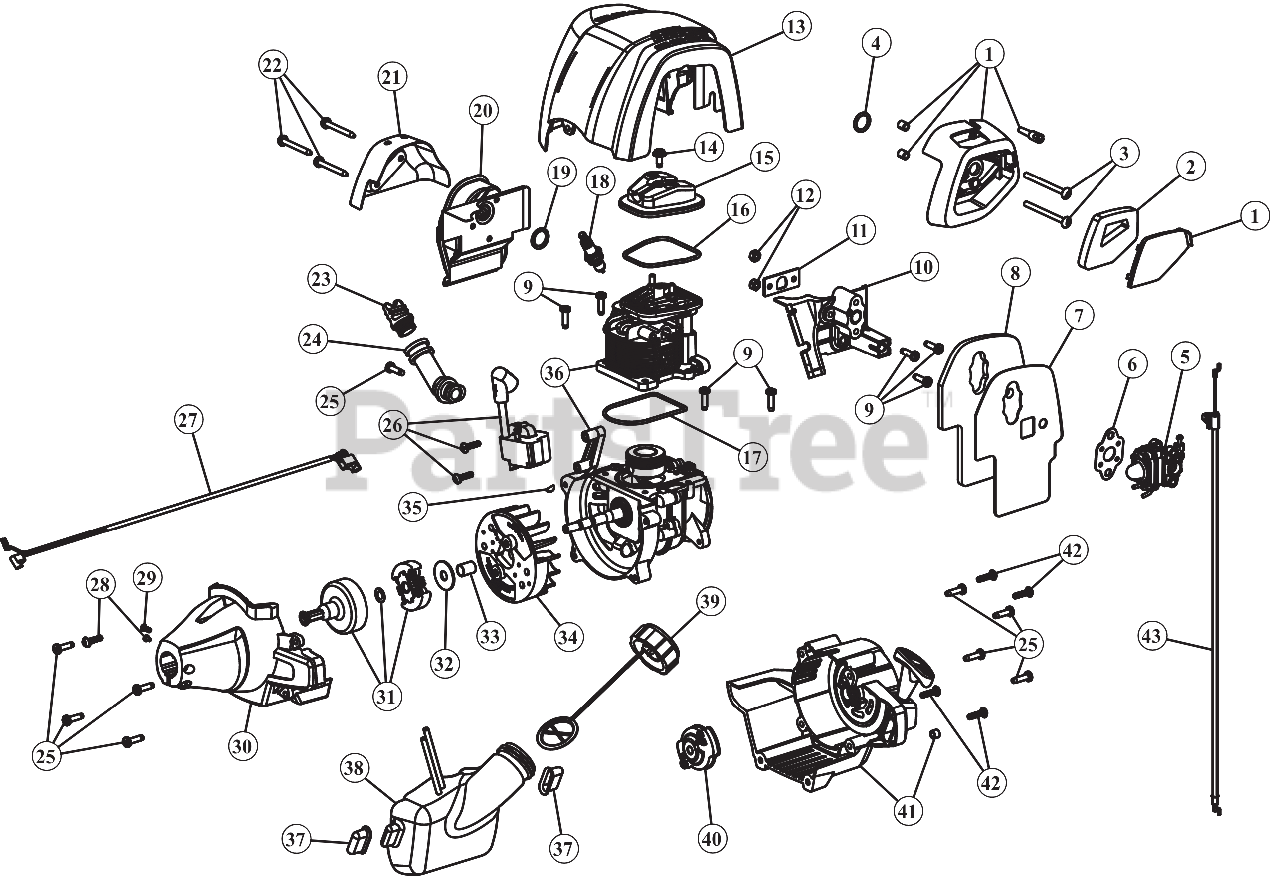

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-08380

AIR CLEANER ASSEMBLY

Note: (Incl. 2 & 3)

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-06085

AIR FILTER

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet 753-06939

SCREW 10-32X3

$3.49

$

In Stock, only 3 left!

0

4

Cub Cadet 791-181751

O-RING

$4.49

$

In Stock, Qty 19

0

5

Cub Cadet 753-06083

CARBURETOR ASSEMBLY

$52.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 721-04616

CARBURETOR GASKET

$2.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-06122

HEAT SHLD CARB AC5

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-181003

SCREW, M5 x 18.7MM
(Superseded to 9052-1)

$

$

Not available

10

Cub Cadet 731-08964

INSULATOR

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05673

INSULATOR GASKET

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04099

NUT 10-32

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-06960

ENGINE COVER TOP

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-05902

O-RING

$5.49

$

In Stock, Qty 11

0

17

Cub Cadet 753-05910

O-RING CYL AC5

$3.49

$

In Stock, only 1 left!

0

18

Cub Cadet 794-00098

SPARK PLUG 10MM:EM

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 8

0

20

Cub Cadet 753-06334

MUFFLER ASSEMBLY AC5.1

$17.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-06101

MUFFLER SHLD

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, Qty 5

0

23

Cub Cadet 753-05400

OIL PLUG ASSEMBLY
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

24

Cub Cadet 753-06087

OIL FILL TUBE

Note: (Incl. 25)

$6.49

$

In Stock, Qty 7

0

25

Cub Cadet 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 753-08450

MODULE ASSEMBLY INT

$43.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-08253

WIRE LEAD W/SUPPR

$15.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 753-04291

SCREW:CLMPNG W/NUT

$

$

Not available

29

Cub Cadet 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

30

Cub Cadet 753-06335

CLUTCH COVER

$5.49

$

In Stock, only 3 left!

0

31

Cub Cadet 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 9

0

32

Cub Cadet 9162-1

WASH, CLUTCH O.D. 1.155 +/- .0

$4.49

$

In Stock, only 3 left!

0

33

Cub Cadet 753-05814

SPACER .591"

$4.49

$

In Stock, Qty 7

0

34

Cub Cadet 753-09584

FLYWHEEL W/KEY

Note: (Incl. 35)

$25.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0

36

Cub Cadet 753-06494

SHORT BLOCK

Note: (Incl. 9, 14 - 18, 26, 33 - 35)

$130.99

$

In Stock, only 1 left!

0

37

Cub Cadet 753-05259

FUEL TANK PADS

$6.99

$

In Stock, Qty 20+

0

38

Cub Cadet 753-06093

FUEL TANK ASSEMBLY

$23.99

$

In Stock, only 1 left!

0

39

Cub Cadet 753-04084

FUEL CAP ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 753-06091

PAWL ASSEMBLY AC5

$9.49

$

In Stock, only 3 left!

0

41

Cub Cadet 753-08449

STARTER HOUSING ASSEMBLY

$27.99

$

In Stock, only 1 left!

0

42

Cub Cadet 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 753-06166

THROTTLE CABLE

$15.99

$

In Stock, only 1 left!

0
