CS 464 M (24A-464M700) - Yard Machines Chipper Shredder (2017) Impeller Breakdown Parts Diagram
Chipper Shredder

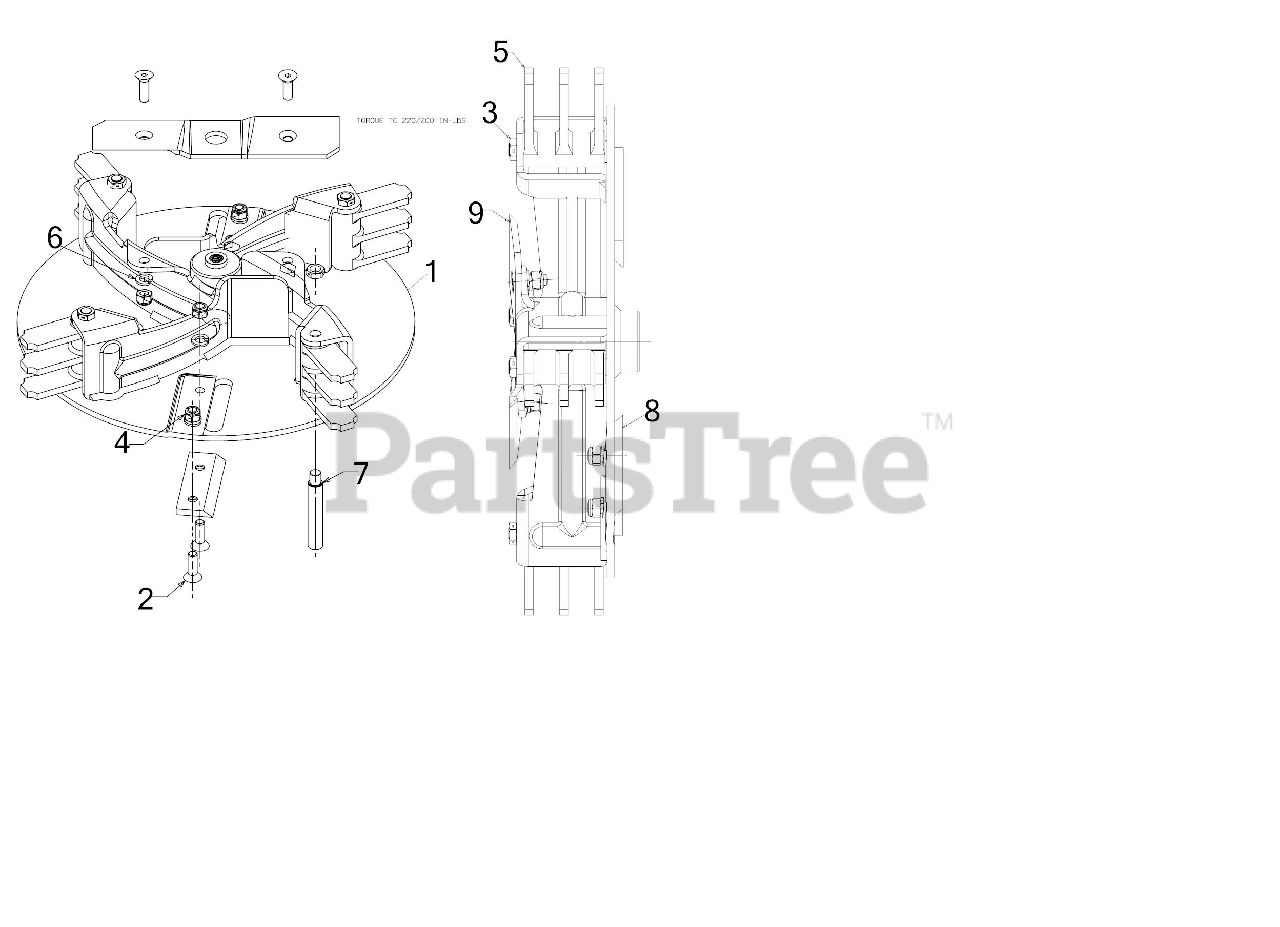

Impeller Breakdown Parts Diagram
1
IMPELLER WELDMENT
$
$
Not available
MTD 710-1054
SCREW 5/16-24 x 1
$4.49
$
In Stock, Qty 20+
MTD 712-0266A
JAM LOCK NUT
$3.99
$
In Stock, Qty 20+
$
$
Not available
MTD 719-04308
FLAIL BLADE
$18.99
$
In Stock, Qty 20+
MTD 936-0119
LOCK WASHER 5/16
$4.99
$
In Stock, Qty 20+
MTD 738-04286A
SHOULDER PIN
$4.99
$
In Stock, Qty 11
MTD 942-0544B
CHIPPER BLADE
$89.99
$
In Stock, Qty 7
MTD 942-0571
SHREDDER BLADE
$37.99
$
In Stock, Qty 10
MTD 681-04095
IMPELLER ASSEMBLY
$458.99
$
Usually ships in 3-6 days
