CS 464 M (24A-464M700) - Yard Machines Chipper Shredder (2017) Impeller Parts Diagram

Chipper Shredder

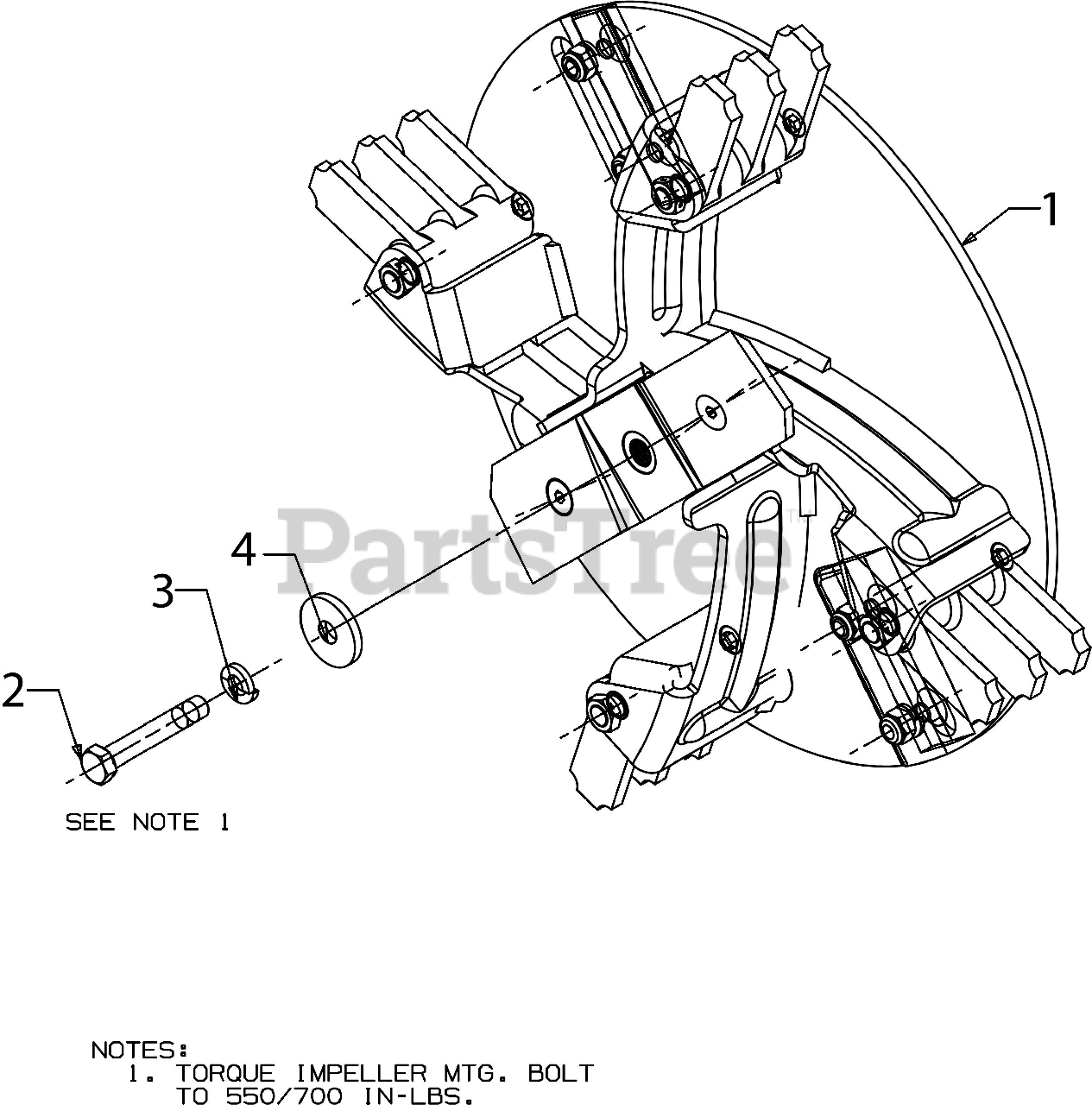

Impeller Parts Diagram

  • Title
1

MTD 681-04095

IMPELLER ASSEMBLY

Note: (See Separate Breakdown)

$458.99

$

Usually ships in 3-6 days

0

2

MTD 710-1254

SCREW 3/8-24X2.25 GR8

$7.99

$

In Stock, Qty 8

0

3

MTD 936-0217

LOCK WASHER 3/8HD
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

4

MTD 736-0247

FLAT WASHER

$9.49

$

In Stock, Qty 14

0
