CS 464 M (24A-464M700) - Yard Machines Chipper Shredder (2014) Chipper Shredder Chute & Wheels Parts Diagram

Chipper Shredder

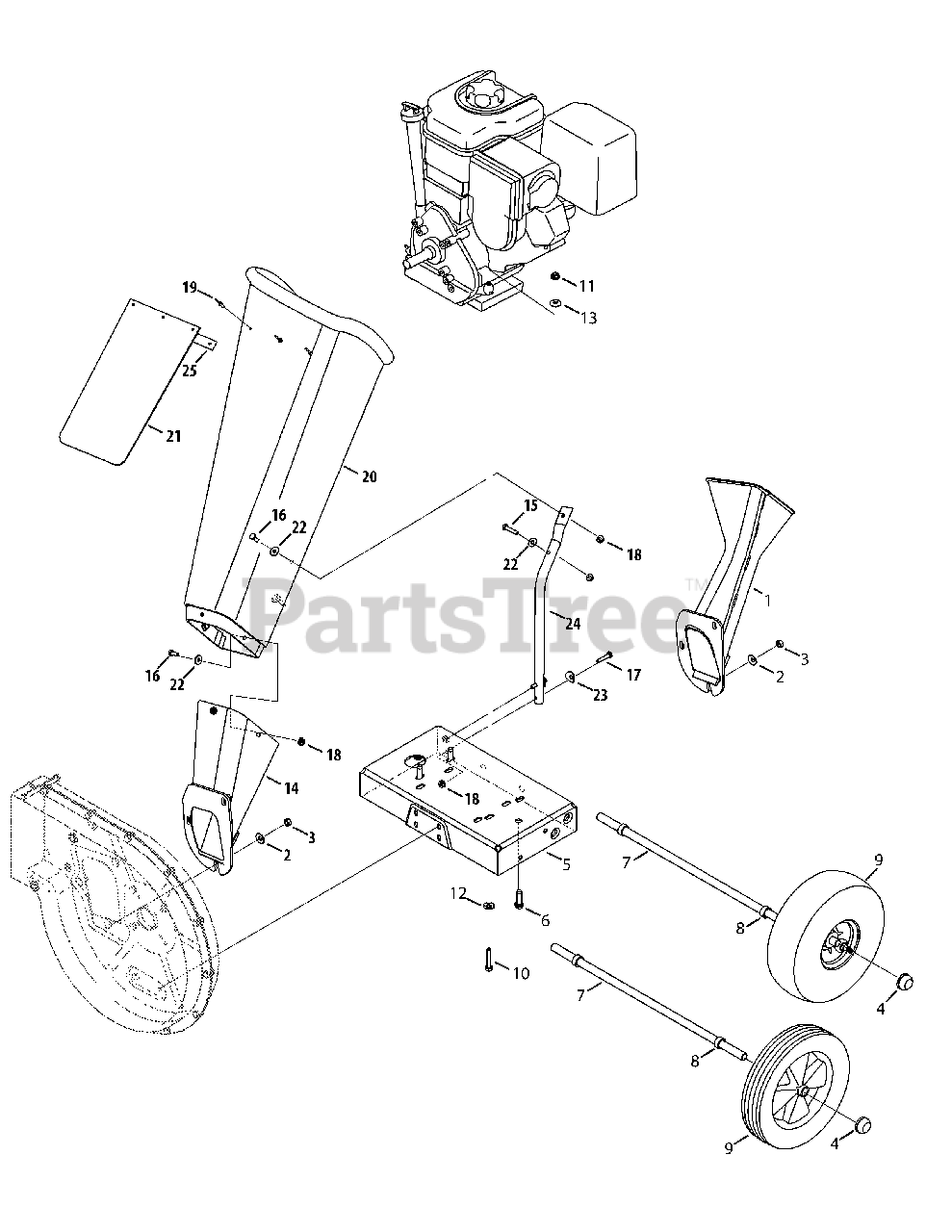

Chipper Shredder Chute & Wheels Parts Diagram

  • Title
1

MTD n/a

Chipper Shredder Chute

Note: Not used on this model

$

$

Currently unavailable

2

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

3

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

$117.99

$

Usually ships in 3-6 days

0

6

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

7

MTD 738-0813

Axle Assembly

$52.99

$

Usually ships in 3-6 days

0

8

MTD 950-0786

Spacer

$7.49

$

Usually ships in 3-6 days

0

9

MTD 934-04009

Wheel Comp., 10.0 x 4.0 Gray

$122.99

$

Usually ships in 3-6 days

0

10

MTD 710-0805

Hex Cap Screw 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 936-0170

Bell Washer 5/16 x 1.0
(Superseded to 736-0170)

$

$

Not available

13

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

14

MTD 681-04119-0638

Chipper Chute Assembly
(Superseded to 681-04119A-0638)

$119.99

$

Usually ships in 3-6 days

0

15

MTD 710-0106

Hex Cap Screw 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

16

MTD 710-0751

Hex Cap Screw 1/4 -20 x.620

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0809

Hex Cap Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

18

MTD 912-3027

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, Qty 6

0

20

MTD 753-05094

Chipper Shredder Chute

$146.99

$

In Stock, only 1 left!

0

21

MTD 735-0249A

Chute Flap

$24.99

$

Usually ships in 3-6 days

0

22

MTD 736-0173

Flat Washer.28 ID x.74 OD

$4.49

$

In Stock, Qty 20+

0

23

MTD 936-0451

Washer,.320 ID x.93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

24

MTD 749-1004-0637

Support Brace

$46.99

$

Usually ships in 3-6 days

0

25

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

MTD 964-04022

Chipper Bag Ass’y
(Superseded to 664P04022A)

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
