CS-4600 - Echo Chainsaw (SN: 0033241 - 9999999) Starter Parts Diagram

Chainsaw

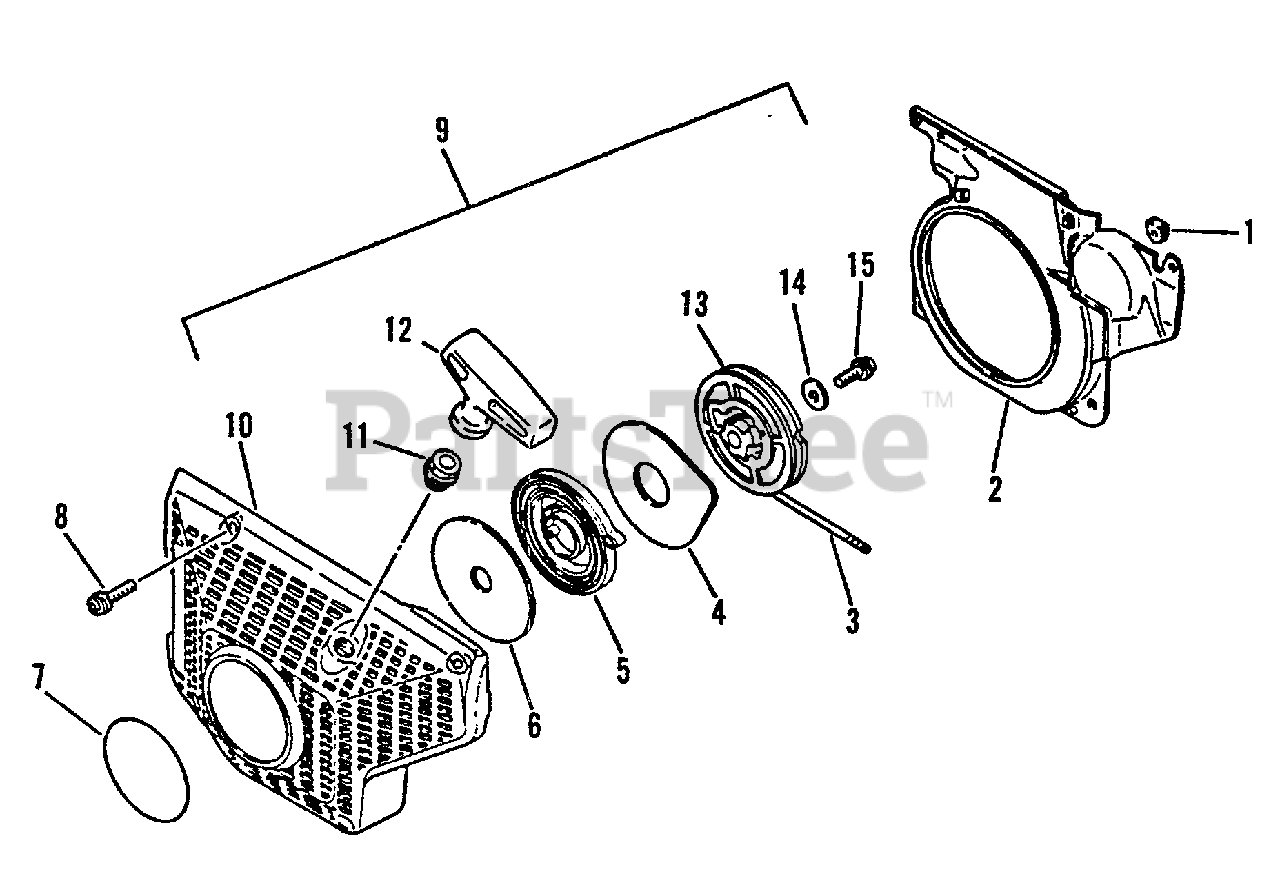

Starter Parts Diagram

  • Title

1

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

2

Echo 10153537630

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

3

Echo 17722619830

ROPE, STARTER - 3.5X960

$4.99

$

Usually ships in 2-4 days

0

4

Echo 17724203930

PLATE, STARTER

$

$

Not available

5

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

6

Echo 17722103930

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

7

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

8

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

9

Echo 17720037631

STARTER ASSY
(Superseded to 17720037632)

Note: INCLUDES ITEMS 3 - 6, 10 - 15

$

$

Not available

10

Echo 10150737630

CASE, STARTER
(Superseded to 10150737632)

$60.99

$

Usually ships in 2-4 days

0

11

Echo 17722705020

GUIDE, ROPE

$3.99

$

In Stock, Qty 5

0

12

Echo 17722819830

GRIP, STARTER

$4.99

$

Usually ships in 2-4 days

0

13

Echo 17721519830

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

14

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0
