CS-4600 - Echo Chainsaw (SN: 0033241 - 9999999) Ignition Parts Diagram

Chainsaw

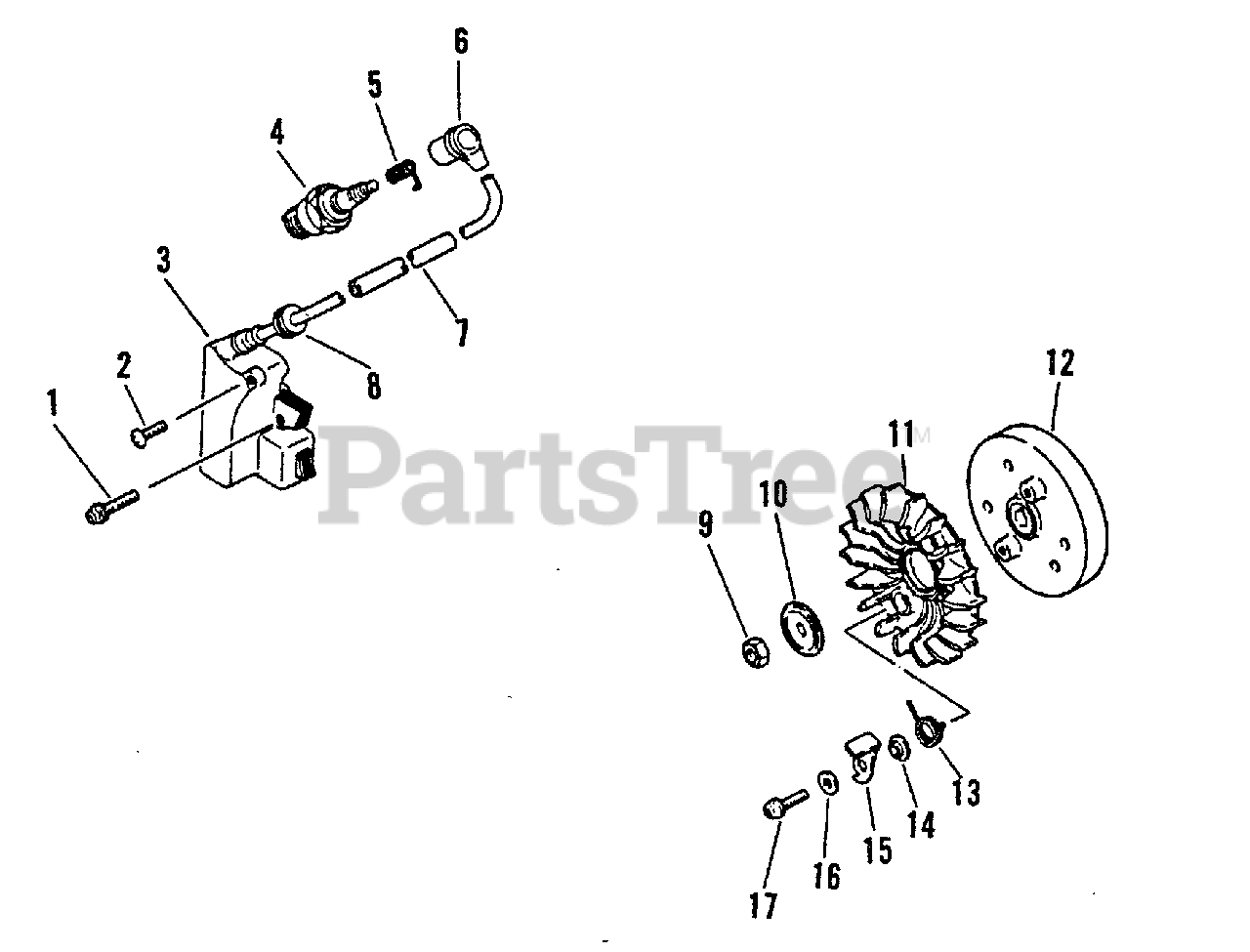

Ignition Parts Diagram

  • Title

1

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

3

Echo 15662630230

COIL, IGNITION
(Superseded to 15662639730)

$

$

Not available

4

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

5

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

6

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

7

Echo 15661119830

TUBE

$1.99

$

Usually ships in 2-4 days

0

8

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

9

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

10

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, only 4 left!

0

11

Echo 10152119830

FAN
(Superseded to Discontinued)

$

$

Not available

12

Echo 15680032630

FLYWHEEL
(Superseded to 15680032631)

$104.99

$

Usually ships in 2-4 days

0

13

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.49

$

In Stock, Qty 5

0

14

Echo 17724719830

SPACER

$1.99

$

Usually ships in 2-4 days

0

15

Echo 17721819830

PAWL, STARTER

$4.49

$

In Stock, only 2 left!

0

16

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0
