CS-4600 - Echo Chainsaw (SN: 0027192 - 0033240) Engine, Crankcase Parts Diagram

Chainsaw

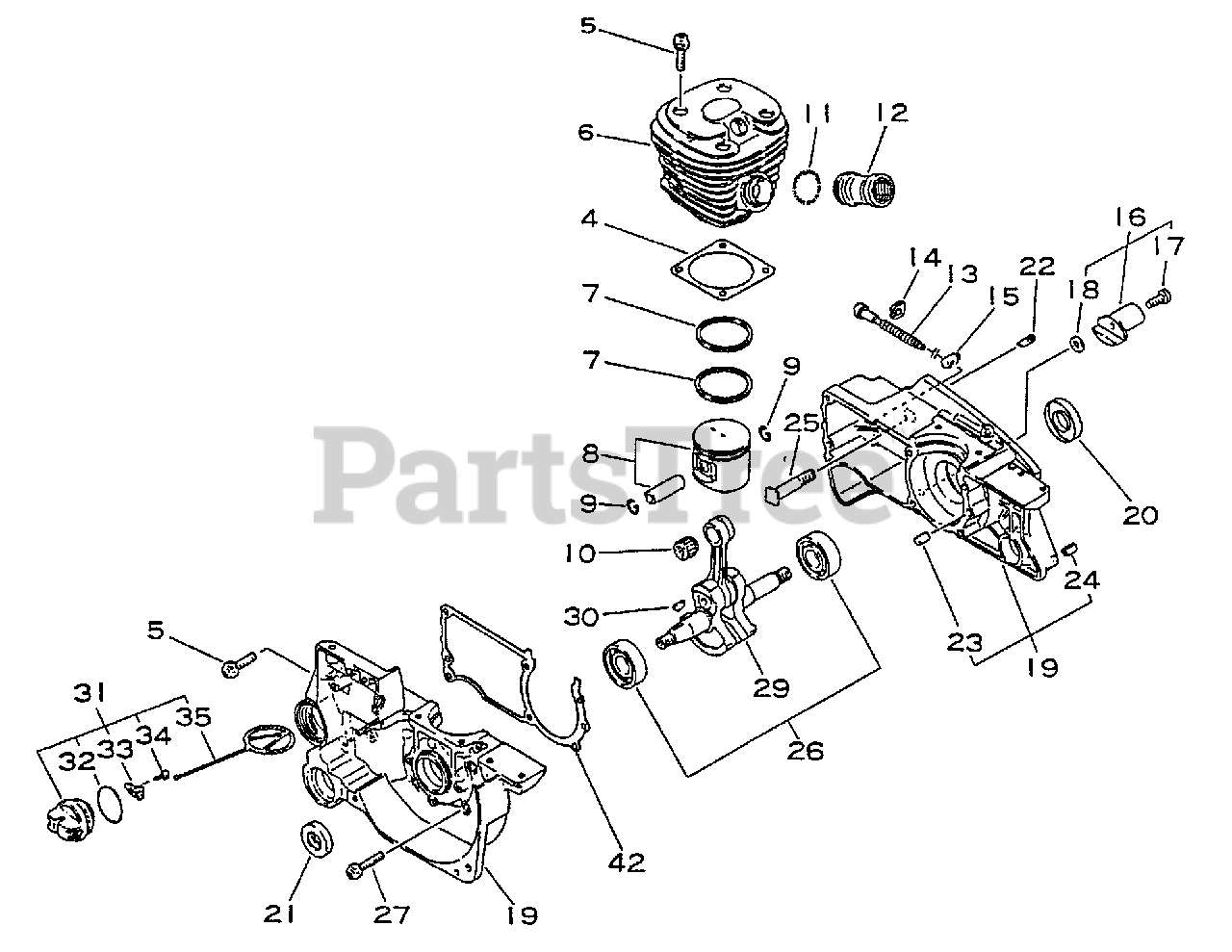

Engine, Crankcase Parts Diagram

  • Title
4

Echo 10101019831

GASKET, CYLINDER

$1.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo 10100533731

CYLINDER
(Superseded to 10100133731)

$

$

Not available

7

Echo 10001133730

RING, PISTON

$7.99

$

In Stock, only 3 left!

0

8

Echo 10000319930

PISTON KIT
(Superseded to 10000019930)

$

$

Not available

9

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

11

Echo 13051619830

BAND
(Superseded to Discontinued)

$

$

Not available

12

Echo 13051033330

ADAPTOR, INTAKE

$10.99

$

Usually ships in 2-4 days

0

13

Echo 43301619830

SCREW, TENSIONER

$5.49

$

In Stock, Qty 5

0

$0.99

$

In Stock, Qty 15

0

15

Echo 43301419830

TENSIONER, CHAIN

$4.99

$

In Stock, only 4 left!

0

16

Echo 43300033330

CHAIN CATCHER KIT

$1.49

$

In Stock, only 4 left!

0

17

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

18

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 10030119931

CRANKCASE KIT
(Superseded to 10020419931)

$

$

Not available

20

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

21

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

22

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

23

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

24

Echo 90034550010

PIN - SPRING -- 5X10

$1.49

$

Usually ships in 2-4 days

0

25

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

Usually ships in 2-4 days

0

26

Echo 10012119830

BEARING SET

$68.99

$

Usually ships in 2-4 days

0

42

Echo 10024219831

GASKET, CRANKCASE
(Superseded to 10024239730)

$7.49

$

In Stock, only 1 left!

0

27

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

29

Echo 10010019830

CRANKSHAFT ASSY
(Superseded to 10010033330)

$

$

Not available

10

Echo 10001219830

BEARING, NEEDLE

$11.99

$

In Stock, only 1 left!

0

$1.49

$

In Stock, Qty 11

0

31

Echo 43600119832

CAP ASSY
(Superseded to 43600137932)

$14.99

$

In Stock, only 1 left!

0

32

Echo 90072502025

O-RING - 25

$2.49

$

In Stock, only 2 left!

0

33

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

34

Echo 90024603008

SCREW - 3X8

$

$

Not available

35

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0
