CS-4600 - Echo Chainsaw (SN: 0001001 - 0027191) Intake, Exhaust Parts Diagram

Chainsaw

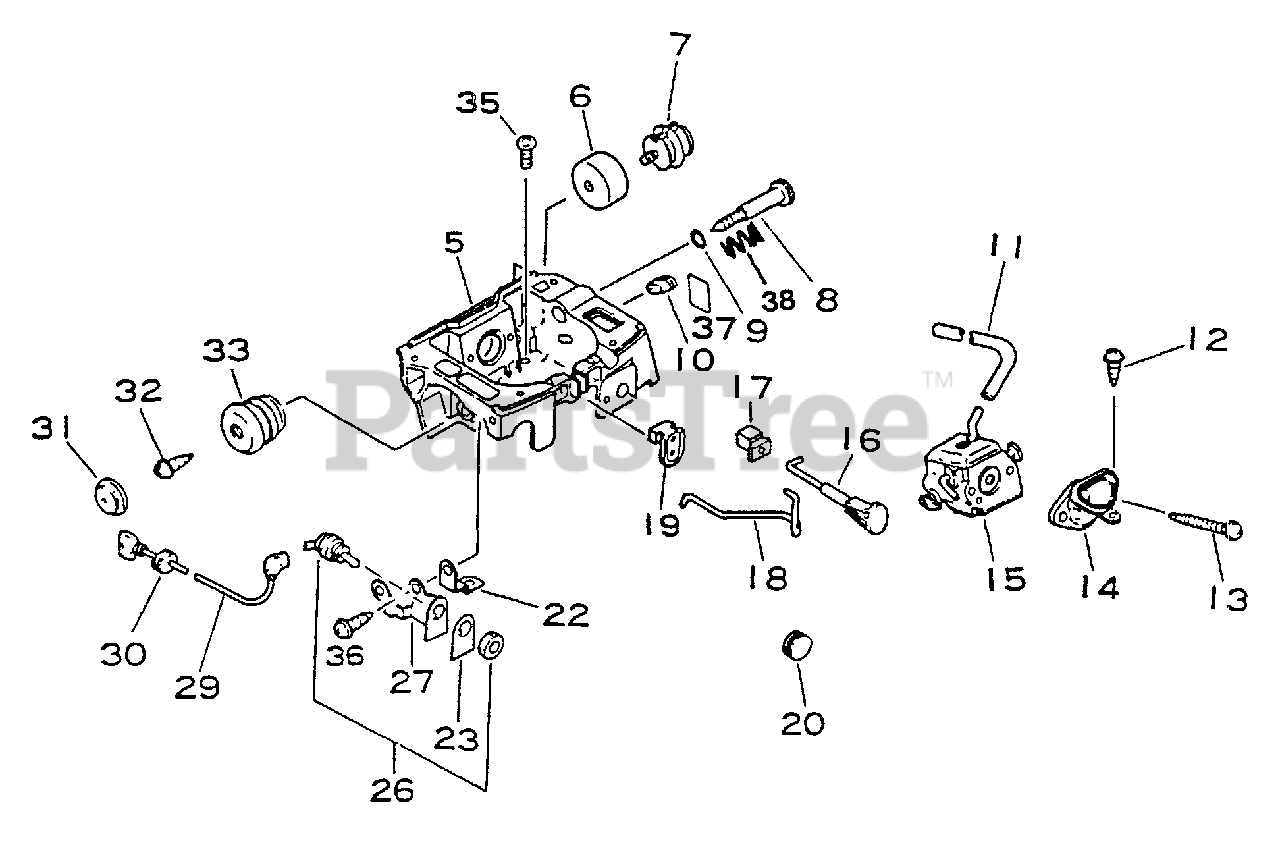

Intake, Exhaust Parts Diagram

  • Title
5

Echo 13030633730

CASE, CARBURETOR
(Superseded to 13030633731)

$74.99

$

Usually ships in 2-4 days

0

6

Echo 10092719830

PLATE, CUSHION

$4.49

$

Usually ships in 2-4 days

0

7

Echo 10090533330

CUSHION
(Superseded to 10090537530)

$

$

Not available

8

Echo 12901319830

SCREW, IDLE ADJUST

$3.49

$

Usually ships in 2-4 days

0

9

Echo 90072000006

O-RING - 6

$1.49

$

In Stock, only 3 left!

0

10

$1.99

$

Usually ships in 2-4 days

0

11

Echo 13011019830

PIPE - IMPULSE
(Superseded to 13011019831)

$2.99

$

Usually ships in 2-4 days

0

12

Echo 90024605014

SCREW - 5X14

$1.49

$

Usually ships in 2-4 days

0

13

Echo 90028505053

SCREW - 5X55

$2.49

$

Usually ships in 2-4 days

0

14

Echo 13051833330

GASKET
(Superseded to Discontinued)

$

$

Not available

15

Echo 12520033330

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

16

Echo 17851033330

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17881033330

GROMMET
(Superseded to 17881033331)

$1.49

$

In Stock, only 2 left!

0

18

Echo 17801133730

ROD, THROTTLE
(Superseded to 17801133731)

$5.49

$

Usually ships in 2-4 days

0

19

Echo 17811433730

GUIDE, THROTTLE ROD
(Superseded to 17811433731)

$

$

Not available

$1.99

$

Usually ships in 2-4 days

0

22

Echo 15663533330

TERMINAL - GROUND

$1.99

$

Usually ships in 2-4 days

0

23

Echo 89015730130

LABEL - SWITCH

$1.99

$

Usually ships in 2-4 days

0

26

Echo 16340030830

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

27

Echo 16381030130

BRACKET, SWITCH

$2.99

$

Usually ships in 2-4 days

0

29

Echo 16202230131

LEAD - GROUND

$3.99

$

Usually ships in 2-4 days

0

30

$0.99

$

In Stock, only 4 left!

0

31

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

32

$2.49

$

In Stock, Qty 5

0

33

Echo 10092119830

CUSHION
(Superseded to 10091719830)

$

$

Not available

35

Echo 90028105020

SCREW - 5X20
(Superseded to 90023805020)

$0.99

$

In Stock, only 3 left!

0

36

Echo 90024605010

SCREW - 5X10

$0.99

$

Usually ships in 2-4 days

0

37

Echo 89018503460

LABEL - IDLE

$0.99

$

Usually ships in 2-4 days

0

38

Echo 12533333330

SPRING, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0
