CS-4600 - Echo Chainsaw (SN: 0001001 - 0027191) Ignition Parts Diagram

Chainsaw

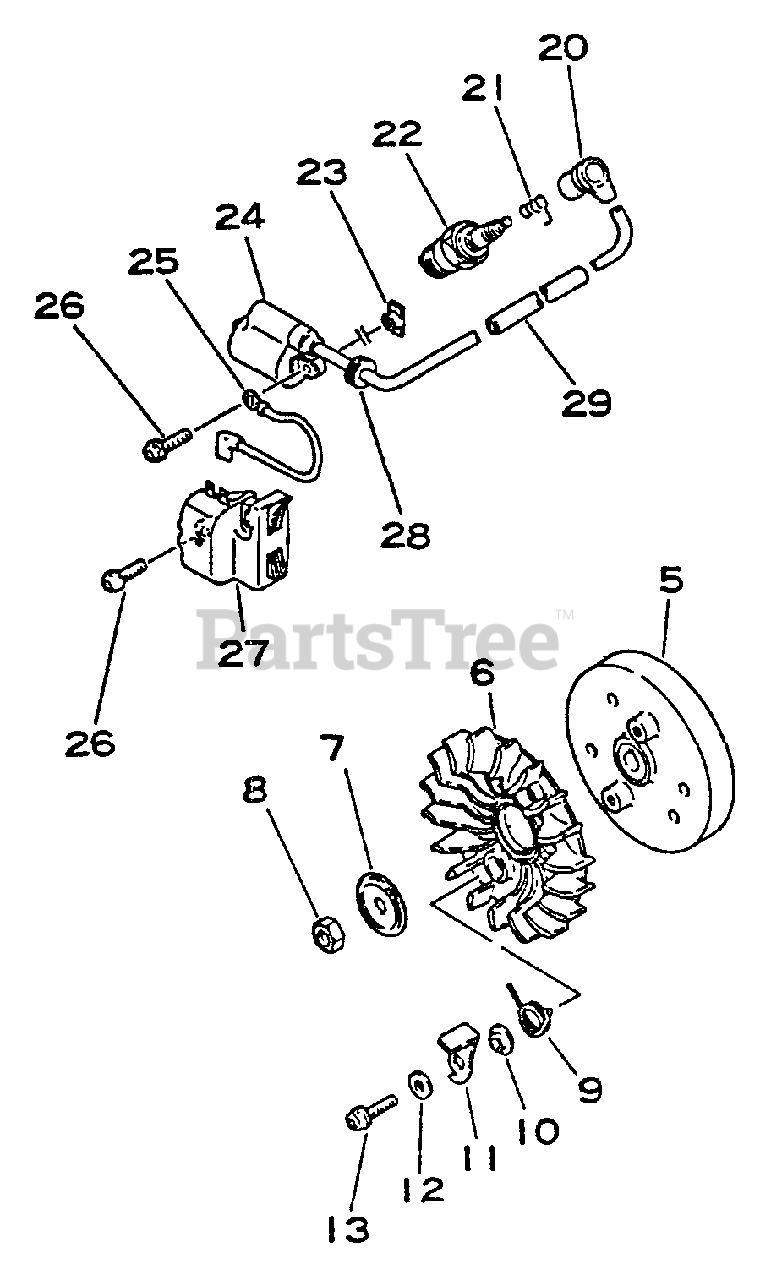

Ignition Parts Diagram

  • Title

5

Echo 15680030132

FLYWHEEL
(Superseded to 15680230130)

$

$

Not available

6

Echo 10152119830

FAN
(Superseded to Discontinued)

$

$

Not available

7

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, only 4 left!

0

8

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

9

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.49

$

In Stock, Qty 5

0

10

Echo 17724719830

SPACER

$1.99

$

Usually ships in 2-4 days

0

11

Echo 17721819830

PAWL, STARTER

$4.49

$

In Stock, only 2 left!

0

12

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90028105014

SCREW - 5X14
(Superseded to 90016205014)

$1.49

$

In Stock, Qty 20+

0

20

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

21

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

22

Echo 15901716431

SPARK PLUG -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

23

Echo 15661830130

NUT

$2.49

$

Usually ships in 2-4 days

0

24

Echo 15662630130

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

25

Echo 15663030130

LEAD

$7.49

$

Usually ships in 2-4 days

0

26

Echo 90028104020

SCREW - 4X20
(Superseded to 90016204020)

$1.49

$

In Stock, Qty 20+

0

27

Echo 15660130131

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

28

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

29

Echo 15061132430

TUBE
(Superseded to 15661119830)

$1.99

$

Usually ships in 2-4 days

0
