CS-4600 - Echo Chainsaw (SN: 0001001 - 0027191) Chain Brake Parts Diagram

Chainsaw

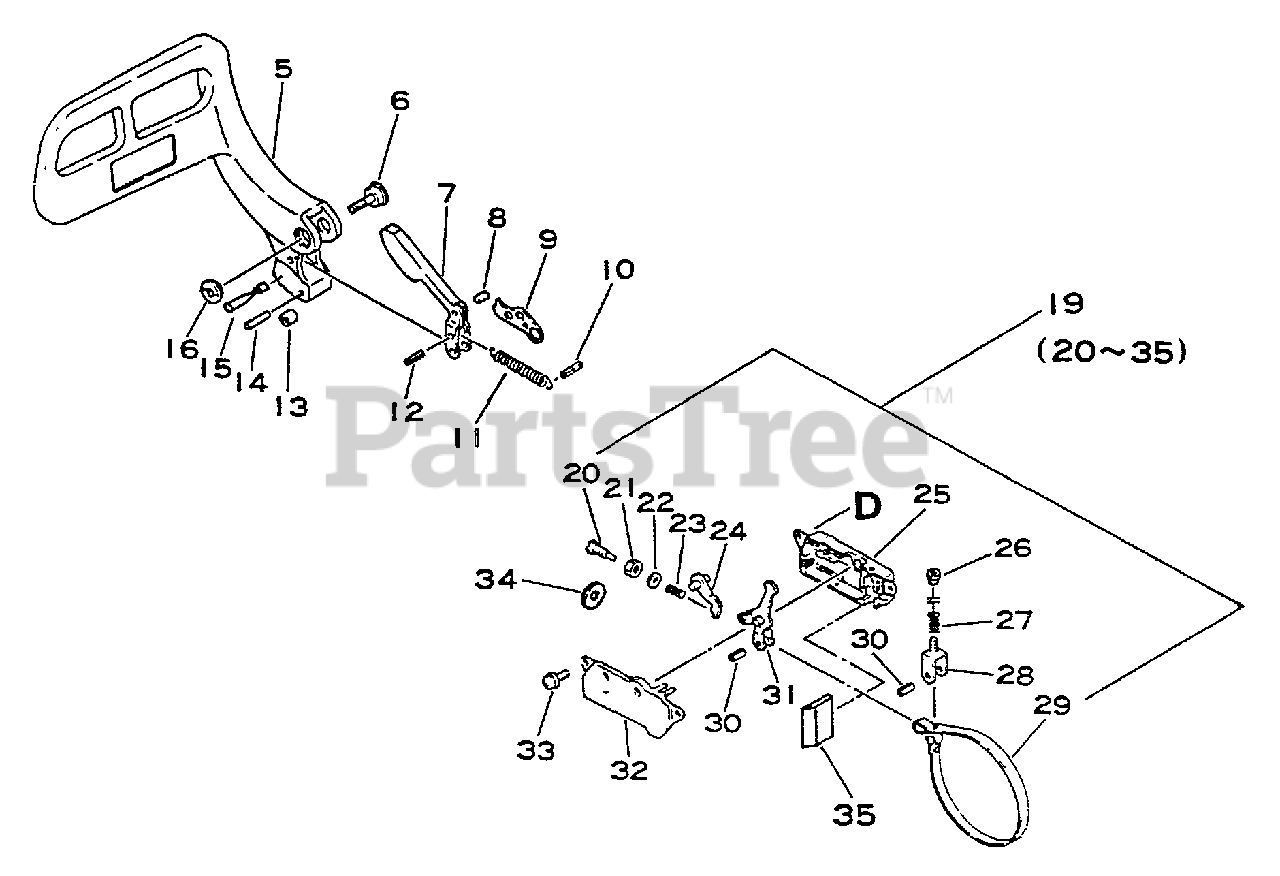

Chain Brake Parts Diagram

  • Title

Echo 43320130231

BRAKE LEVER ASSY
(Superseded to 43320130232)

$

$

Not available

5

Echo 43310530231

LEVER, BRAKE
(Superseded to 43310530232)

$

$

Not available

$4.99

$

Usually ships in 2-4 days

0

7

Echo 43317030130

WEIGHT, BRAKE

$12.99

$

In Stock, only 1 left!

0

8

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

9

Echo 43316332430

STOPPER
(Superseded to Discontinued)

$

$

Not available

10

Echo 90034530020

PIN - SPRING -- 3X20

$1.49

$

Usually ships in 2-4 days

0

11

Echo 43311430130

SPRING, RETURN

$2.49

$

Usually ships in 2-4 days

0

12

Echo 90034530012

PIN - SPRING -- 3X12

$3.49

$

In Stock, only 2 left!

0

13

Echo 43316819930

SPACER
(Superseded to Discontinued)

$

$

Not available

14

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

15

Echo 90033030240

PIN - 3X24

$0.99

$

In Stock, Qty 20+

0

$11.99

$

Usually ships in 2-4 days

0

19

Echo 43320230230

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

$0.99

$

Usually ships in 2-4 days

0

21

$0.99

$

In Stock, Qty 13

0

22

$0.99

$

In Stock, only 3 left!

0

23

Echo 43312219930

SPRING, BRAKE

$1.99

$

Usually ships in 2-4 days

0

24

Echo 43320919930

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

25

Echo 43330619930

COVER, BRAKE

$10.99

$

Usually ships in 2-4 days

0

$5.49

$

Usually ships in 2-4 days

0

27

$0.99

$

In Stock, only 1 left!

0

28

Echo 43314219931

ADJUSTER, BRAKE BAND

$3.49

$

Usually ships in 2-4 days

0

29

Echo 43312319930

BAND, BRAKE
(Superseded to Discontinued)

$

$

Not available

30

Echo 90034540010

PIN - SPRING

$2.49

$

In Stock, only 1 left!

0

31

Echo 43320830230

LEVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

32

Echo 43331019931

COVER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

33

Echo 90028104010

SCREW - 4X10
(Superseded to 90016204010)

$1.49

$

In Stock, Qty 20+

0

34

Echo 90061700005

WASHER - 5

$0.99

$

Usually ships in 2-4 days

0

$1.49

$

Usually ships in 2-4 days

0
