CS-4510 - Echo Chainsaw (SN: C84829001001 - C84829999999) Fuel System Parts Diagram

Chainsaw

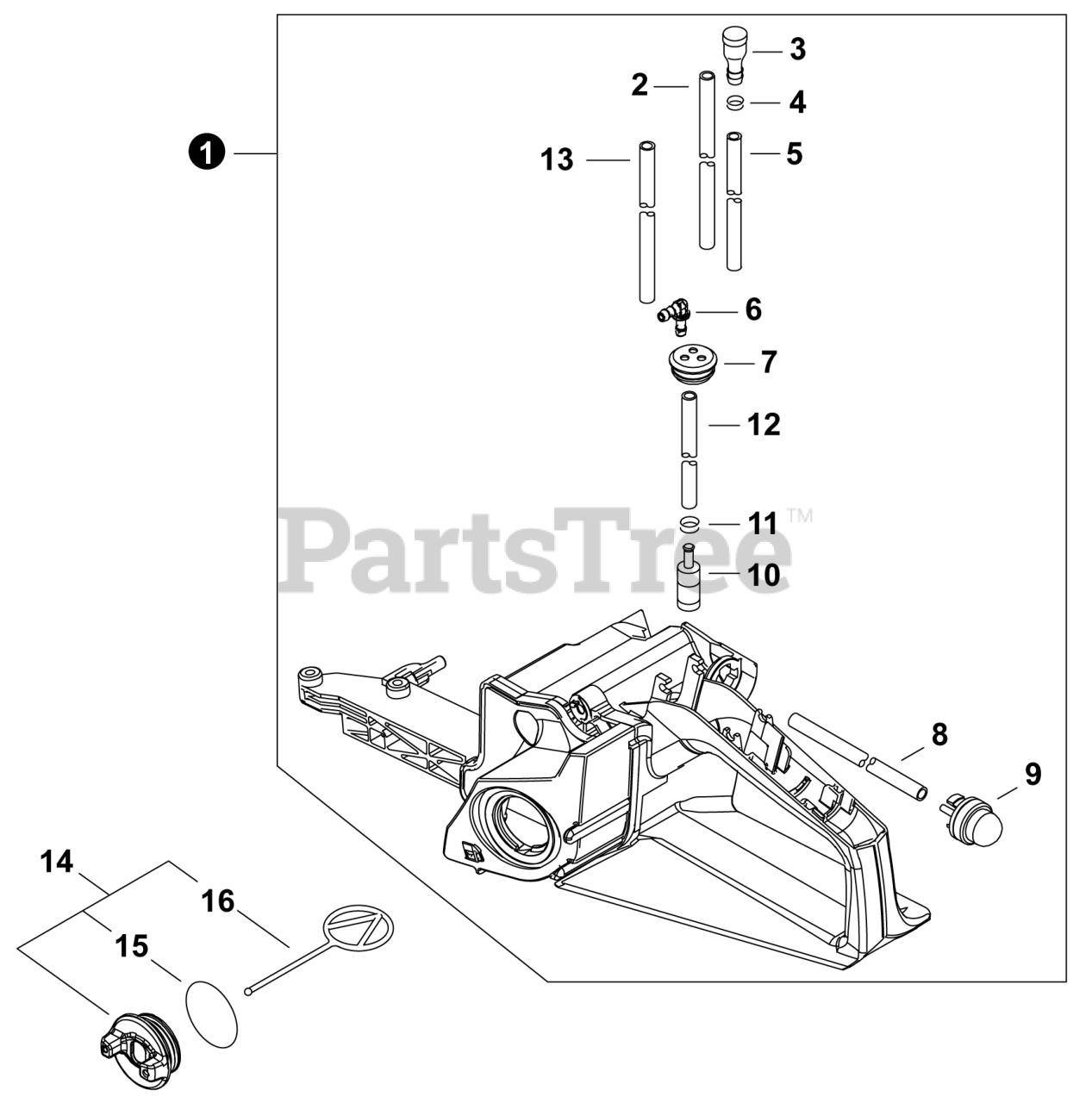

Fuel System Parts Diagram

  • Title

1

Echo P100004905

HANDLE ASSY, REAR
(Superseded to P100004906)

Note: Includes Items 2-13

$96.99

$

Usually ships in 2-4 days

0

2

Echo V471001291

PIPE, FUEL 2.4x5x75

$2.49

$

Usually ships in 2-4 days

0

3

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

4

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471005191

PIPE 3x6x49

$2.49

$

Usually ships in 2-4 days

0

6

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 16

0

7

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

8

Echo V471005211

PIPE 2.4x5x165

$4.49

$

In Stock, only 1 left!

0

9

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

10

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

11

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

12

Echo V471002381

PIPE, FUEL RETURN

$1.99

$

In Stock, only 3 left!

0

13

Echo V471005281

PIPE 3x5x160 EPA-KEP-002

$5.49

$

Usually ships in 2-4 days

0

14

Echo P100004891

CAP ASSY, FUEL

Note: Includes Items 15-16

$5.99

$

Usually ships in 2-4 days

0

15

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

16

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
