CS-4510 - Echo Chainsaw (SN: C71315001001 - C71315999999) Oil System Parts Diagram

Chainsaw

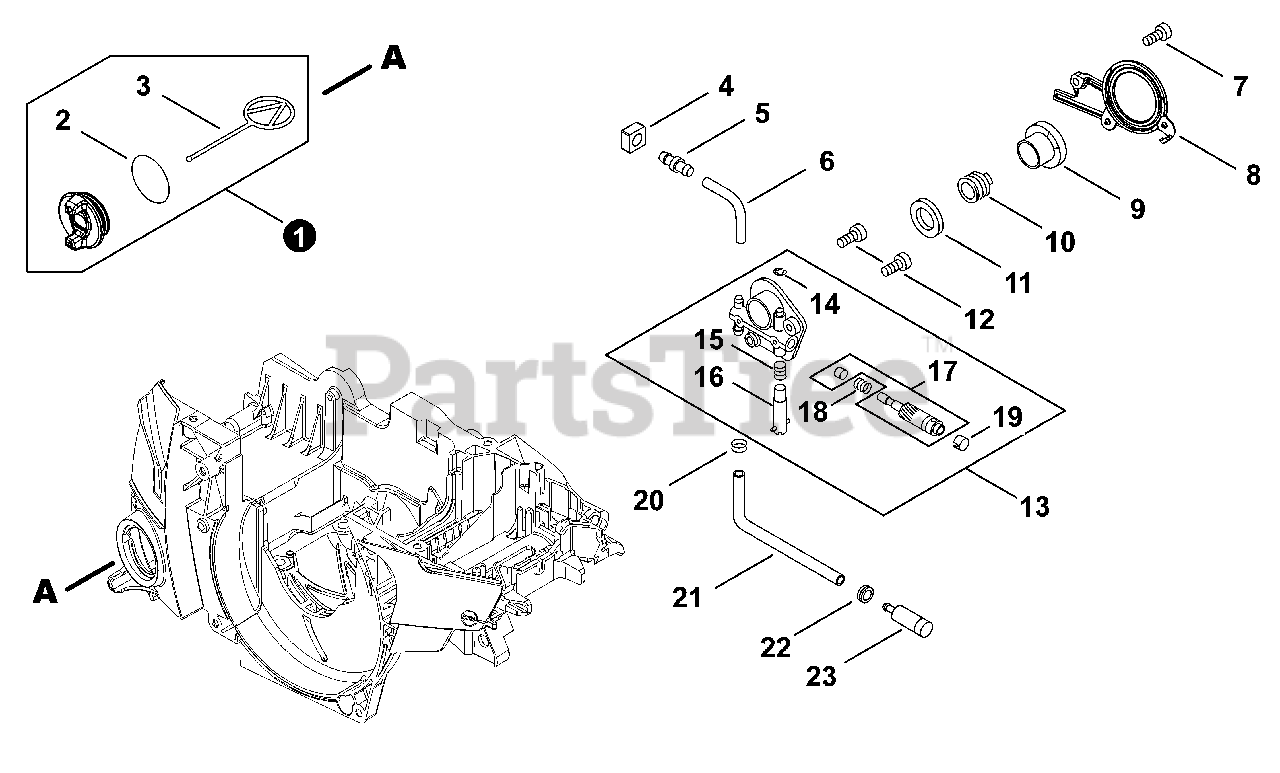

Oil System Parts Diagram

  • Title

1

Echo P100004880

CAP ASSY, OIL
(Superseded to P100004881)

Note: Includes Items 2-3

$12.99

$

In Stock, only 2 left!

0

2

Echo 90072020029

O-RING 29

$3.49

$

Usually ships in 2-4 days

0

3

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

4

Echo A203000090

SEAL

$1.99

$

Usually ships in 2-4 days

0

5

Echo V187000010

CONNECTOR, PIPE

$4.99

$

Usually ships in 2-4 days

0

6

Echo V471005190

PIPE 3×6×49

$2.49

$

Usually ships in 2-4 days

0

7

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

8

Echo C236000160

COVER, OILER

$1.99

$

Usually ships in 2-4 days

0

9

Echo V356000390

COLLAR 10

$3.49

$

In Stock, only 2 left!

0

10

Echo V652000030

GEAR, WORM

$11.99

$

Usually ships in 2-4 days

0

11

Echo V308000030

WASHER 10.5×17.4×1.8

$2.99

$

In Stock, only 2 left!

0

12

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

13

Echo C022000010

AUTO-OILER ASSY

Note: Includes Items 14-19

$49.99

$

In Stock, Qty 7

0

14

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 9

0

15

Echo P022010670

SPRING

$1.99

$

In Stock, only 4 left!

0

16

Echo P022010680

ADJUSTER, OILER

$7.49

$

In Stock, only 1 left!

0

17

Echo P022010650

PLUNGER ASSY

$11.99

$

In Stock, only 1 left!

0

18

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

19

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 9

0

20

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

21

Echo V471005200

PIPE 3×6×200

$4.49

$

Usually ships in 2-4 days

0

22

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

23

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0
