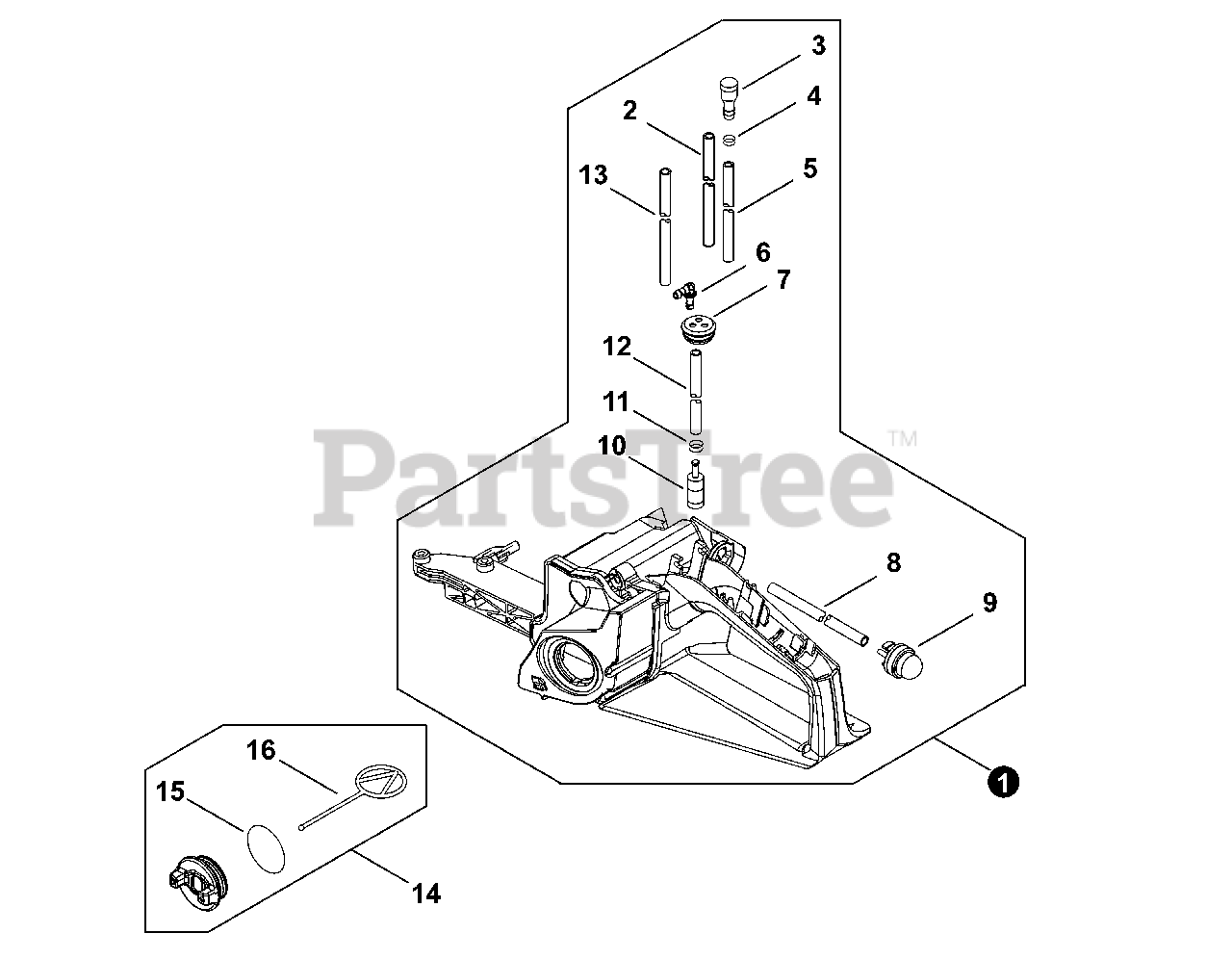

CS-4510 - Echo Chainsaw (SN: C71315001001 - C71315999999) Fuel System Parts Diagram

Chainsaw

Fuel System Parts Diagram

  • Title

1

Echo P100004905

HANDLE ASSY, REAR

Note: Includes Items 2-13

$133.99

$

Usually ships in 2-4 days

0

2

Echo V471001290

PIPE, FUEL 2.4×5×75

$2.49

$

Usually ships in 2-4 days

0

3

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471005190

PIPE 3×6×49

$2.49

$

Usually ships in 2-4 days

0

6

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 16

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

8

Echo V471005210

PIPE 2.4×5×165

$4.49

$

In Stock, only 1 left!

0

9

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

10

Echo A369000420

FILTER, FUEL

$8.99

$

In Stock, only 4 left!

0

11

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

12

Echo V471002380

PIPE, FUEL RETURN
(Superseded to V471002381)

$1.99

$

In Stock, only 3 left!

0

13

Echo V471005280

PIPE 3×5×160 EPA-KEP-002

$5.49

$

Usually ships in 2-4 days

0

14

Echo P100004890

CAP ASSY, FUEL

Note: Includes Items 15-16

$12.99

$

Usually ships in 2-4 days

0

15

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

16

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
