CS-451 VL - Echo Chainsaw Fuel Tank And Oil Tank Parts Diagram

Chainsaw

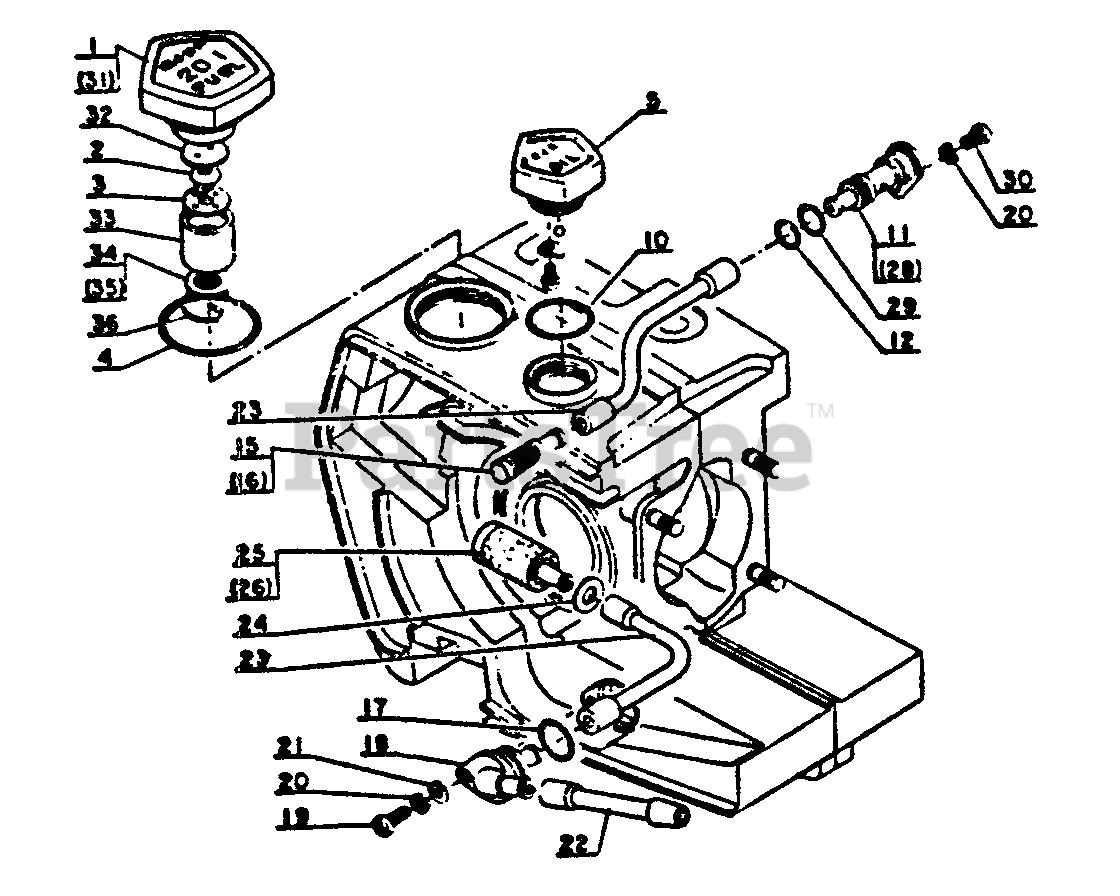

Fuel Tank And Oil Tank Parts Diagram

  • Title

Echo 13100103430

CAP ASSY
(Superseded to 13160003431)

$

$

Not available

1

Echo 13101703431

CAP
(Superseded to 13160003431)

$

$

Not available

2

Echo 13131400330

VENT

$11.99

$

In Stock, only 1 left!

0

3

Echo 13101503430

HOLDER, VENT

$3.49

$

In Stock, only 2 left!

0

4

Echo 13103003930

SPACER

$2.49

$

In Stock, only 1 left!

0

5

Echo 43600002832

CAP, OIL TANK
(Superseded to 43600003930)

$

$

Not available

10

Echo 43601200230

GASKET, CAP
(Superseded to 90072000018)

$1.99

$

In Stock, Qty 20+

0

11

Echo 43730603430

CONNECTOR, PIPE
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

12

Echo 43723603430

O-RING
(Superseded to 90072000008)

$

$

Not available

15

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

16

------------------

N/A

$

$

Not available

17

Echo 21251701110

O-RING
(Superseded to 90072000012)

$1.49

$

In Stock, only 2 left!

0

18

Echo 13201103431

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

19

Echo 90022004014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

20

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

21

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

22

Echo 13201203431

PIPE - FUEL -- OUTER
(Superseded to 13201803431)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

23

Echo 13201003930

PIPE
(Superseded to Discontinued)

$

$

Not available

24

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

25

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

26

------------------

N/A

$

$

Not available

28

------------------

N/A

$

$

Not available

29

Echo 40011601110

O-RING
(Superseded to 90072000009)

$

$

Not available

30

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

31

------------------

N/A

$

$

Not available

32

Echo 13103103430

SPACER

$3.49

$

Usually ships in 2-4 days

0

33

Echo 13103003930

SPACER

$2.49

$

In Stock, only 1 left!

0

34

Echo 13103503431

FILTER
(Superseded to Discontinued)

$

$

Not available

35

------------------

N/A

$

$

Not available

36

Echo 13103203930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0
