CS-451 VL - Echo Chainsaw Crankcase Parts Diagram

Chainsaw

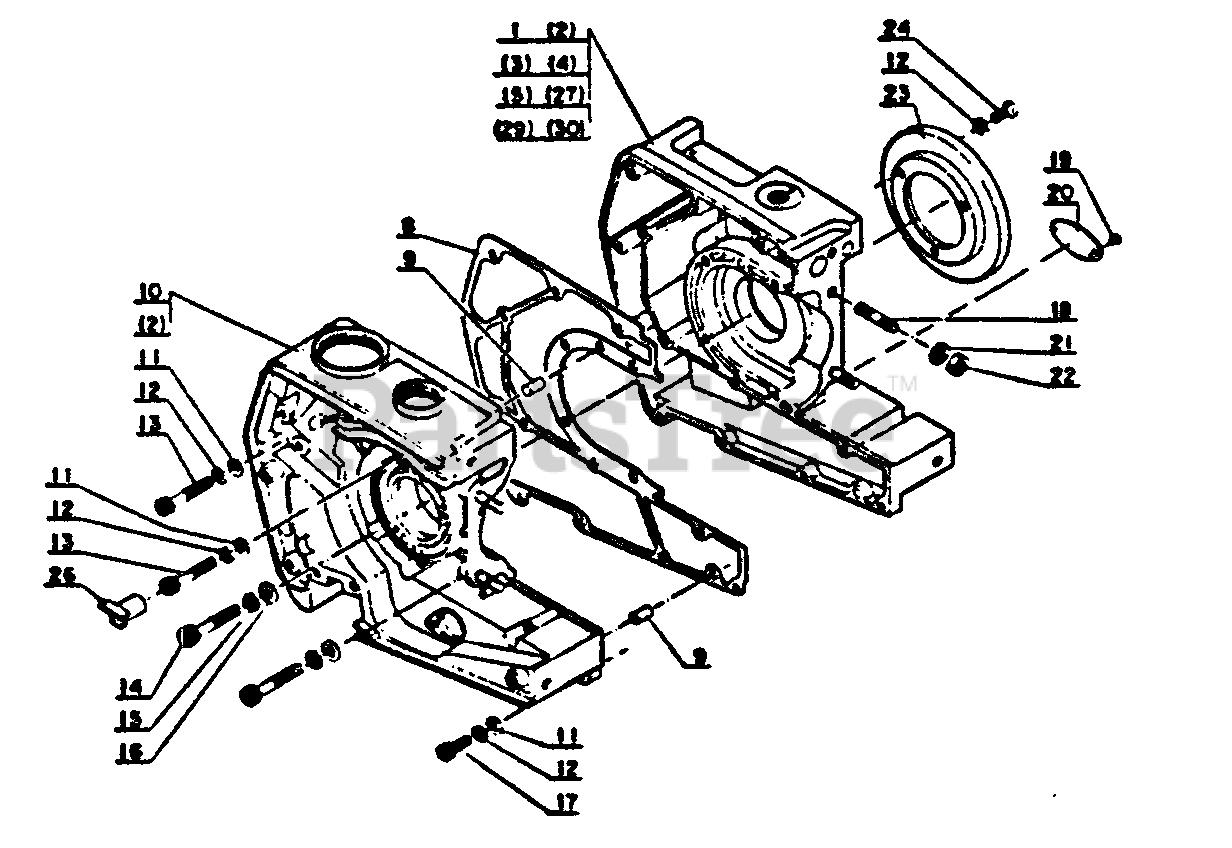

Crankcase Parts Diagram

  • Title

1

Echo 10020003435

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

2

------------------

N/A

$

$

Not available

3

------------------

N/A

$

$

Not available

4

------------------

N/A

$

$

Not available

5

------------------

N/A

$

$

Not available

8

Echo 10024203431

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

9

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

10

Echo 10020003435

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

11

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

12

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

13

Echo 10027703430

BOLT - 4X33
(Superseded to 90010504033)

$1.49

$

In Stock, only 1 left!

0

14

Echo 10024500830

BOLT - 5X30
(Superseded to 90010505030)

$1.49

$

In Stock, only 3 left!

0

15

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

16

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

17

Echo 35101403930

BOLT - 4X20
(Superseded to 90010504020)

$1.49

$

In Stock, only 2 left!

0

18

Echo 10021400830

STUD
(Superseded to Discontinued)

$

$

Not available

19

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

20

Echo 89011003431

PLATE, MODEL

$

$

Currently unavailable

21

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 10061803431

SEAL, DUST

$4.99

$

Usually ships in 2-4 days

0

24

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

26

Echo 15911003430

CLIP
(Superseded to Discontinued)

$

$

Not available

27

------------------

N/A

$

$

Not available

29

------------------

N/A

$

$

Not available

30

------------------

N/A

$

$

Not available
