CS-4500 - Echo Chainsaw Intake, Exhaust, Air Cleaner Parts Diagram

Chainsaw

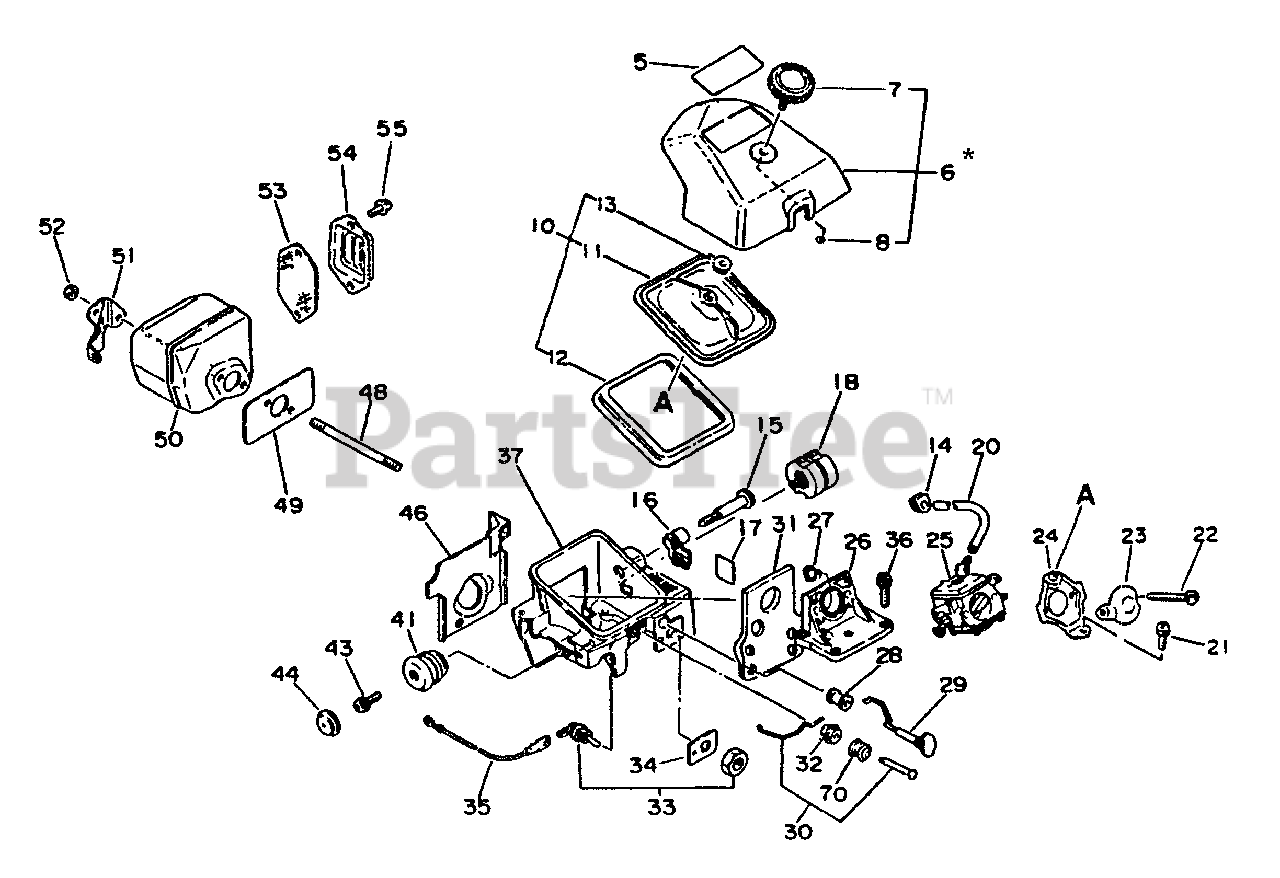

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 89016130230

LABEL - MODEL

$1.99

$

Usually ships in 2-4 days

0

6

Echo 13030230130

AIR FILTER COVER ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 13040619831

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

8

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

10

Echo 13030319830

AIR FILTER COVER ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo 13031019830

FILTER, AIR
(Superseded to 13030319830)

$

$

Not available

12

Echo 13032019830

SEAL
(Superseded to 13032019831)

$

$

Not available

13

Echo 13035619830

GROMMET

$0.99

$

In Stock, Qty 7

0

14

Echo 15011003930

BUSHING
(Superseded to Discontinued)

$

$

Not available

15

Echo 12901319830

SCREW, IDLE ADJUST

$3.49

$

Usually ships in 2-4 days

0

16

Echo 12901019830

GROMMET

$1.99

$

Usually ships in 2-4 days

0

17

Echo 89016930130

LABEL

$0.99

$

Usually ships in 2-4 days

0

18

Echo 10090519830

CUSHION

$24.99

$

Usually ships in 2-4 days

0

20

Echo 13011019830

PIPE - IMPULSE
(Superseded to 13011019831)

$2.99

$

Usually ships in 2-4 days

0

21

Echo 90028105014

SCREW - 5X14
(Superseded to 90016205014)

$1.49

$

In Stock, Qty 20+

0

22

Echo 90028105055

SCREW - 5X55
(Superseded to 90016205055)

$2.49

$

Usually ships in 2-4 days

0

23

Echo 12901119831

PLATE, PREVENT

$3.49

$

Usually ships in 2-4 days

0

24

Echo 13040519831

BRACKET, AIR CLEANER

$6.99

$

Usually ships in 2-4 days

0

25

Echo 12300019833

CARBURETOR
(Superseded to 12300019930)

$

$

Not available

26

Echo 13000719830

INSULATOR, INTAKE

$11.99

$

Usually ships in 2-4 days

0

27

Echo 13002019830

NUT
(Superseded to Discontinued)

$

$

Not available

28

Echo 17881011231

GROMMET

$1.49

$

Usually ships in 2-4 days

0

29

Echo 17851019830

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

30

Echo 17830719831

ROD, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

31

Echo 13001219830

SEAL
(Superseded to 13001219831)

$

$

Not available

32

Echo 17811419830

GUIDE, THROTTLE ROD

$1.99

$

In Stock, Qty 5

0

33

Echo 16340030830

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

34

Echo 89015719830

LABEL - STOP

$4.99

$

Usually ships in 2-4 days

0

35

Echo 16202230131

LEAD - GROUND

$3.99

$

Usually ships in 2-4 days

0

36

Echo 90028105025

SCREW - 5X25

$1.49

$

Usually ships in 2-4 days

0

37

Echo 13030619831

CASE, CARBURETOR

$72.99

$

Usually ships in 2-4 days

0

41

Echo 10091019830

CUSHION
(Superseded to 10091019831)

$6.49

$

Usually ships in 2-4 days

0

43

Echo 90028105010

SCREW - 5X10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 10

0

44

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

46

Echo 10152919830

INSULATOR

$9.49

$

Usually ships in 2-4 days

0

48

Echo 10101419830

STUD
(Superseded to Discontinued)

$

$

Not available

49

Echo 14551019830

GASKET, EXHAUST
(Superseded to 14551019831)

$4.49

$

Usually ships in 2-4 days

0

50

Echo 14561030130

MUFFLER
(Superseded to Discontinued)

$

$

Not available

51

Echo 14571119830

BRACKET

$6.99

$

Usually ships in 2-4 days

0

52

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

53

Echo 14586230130

SCREEN, SPARK ARRESTOR

$4.49

$

Usually ships in 2-4 days

0

54

Echo 14586119830

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

55

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

70

Echo 17807819830

SPRING

$1.99

$

In Stock, only 3 left!

0
