CS-4500 - Echo Chainsaw Engine, Crankcase Parts Diagram

Chainsaw

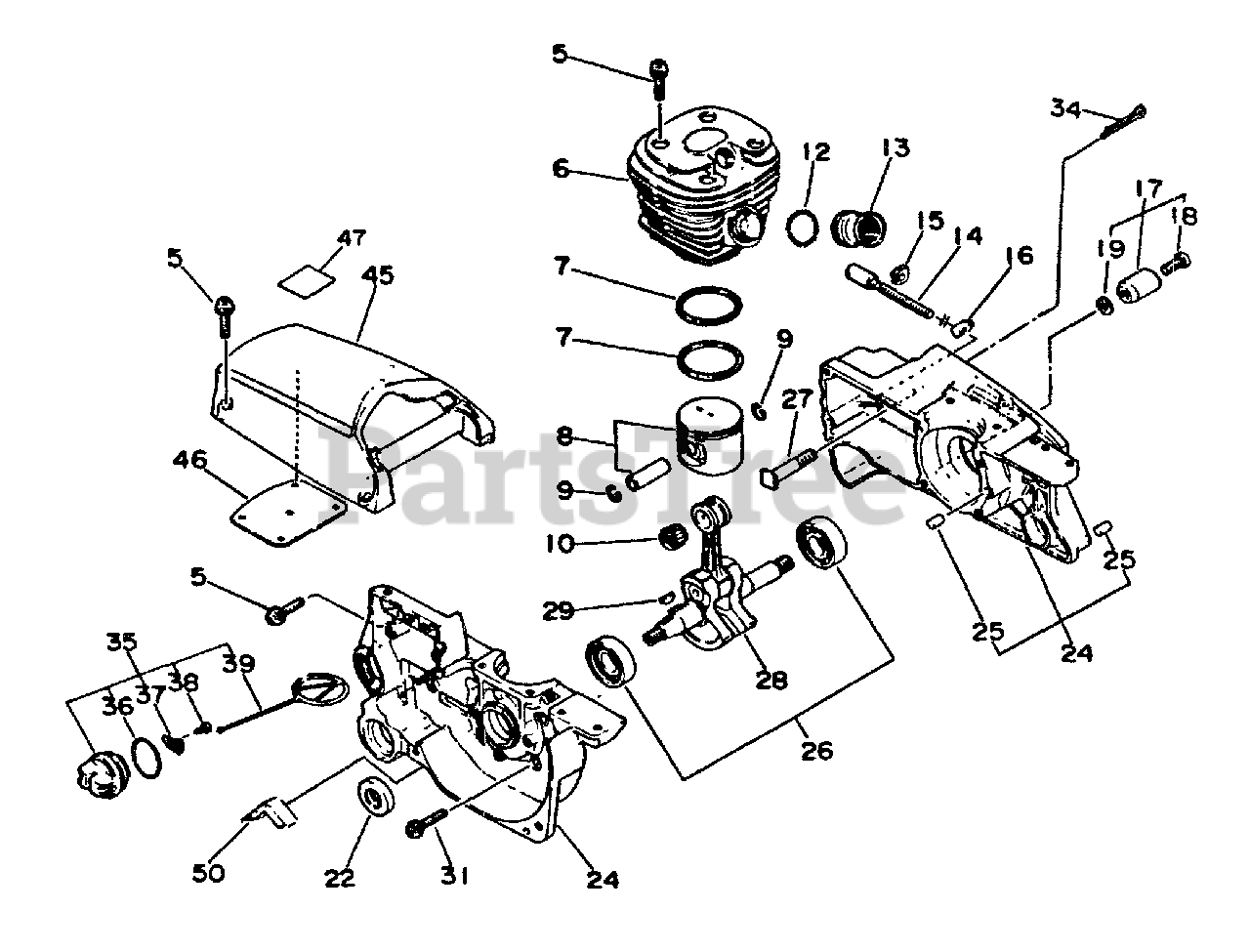

Engine, Crankcase Parts Diagram

  • Title
5

Echo 90028105020

SCREW - 5X20
(Superseded to 90023805020)

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10100519931

CYLINDER
(Superseded to 10100533730)

$

$

Not available

7

Echo 10001119930

RING, PISTON
(Superseded to 10001133730)

$7.99

$

In Stock, only 3 left!

0

8

Echo 10000319930

PISTON KIT
(Superseded to 10000019930)

$

$

Not available

9

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

12

Echo 13051619830

BAND
(Superseded to Discontinued)

$

$

Not available

13

Echo 13051019832

BELLOWS, INTAKE

$10.99

$

Usually ships in 2-4 days

0

14

Echo 43301611031

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 15

0

16

Echo 43301403932

TENSIONER, CHAIN
(Superseded to 43301403931)

$4.99

$

In Stock, Qty 20+

0

17

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

$2.99

$

In Stock, Qty 6

0

18

Echo 90028105020

SCREW - 5X20
(Superseded to 90023805020)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 10030119831

CRANKCASE KIT
(Superseded to 10030119832)

$

$

Not available

22

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

25

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

26

Echo 10012119830

BEARING SET

$68.99

$

Usually ships in 2-4 days

0

27

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, only 2 left!

0

34

Echo 90030120016

PIN, SPLIT - 2X16
(Superseded to Discontinued)

$

$

Not available

50

Echo 10025319830

CUSHION
(Superseded to Discontinued)

$

$

Not available

28

Echo 10010019830

CRANKSHAFT ASSY
(Superseded to 10010033330)

$

$

Not available

10

Echo 10002019830

BEARING, NEEDLE - WHITE
(Superseded to Discontinued)

$

$

Not available

10

Echo 10002119830

BEARING, NEEDLE - BLUE

$10.99

$

Usually ships in 2-4 days

0

10

Echo 10002219830

BEARING, NEEDLE - RED

$10.99

$

Usually ships in 2-4 days

0

$1.99

$

In Stock, Qty 14

0

31

Echo 90028105030

SCREW - 5X30
(Superseded to 90016205030)

$0.99

$

In Stock, Qty 10

0

35

Echo 43600119831

CAP ASSY
(Superseded to 43600119832)

$14.99

$

In Stock, only 1 left!

0

36

$2.99

$

Usually ships in 2-4 days

0

37

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

38

Echo 90025803008

SCREW - 3X8
(Superseded to Discontinued)

$

$

Not available

39

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

45

Echo 10151430130

COVER, ENGINE

$22.99

$

Usually ships in 2-4 days

0

46

$2.99

$

Usually ships in 2-4 days

0

47

Echo 89019130130

LABEL - KICK BACK
(Superseded to 89019130131)

$3.99

$

Usually ships in 2-4 days

0

Echo 10101019830

GASKET, CYLINDER
(Superseded to 10101019831)

Note: OPTIONAL

$1.99

$

Usually ships in 2-4 days

0

Echo 10024230230

GASKET, CRANKCASE

Note: OPTIONAL

$2.49

$

Usually ships in 2-4 days

0
