CS-4500 - Echo Chainsaw Carburetor Parts Diagram

Chainsaw

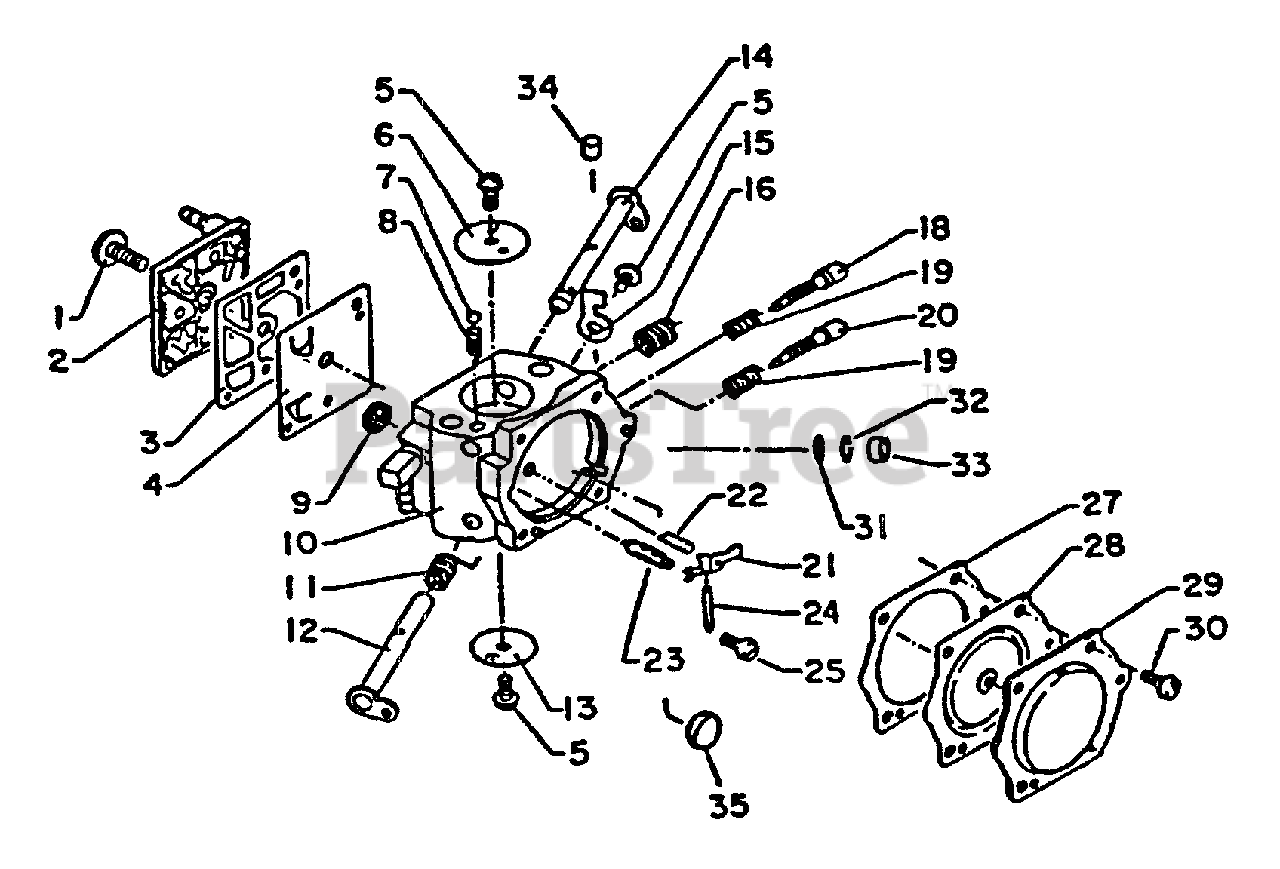

Carburetor Parts Diagram

  • Title

Echo 12300019833

CARBURETOR
(Superseded to 12300019930)

$

$

Not available

1

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

2

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

3

------------------

GASKET, PURGE

Note: Included in Carburetor repair kit P/N 12310030130 or Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

4

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor repair kit P/N 12310030130 or Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

6

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

------------------

STRAINER

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

10

------------------

BODY, CARBURETOR

Note: Use Carb Asy P/N 12311003930

$

$

Not available

11

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12311719830

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

13

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

15

Echo 12315612330

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

18

Echo 12311818331

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

19

------------------

SPRING, LOW SPEED NEEDLE

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

20

Echo 12312018431

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

21

------------------

LEVER, METERING

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

22

------------------

SPRING, METERING LEVER

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

23

------------------

VALVE, INLET NEEDLE

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

24

------------------

PIN, METERING LEVER

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

25

------------------

SCREW

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

27

------------------

GASKET, METERING

Note: Included in Carburetor repair kit P/N 12310030130 or Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

28

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor repair kit P/N 12310030130 or Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

29

Echo 12314217330

COVER, METERING

Note: Included in Carburetor repair kit P/N 12310030130

$3.99

$

Usually ships in 2-4 days

0

30

------------------

SCREW

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

31

------------------

STRAINER

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

32

------------------

RING, RETAINING

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

33

------------------

PLUG, WELCH

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available

34

Echo 12317815030

PLUG

Note: Included in Carburetor repair kit P/N 12310030130

$4.99

$

Usually ships in 2-4 days

0

35

------------------

PLUG, WELCH

Note: Included in Carburetor repair kit P/N 12310030130

$

$

Not available
