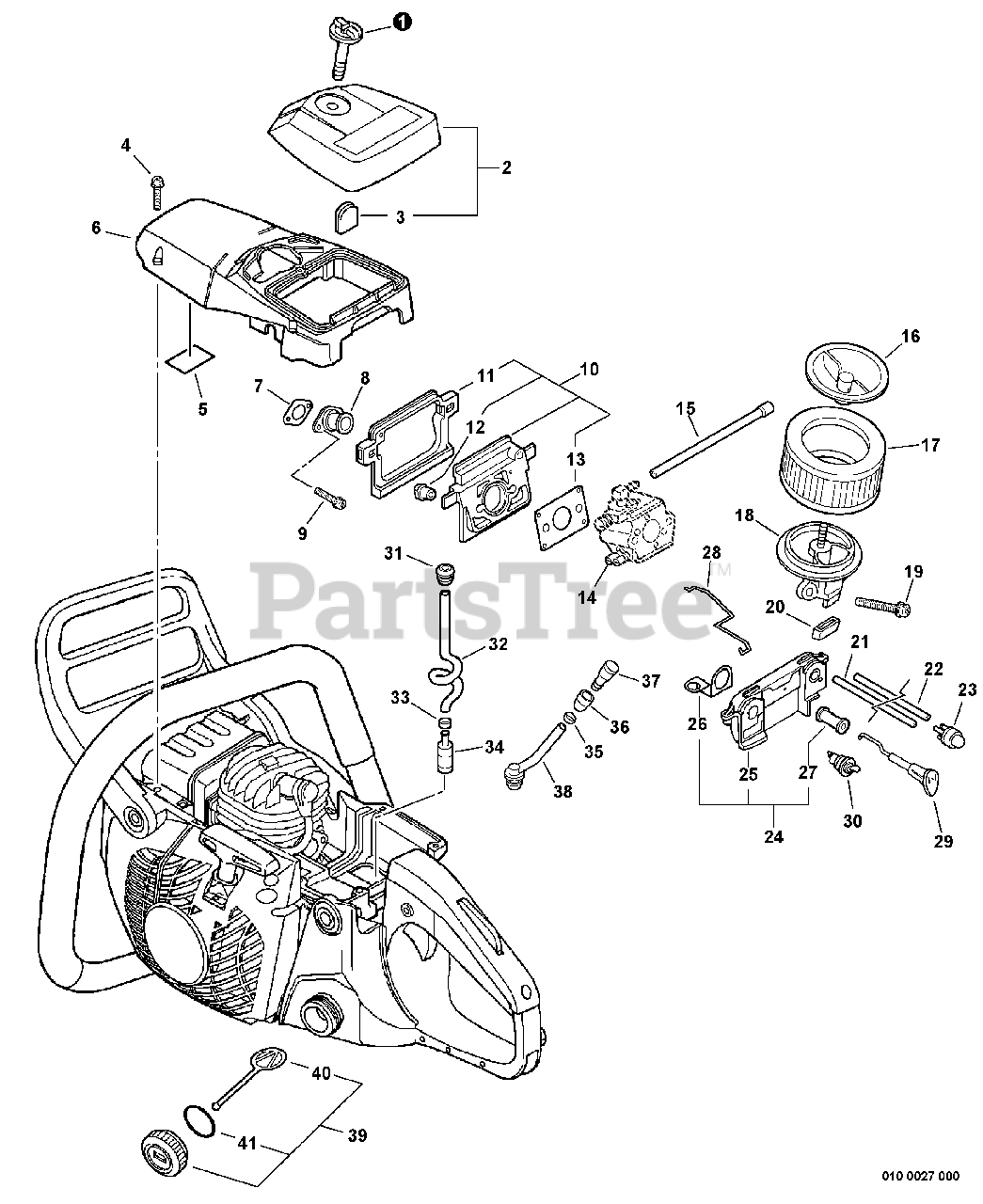

CS-450 - Echo Chainsaw (SN: C24326001001 - C24326999999) Intake, Cylinder Cover, Ignition Switch, Fuel System Parts Diagram

Chainsaw

Intake, Cylinder Cover, Ignition Switch, Fuel System Parts Diagram

  • Title

1

Echo A235000020

THUMBSCREW

$5.99

$

In Stock, only 3 left!

0

2

Echo P021014271

AIR FILTER COVER ASSY - ORANGE

Note: Includes ITEM 2

$10.99

$

Usually ships in 2-4 days

0

3

Echo 13033832430

PLUG

$1.49

$

In Stock, Qty 15

0

4

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

5

Echo V341000080

DEFLECTOR, HEAT

$

$

Not available

6

Echo A160000940

COVER, ENGINE

$21.99

$

In Stock, only 1 left!

0

7

Echo 13001639930

GASKET, INTAKE

$2.99

$

In Stock, Qty 16

0

8

Echo 13051039932

ADAPTOR, INTAKE

$23.99

$

Usually ships in 2-4 days

0

9

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

10

Echo 13000038331

INSULATOR KIT

Note: Includes ITEMS 11-13

$20.99

$

In Stock, only 1 left!

0

11

Echo V420001130

CUSHION

$5.99

$

Usually ships in 2-4 days

0

12

Echo 13002033330

T-NUT

$3.49

$

In Stock, Qty 5

0

13

Echo 13001038330

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

14

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

15

Echo 13011038330

PIPE - IMPULSE
(Superseded to 13011038331)

$2.99

$

In Stock, only 4 left!

0

16

Echo 13040538332

COVER, AIR FILTER

$9.99

$

In Stock, only 1 left!

0

17

Echo 13031038331

FILTER, AIR

$22.99

$

In Stock, only 4 left!

0

18

Echo A204000004

ADAPTOR, INTAKE

$10.99

$

Usually ships in 2-4 days

0

19

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

20

Echo 13043038330

CUSHION

$1.99

$

In Stock, only 1 left!

0

21

Echo V471001240

PIPE - 3X5X140 -- BLACK
(Superseded to V471001241)

Note: RePower BULK OPTION: 90014

$3.49

$

In Stock, Qty 13

0

22

Echo V471001240

PIPE - 3X5X140 -- BLACK
(Superseded to V471001241)

Note: RePower BULK OPTION: 90014

$3.49

$

In Stock, Qty 13

0

23

Echo 12318139130

PUMP, PURGE

$7.49

$

In Stock, Qty 20+

0

24

Echo P021012490

SWITCH BRACKET KIT

Note: Includes ITEMS 25-27

$23.99

$

Usually ships in 2-4 days

0

25

Echo A439000310

BRACKET, SWITCH

$20.99

$

Usually ships in 2-4 days

0

26

Echo 16341338930

TERMINAL - GROUND

$3.49

$

Usually ships in 2-4 days

0

27

Echo 17881014534

GROMMET
(Superseded to 17881014535)

$1.49

$

Usually ships in 2-4 days

0

28

Echo C454000150

ROD, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

29

Echo A241000101

ROD, CHOKE
(Superseded to A241000102)

$5.99

$

Usually ships in 2-4 days

0

30

Echo 16340038330

IGNITION SWITCH ASSY

$15.99

$

In Stock, only 1 left!

0

31

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

32

Echo 13201038331

PIPE, FUEL - SPIRAL
(Superseded to 13201038332)

$8.49

$

In Stock, only 1 left!

0

33

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

34

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

35

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

36

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

37

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

38

Echo 13201239331

PIPE - VENT
(Superseded to 13201239332)

$12.99

$

In Stock, only 1 left!

0

39

Echo P021036960

CAP ASSY - BLACK

Note: Includes ITEMS 40-41

$10.99

$

In Stock, Qty 8

0

40

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

41

Echo V581000610

O-RING - 22

$0.99

$

In Stock, Qty 9

0
