CS 45 M4 (24A-45M4700) - Yard Machines Chipper Shredder (2016) Hopper Parts Diagram

Chipper Shredder

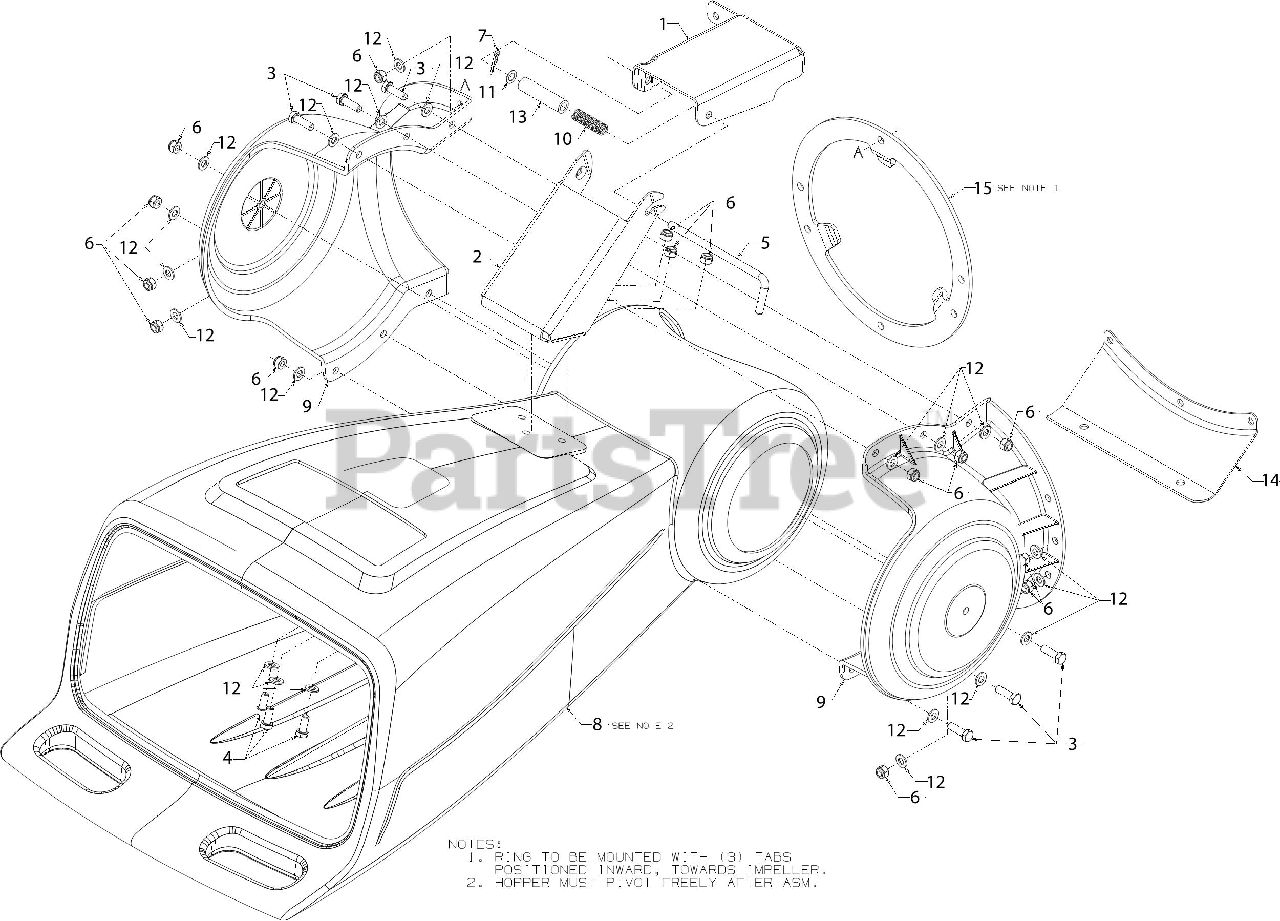

Hopper Parts Diagram

  • Title

1

MTD 681-0104-0638

HOPPER BRACKET ASSEMBLY

$59.99

$

In Stock, only 3 left!

0

2

MTD 681-0123-0638

HOPPER BRACKET ASSEMBLY

$63.99

$

Usually ships in 3-6 days

0

3

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

4

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

MTD 711-1128

LOCK ROD

$16.99

$

Usually ships in 3-6 days

0

6

MTD 912-0429

HEX NUT
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

7

MTD 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-1707A

SHREDDER HOPPER

$436.99

$

Usually ships in 3-6 days

0

9

MTD 731-1710A

CHIPPER SHREDDER HOPPER COLLAR

$59.99

$

In Stock, Qty 8

0

10

MTD 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 4 left!

0

11

MTD 936-0117

FLAT WASHER

$7.49

$

In Stock, only 1 left!

0

12

MTD 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

13

MTD 748-0453

SPACER-.375 x 2.50

$9.99

$

Usually ships in 3-6 days

0

14

MTD 781-0515-0638

FRONT SUPPORT BRACKET

$49.99

$

Usually ships in 3-6 days

0

15

MTD 781-0574-0638

HOPPER BACK-UP PLATE

$172.99

$

Usually ships in 3-6 days

0
