CS 45 M4 (24A-45M4700) - Yard Machines Chipper Shredder (2016) Flail Housing & Frame Parts Diagram

Chipper Shredder

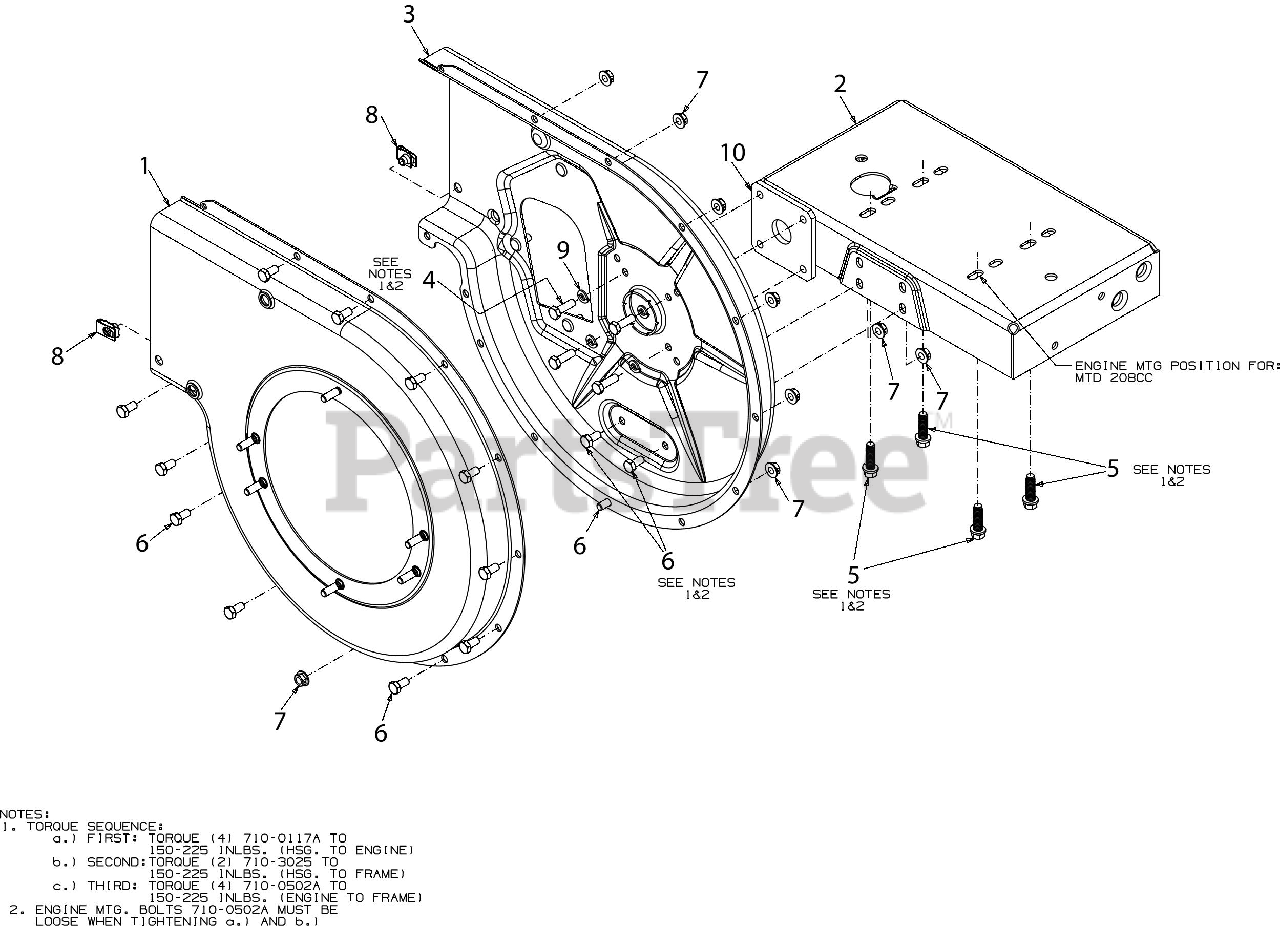

Flail Housing & Frame Parts Diagram

  • Title

1

MTD 681-0004A-0638

FLAIL HOUSING ASSEMBLY (LH)
(Superseded to 681-0004A-0637)

$236.99

$

Usually ships in 3-6 days

0

2

MTD 681-0184C-0638

FRAME ASSEMBLY

$117.99

$

Usually ships in 3-6 days

0

3

MTD 681-05063

INNER FLAIL HOUSING

Variations

MTD 681-05063-4021

HSG-FLAIL INNER - CUB YELLOW 2 (4021)

$162.99

$

Usually ships in 3-6 days

0

MTD 681-05063-0638

HSG-FLAIL INNER - MTD/TROY-BILT RED (0638)

$162.99

$

Usually ships in 3-6 days

0

MTD 681-05063-0691

HSG-FLAIL INNER - BLACK JACK (0691)

$150.99

$

Usually ships in 3-6 days

0

MTD 681-05063-4044

HSG-FLAIL INNER - CRAFTSMAN RED (4044)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

3

MTD 710-1307

CLINCH STUD 5/16-18 x .75

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

4

MTD 710-0117A

HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5

$5.49

$

Usually ships in 3-6 days

0

5

MTD 710-0502A

SCREW 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-3025

SCREW 5/16-18X .625 GR5

$3.99

$

In Stock, Qty 8

0

7

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 926-0211

U-NUT
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

9

MTD 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

10

MTD 781-04292-0637

ENGINE PLATE

$8.99

$

Usually ships in 3-6 days

0
