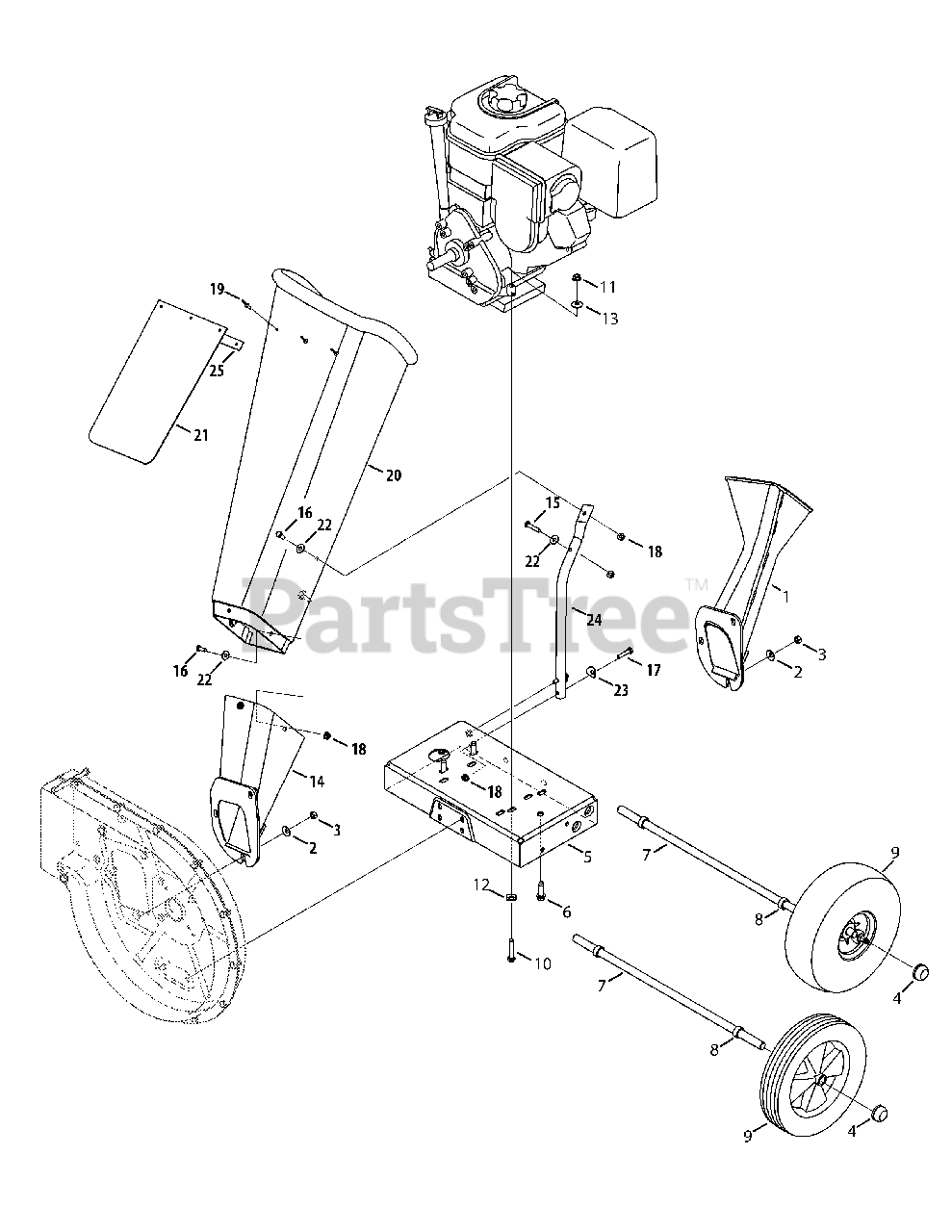

CS 45 M4 (24A-45M4700) - Yard Machines Chipper Shredder (2015) Chute & Wheels Parts Diagram

Chipper Shredder

Chute & Wheels Parts Diagram

  • Title

1

MTD 681-04118-0638

Chipper Shredder Chute

$147.99

$

Usually ships in 3-6 days

0

2

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

3

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

5

MTD 681-0184C-0638

Frame

$117.99

$

Usually ships in 3-6 days

0

6

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

7

MTD 738-0814

Axle Assembly

$44.99

$

In Stock, only 1 left!

0

8

MTD 950-0786

Spacer

$7.49

$

Usually ships in 3-6 days

0

9

MTD 734-1600

Wheel Comp., 10.0 x 2.5 Plastic

$93.99

$

Usually ships in 3-6 days

0

10

MTD 710-0805A

Hex Cap Screw 5/16-18 x 1.50

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 936-0170

Bell Washer 5/16 x 1.0
(Superseded to 736-0170)

$

$

Not available

13

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

14

MTD n/a

Chipper Chute Assembly

Note: Not used on this model

$

$

Currently unavailable

15

MTD n/a

Hex Cap Screw 1/4-20 x 1.25

Note: Not used on this model

$

$

Currently unavailable

16

MTD n/a

Hex Cap Screw 1/4 -20 x.620

Note: Not used on this model

$

$

Currently unavailable

17

MTD n/a

Hex Cap Screw, 1/4-20 x 1.250

Note: Not used on this model

$

$

Currently unavailable

18

MTD n/a

Hex Lock Nut 1/4-20

Note: Not used on this model

$

$

Currently unavailable

19

MTD n/a

Pop Rivet

Note: Not used on this model

$

$

Currently unavailable

20

MTD n/a

Chipper Shredder Chute

Note: Not used on this model

$

$

Currently unavailable

21

MTD n/a

Chute Flap

Note: Not used on this model

$

$

Currently unavailable

22

MTD n/a

Flat Washer.28 ID x.74 OD

Note: Not used on this model

$

$

Currently unavailable

23

MTD n/a

Washer,.320 ID x.93 OD

Note: Not used on this model

$

$

Currently unavailable

24

MTD n/a

Support Brace

Note: Not used on this model

$

$

Currently unavailable

25

MTD n/a

Chute Flap Strip

Note: Not used on this model

$

$

Currently unavailable

MTD 964-04022

Chipper Bag Ass’y
(Superseded to 664P04022A)

Note: Not Shown

$74.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: Not Shown

$26.99

$

Usually ships in 3-6 days

0
