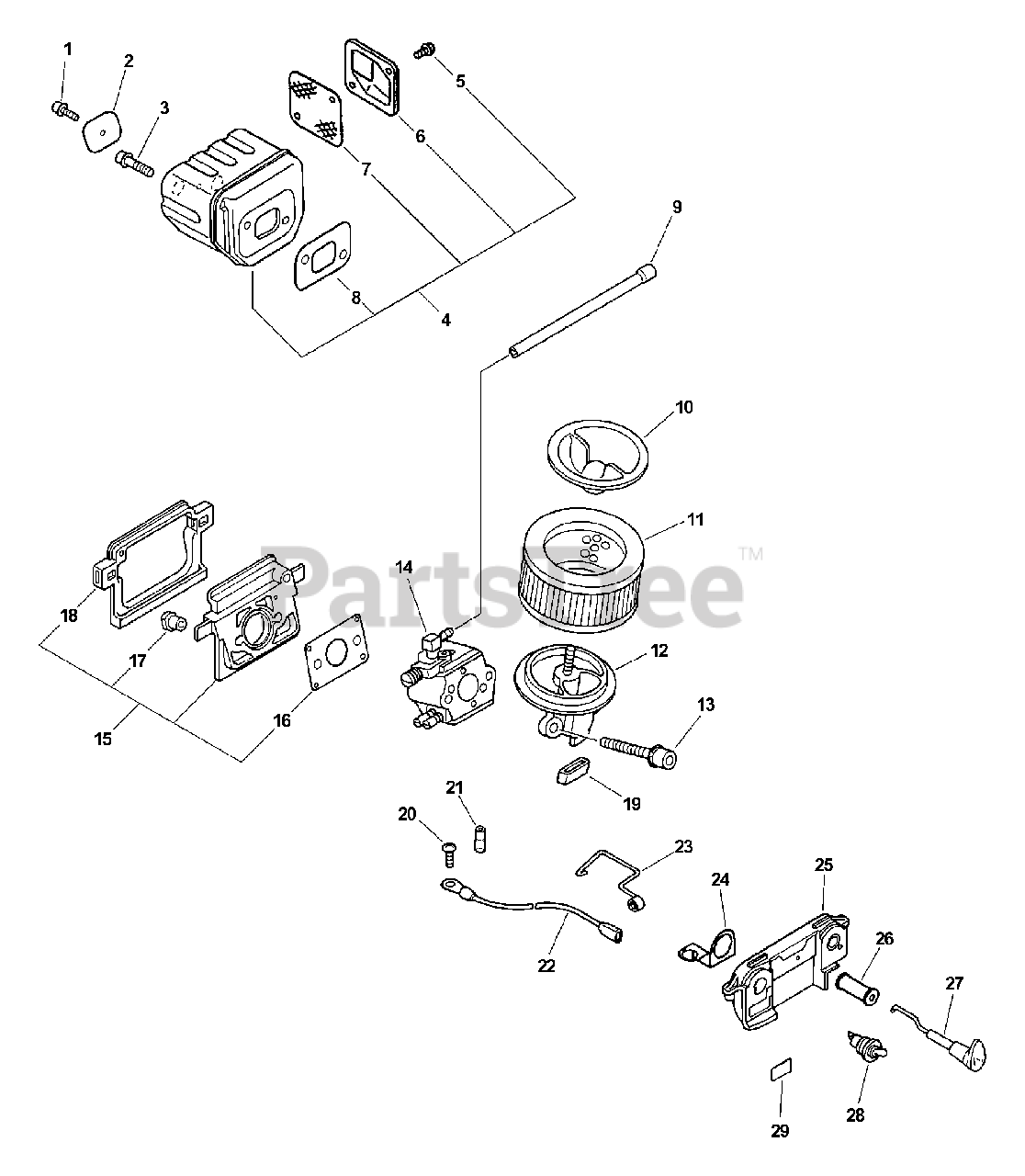

CS-4400 - Echo Chainsaw (Type 1E) (SN: 101001 - 999999) Exhaust, Intake Parts Diagram

Chainsaw (Type 1E)

Exhaust, Intake Parts Diagram

  • Title
1

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 8

0

$6.99

$

Usually ships in 2-4 days

0

3

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

4

Echo 14580061630

MUFFLER ASSY
(Superseded to 14580061631)

Note: INCLUDES ITEMS 5-8

$

$

Not available

5

Echo 90025004008

SCREW - 4X8

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14586339330

GUIDE, EXHAUST

$5.99

$

Usually ships in 2-4 days

0

7

Echo 14588439330

SCREEN, SPARK ARRESTOR

$

$

Not available

8

Echo 14551035431

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

9

Echo 13011038330

PIPE - IMPULSE
(Superseded to 13011038331)

$2.99

$

In Stock, only 4 left!

0

10

Echo 13040538331

COVER, AIR FILTER
(Superseded to 13040538332)

$9.99

$

In Stock, only 1 left!

0

11

Echo 13031038331

FILTER, AIR

$22.99

$

In Stock, only 4 left!

0

12

Echo 13030138332

MOUNT, AIR FILTER

$14.99

$

Usually ships in 2-4 days

0

13

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

14

Echo 12300039333

CARBURETOR WT-416C

$115.99

$

In Stock, only 2 left!

0

15

Echo 13000038330

INSULATOR KIT
(Superseded to 13000038331)

Note: Includes ITEMS 16-18

$20.99

$

In Stock, only 1 left!

0

16

Echo 13001038330

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

17

$3.49

$

In Stock, Qty 5

0

18

Echo 13036638330

CUSHION
(Superseded to V420001130)

$5.99

$

Usually ships in 2-4 days

0

19

$1.99

$

In Stock, only 1 left!

0

20

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

21

Echo C483000000

BOOT, CONNECTOR

$1.49

$

In Stock, only 3 left!

0

22

Echo 16201038331

LEAD - GROUND
(Superseded to 16201038332)

$2.99

$

In Stock, only 4 left!

0

23

Echo 17801138331

ROD, THROTTLE

$4.49

$

In Stock, Qty 5

0

24

Echo 16341338930

TERMINAL - GROUND

$3.49

$

Usually ships in 2-4 days

0

25

Echo 16381038932

BRACKET, SWITCH
(Superseded to 16381038933)

$23.99

$

Usually ships in 2-4 days

0

26

Echo 17881014532

GROMMET
(Superseded to 17881014534)

$1.49

$

Usually ships in 2-4 days

0

27

Echo 17851038330

ROD, CHOKE
(Superseded to 17851038331)

$7.49

$

In Stock, Qty 14

0

28

Echo 16340038330

IGNITION SWITCH ASSY

$15.99

$

In Stock, only 1 left!

0

29

Echo 89015737330

LABEL - STOP

$1.99

$

In Stock, Qty 5

0
