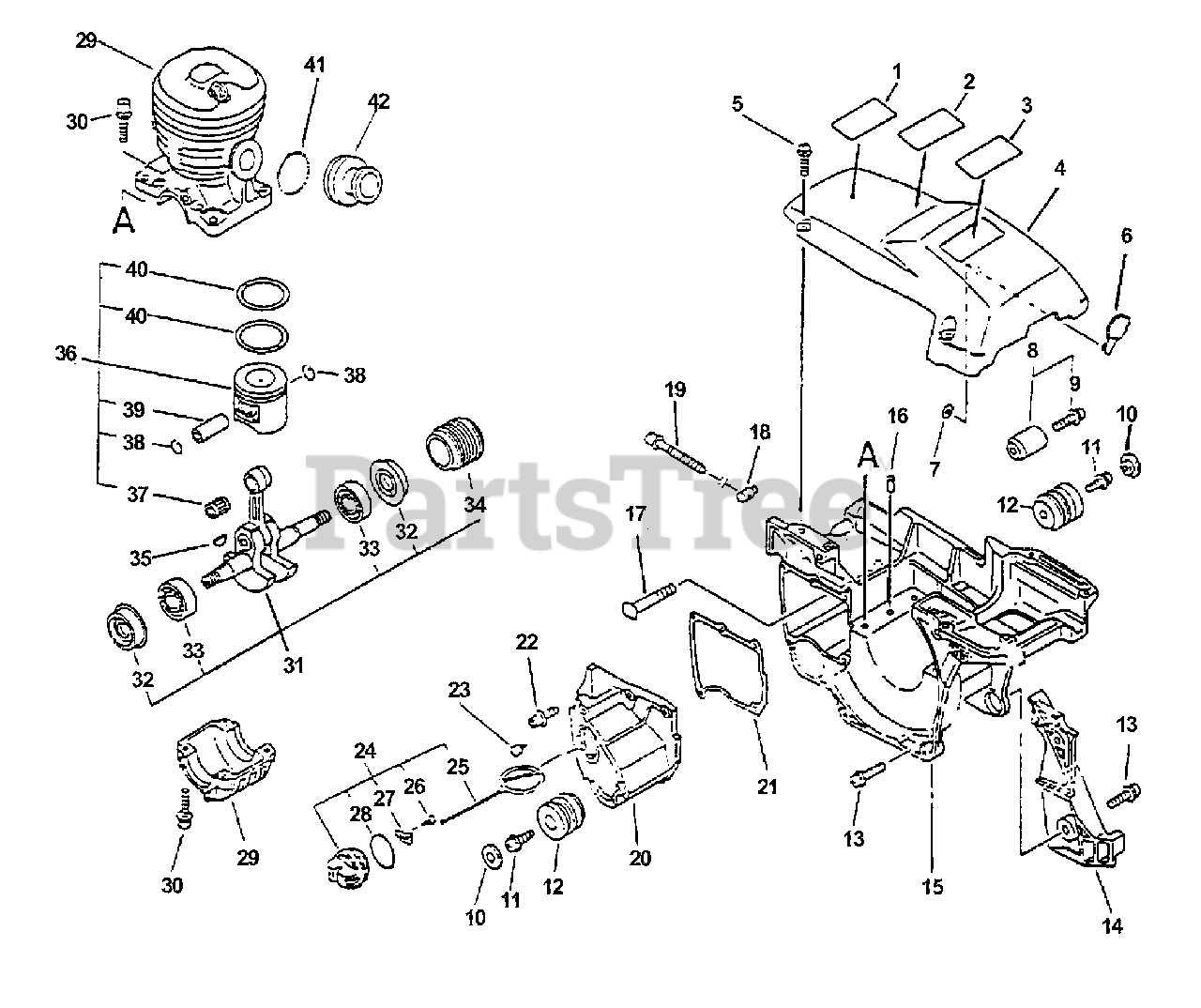

CS-4400 - Echo Chainsaw (Type 1E) (SN: 001001 - 101000) Crankcase, Engine, Engine Cover, Oil Tank Parts Diagram

Chainsaw (Type 1E)

Crankcase, Engine, Engine Cover, Oil Tank Parts Diagram

  • Title

1

Echo 89019130130

LABEL - KICK BACK
(Superseded to 89019130131)

$3.99

$

Usually ships in 2-4 days

0

2

Echo 89019230135

LABEL - BAR & CHAIN

$3.99

$

In Stock, only 1 left!

0

3

Echo 89015139330

LABEL - MODEL CS-4400

$6.99

$

Usually ships in 2-4 days

0

4

Echo 10150138930

ENGINE COVER KIT - GRAY
(Superseded to P021006570)

Note: INCLUDES ITEMS 5 - 7

$37.99

$

Usually ships in 2-4 days

0

5

Echo 16389038330

SCREW - 5

$1.99

$

In Stock, Qty 5

0

6

Echo 10157938330

PLUG

$3.99

$

Usually ships in 2-4 days

0

7

Echo 90058000004

PUSHNUT - 4

$1.99

$

Usually ships in 2-4 days

0

8

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: INCLUDE ITEM 9

$2.99

$

In Stock, Qty 6

0

9

Echo 90022005018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0

10

Echo 10091838330

CAP, CUSHION

$2.49

$

Usually ships in 2-4 days

0

11

Echo 10091533930

SCREW

$2.49

$

In Stock, only 3 left!

0

12

Echo 10092138330

CUSHION

$20.99

$

Usually ships in 2-4 days

0

13

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

14

Echo 43304539330

COVER

$3.99

$

Usually ships in 2-4 days

0

15

Echo 10400539330

COVER, ENGINE - GRAY
(Superseded to 10400539331)

Note: Includes ITEMS 16-17

$158.99

$

Usually ships in 2-4 days

0

16

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

17

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, only 2 left!

0

18

Echo 43301419830

TENSIONER, CHAIN

$4.99

$

In Stock, only 3 left!

0

19

Echo 43301638330

SCREW, TENSIONER

$4.49

$

In Stock, Qty 5

0

20

Echo 43600539330

OIL TANK ASSY
(Superseded to 43600539331)

Note: INCLUDES ITEMS 21 - 23

$50.99

$

Usually ships in 2-4 days

0

21

Echo 43601938330

GASKET, OIL TANK

$1.99

$

In Stock, Qty 6

0

22

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

23

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

24

Echo 43600137933

CAP ASSY

Note: INCLUDES ITEMS 25 - 28

$14.99

$

In Stock, only 1 left!

0

25

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

26

Echo 90024603008

SCREW - 3X8

$

$

Not available

27

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

28

Echo 90072502025

O-RING - 25

$2.49

$

In Stock, only 2 left!

0

29

Echo 10020238930

CRANKCASE KIT
(Superseded to 10020238931)

Note: INCLUDES ITEM 30 (4-EA)

$200.99

$

Usually ships in 2-4 days

0

30

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

31

Echo 10010138330

CRANKSHAFT ASSY
(Superseded to P021007290)

Note: INCLUDES ITEMS 32 - 34

$200.99

$

Usually ships in 2-4 days

0

32

Echo 10021338330

SEAL, OIL

$5.99

$

In Stock, Qty 12

0

33

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

34

Echo V652000021

GEAR - WORM

$14.99

$

Usually ships in 2-4 days

0

35

Echo 10014242030

KEY
(Superseded to 10014239130)

$2.99

$

In Stock, only 2 left!

0

36

Echo 10000038930

PISTON KIT
(Superseded to 10000038931)

Note: INCLUDES ITEMS 37 - 40

$

$

Not available

37

Echo 10001235430

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

38

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

Usually ships in 2-4 days

0

39

Echo 10001335430

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

40

Echo 10001138930

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

41

Echo 13051635430

SPRING

$4.49

$

Usually ships in 2-4 days

0

42

Echo 13051038330

ADAPTOR, INTAKE

$23.99

$

Usually ships in 2-4 days

0

Echo SB1025

SHORT BLOCK -- SB1025

$319.99

$

Usually ships in 2-4 days

0
