CS-4400 - Echo Chainsaw (Type 1E) (SN: 001001 - 101000) Carburetor Parts Diagram

Chainsaw (Type 1E)

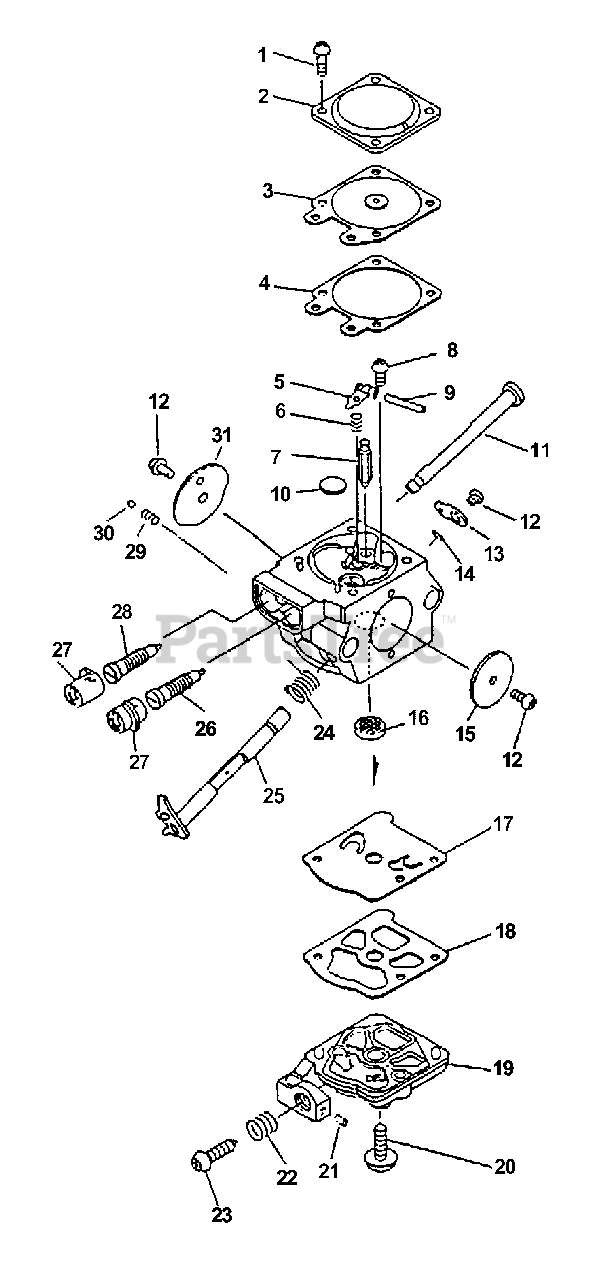

Carburetor Parts Diagram

  • Title

Echo 12300039330

CARBURETOR WT-416
(Superseded to 12300039332)

Note: INCLUDES THE FOLLOWING ITEMS

$115.99

$

In Stock, only 2 left!

0

1

------------------

SCREW

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Included in Repair Kit P/N 12310039130 & Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Repair Kit P/N 12310039130 & Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

5

------------------

LEVER, METERING

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

6

------------------

SPRING, METERING LEVER

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

7

------------------

VALVE, INLET NEEDLE

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

8

------------------

SCREW, METERING LEVER PIN

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

9

------------------

PIN, METERING LEVER

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

10

------------------

PLUG, WELCH

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

11

Echo 12313135430

SHAFT, CHOKE

$7.49

$

Usually ships in 2-4 days

0

12

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 12

0

13

Echo 12315038330

LEVER, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

15

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

------------------

STRAINER

Note: Included in Repair Kit P/N 12310039130

$

$

Not available

17

------------------

DIAPHRAGM, PURGE

Note: Included in Repair Kit P/N 12310039130 & Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

18

------------------

GASKET, PURGE

Note: Included in Repair Kit P/N 12310039130 & Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

19

Echo 12312438330

COVER, PUMP

$7.49

$

Usually ships in 2-4 days

0

20

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

21

Echo 12317815030

PLUG

$4.99

$

Usually ships in 2-4 days

0

22

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 14

0

23

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 9

0

24

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

25

Echo 12311735430

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

26

Echo 12311802260

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

27

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

28

Echo 12312039330

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

29

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

30

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

31

Echo 12313237330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

Echo 12310039130

REPAIR KIT

$16.99

$

In Stock, only 1 left!

0

Echo 12310137330

DIAPHRAGM/GASKET KIT

$7.49

$

Usually ships in 2-4 days

0
