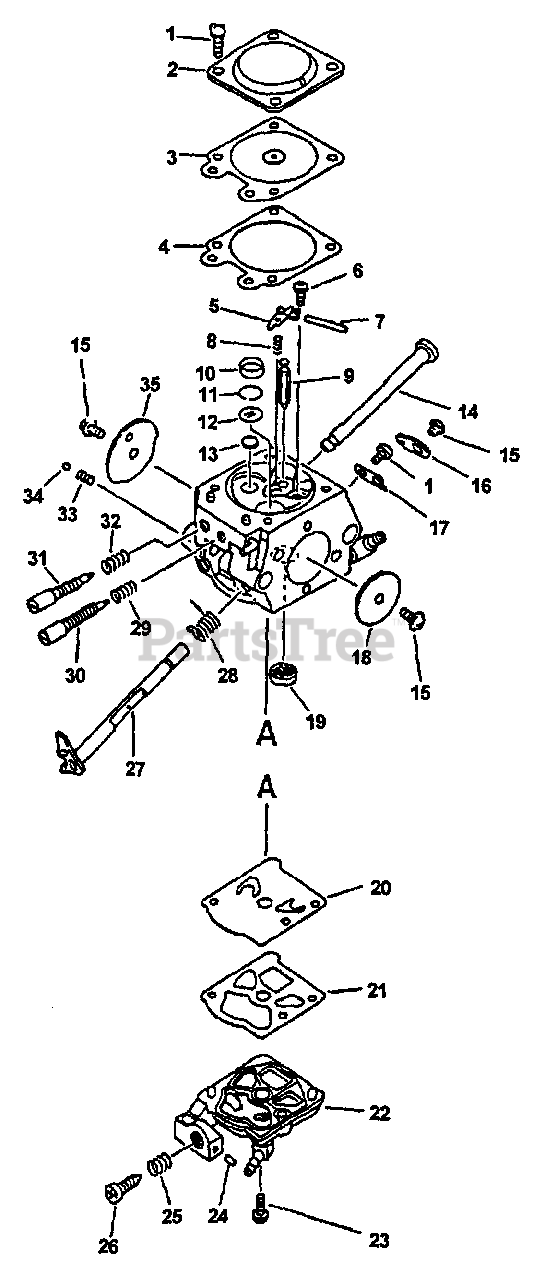

CS-4400 - Echo Chainsaw (Type 1) (SN: 001001 - 101000) Carburetor Parts Diagram

Chainsaw (Type 1)

Carburetor Parts Diagram

  • Title

Echo 12300038331

CARBURETOR WT-201A
(Superseded to 12300038332)

Note: Includes ITEMS 1-35

$86.99

$

Usually ships in 2-4 days

0

1

Echo 12310037330

REPAIR KIT

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$15.99

$

In Stock, only 2 left!

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

Echo 12310037330

REPAIR KIT

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$15.99

$

In Stock, only 2 left!

0

3

Echo 12310137330

DIAPHRAGM/GASKET KIT

Note: INCLUDED IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$7.49

$

Usually ships in 2-4 days

0

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT, P/N 12310037330 AND IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$

$

Not available

5

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

6

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

7

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

10

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

11

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

12

Echo 12316810631

SCREEN, SPARK ARRESTOR

$1.49

$

In Stock, only 1 left!

0

13

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

14

Echo 12313135430

SHAFT, CHOKE

$7.49

$

Usually ships in 2-4 days

0

15

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

16

Echo 12315038330

LEVER, THROTTLE

$

$

Not available

17

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

19

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

20

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT, P/N 12310037330 AND IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$

$

Not available

21

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT, P/N 12310037330 AND IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$

$

Not available

22

Echo 12312438330

COVER, PUMP

$7.49

$

Usually ships in 2-4 days

0

23

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

24

Echo 12317815030

PLUG

$4.99

$

Usually ships in 2-4 days

0

25

Echo 12313306320

SPRING, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

26

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

27

Echo 12311735430

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

28

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

29

------------------

SPRING, NEEDLE L.S.

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

30

Echo 12311838330

NEEDLE - LOW SPEED

$4.49

$

Usually ships in 2-4 days

0

31

Echo 12312038330

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

32

------------------

SPRING, NEEDLE H.S.

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

33

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

34

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

35

Echo 12313237330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

Echo 12310037330

REPAIR KIT

$15.99

$

In Stock, only 2 left!

0

Echo 12310137330

DIAPHRAGM/GASKET KIT

$7.49

$

Usually ships in 2-4 days

0
