CS-440 EVL - Echo Chainsaw Auto-Oiler, Fuel System Parts Diagram

Chainsaw

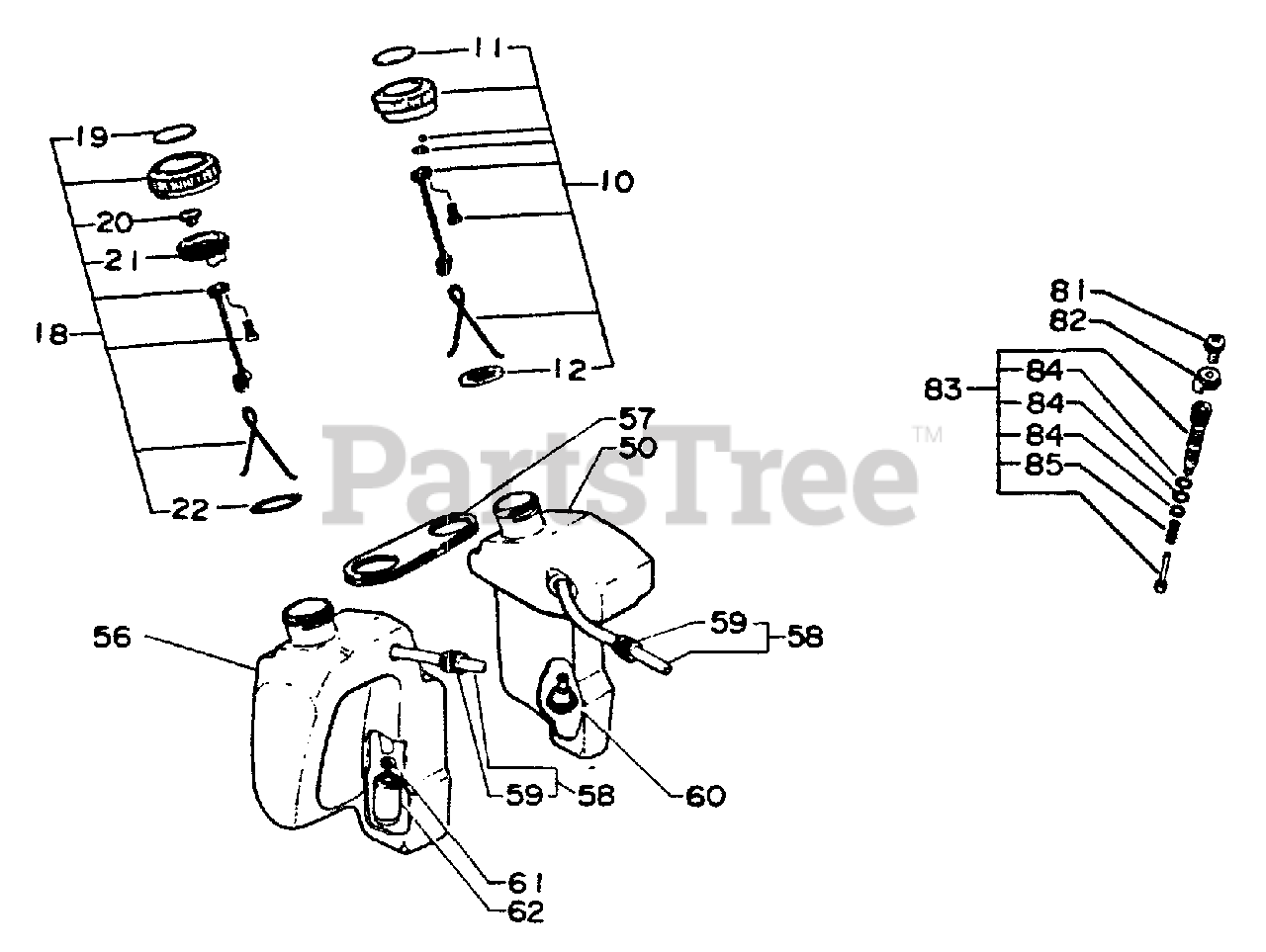

Auto-Oiler, Fuel System Parts Diagram

  • Title
10

Echo 43600214530

CAP ASSY
(Superseded to 43600214531)

$

$

Not available

11

Echo 89015311430

LABEL - CHAIN OIL
(Superseded to 89015318030)

$

$

Not available

12

Echo 43601212330

GASKET, CAP

$0.99

$

In Stock, only 2 left!

0

18

Echo 13160014531

CAP ASSY
(Superseded to 13160014532)

$

$

Not available

19

Echo 89015415130

LABEL - FUEL MIX

$1.49

$

In Stock, only 1 left!

0

$11.99

$

In Stock, only 1 left!

0

21

Echo 13101514531

HOLDER, VENT

$3.49

$

Usually ships in 2-4 days

0

22

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 10

0

50

Echo 43601014530

TANK, OIL

$13.99

$

Usually ships in 2-4 days

0

56

Echo 13101016330

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

57

Echo 13103812331

CONNECTOR

$7.99

$

In Stock, only 1 left!

0

58

Echo 13200714530

FUEL PIPE KIT

$5.99

$

In Stock, Qty 9

0

59

$1.49

$

In Stock, Qty 20+

0

60

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 3 left!

0

61

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

62

Echo 13120500830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

81

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

82

Echo 43705911133

LOCKWASHER

$2.99

$

Usually ships in 2-4 days

0

83

Echo 43700003430

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

84

Echo 43702002830

O-RING - 5

$1.99

$

Usually ships in 2-4 days

0

85

$1.49

$

In Stock, Qty 6

0
