CS-440 - Echo Chainsaw (SN: C09112001001 - C09112999999) Handles, Throttle Control Parts Diagram

Chainsaw

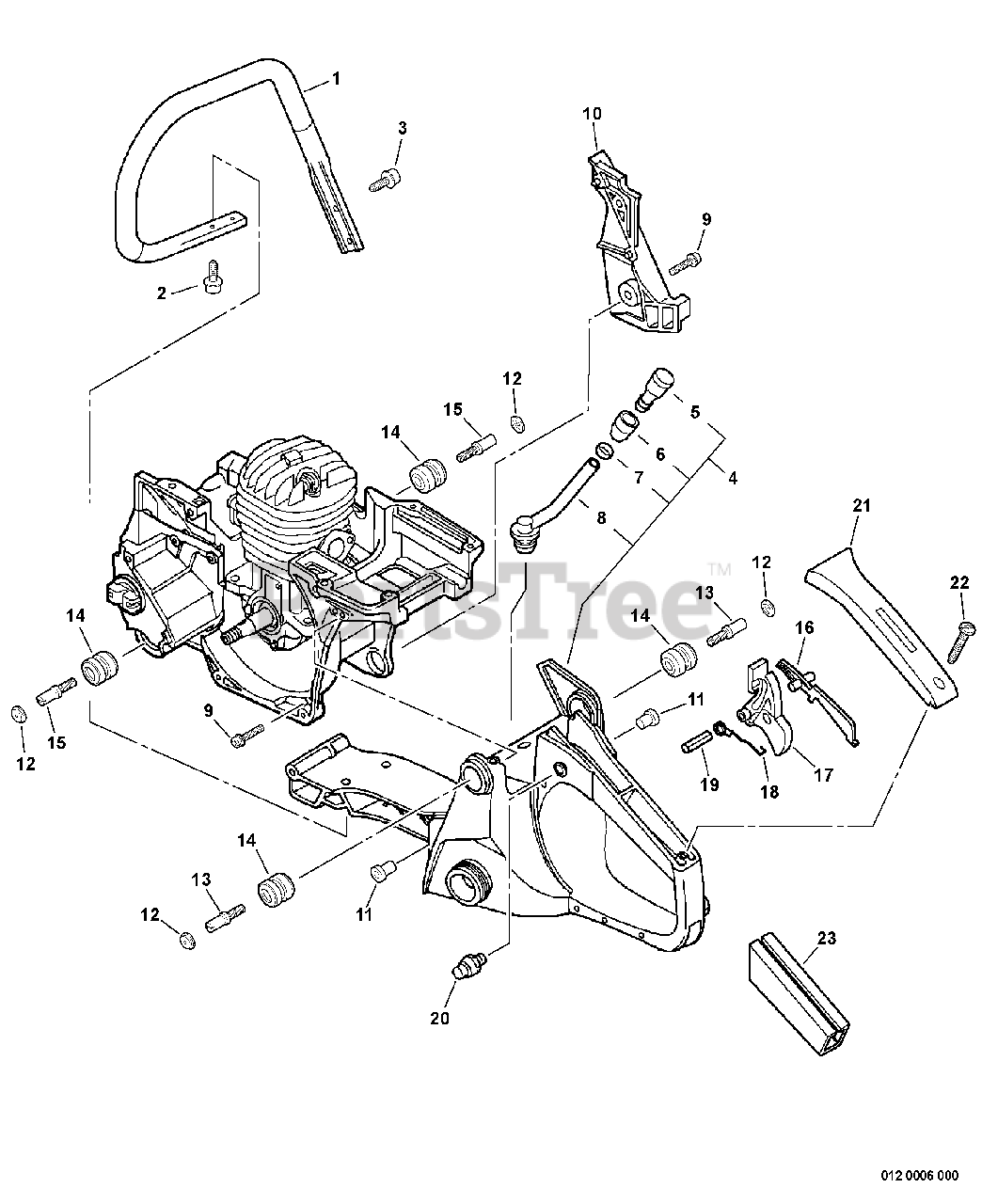

Handles, Throttle Control Parts Diagram

  • Title

1

Echo 35160638330

HANDLE - FRONT
(Superseded to 35160638331)

$

$

Not available

2

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, only 4 left!

0

3

Echo 9114505020

SCREW - 5X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

4

Echo P021006600

HANDLE ASSY - REAR
(Superseded to P021006601)

Note: INCLUDES ITEMS 5-8

$116.99

$

Usually ships in 2-4 days

0

5

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

6

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 12

0

7

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

8

Echo 13201239330

PIPE - VENT
(Superseded to 13201239331)

$12.99

$

In Stock, only 1 left!

0

9

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

10

Echo 43304539332

COVER

$3.49

$

Usually ships in 2-4 days

0

11

Echo 10091038330

CUSHION

$11.99

$

Usually ships in 2-4 days

0

12

Echo 10091838330

CAP, CUSHION

$2.49

$

Usually ships in 2-4 days

0

13

Echo 10091532530

SCREW

$3.49

$

In Stock, Qty 9

0

14

Echo 10092138330

CUSHION

$20.99

$

Usually ships in 2-4 days

0

15

Echo 10091533930

SCREW

$2.49

$

In Stock, only 3 left!

0

16

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

17

Echo C450000000

TRIGGER, THROTTLE

$4.99

$

In Stock, only 1 left!

0

18

Echo 17804335430

SPRING, TRIGGER

$2.49

$

Usually ships in 2-4 days

0

19

Echo 90034540030

PIN - SPRING -- 4X30

$1.99

$

In Stock, only 3 left!

0

20

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

21

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$11.99

$

In Stock, only 2 left!

0

22

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 18

0

23

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0
