CS 4325 (24B-424M723) - Troy-Bilt Chipper Shredder (2018) Hopper Parts Diagram

Chipper Shredder

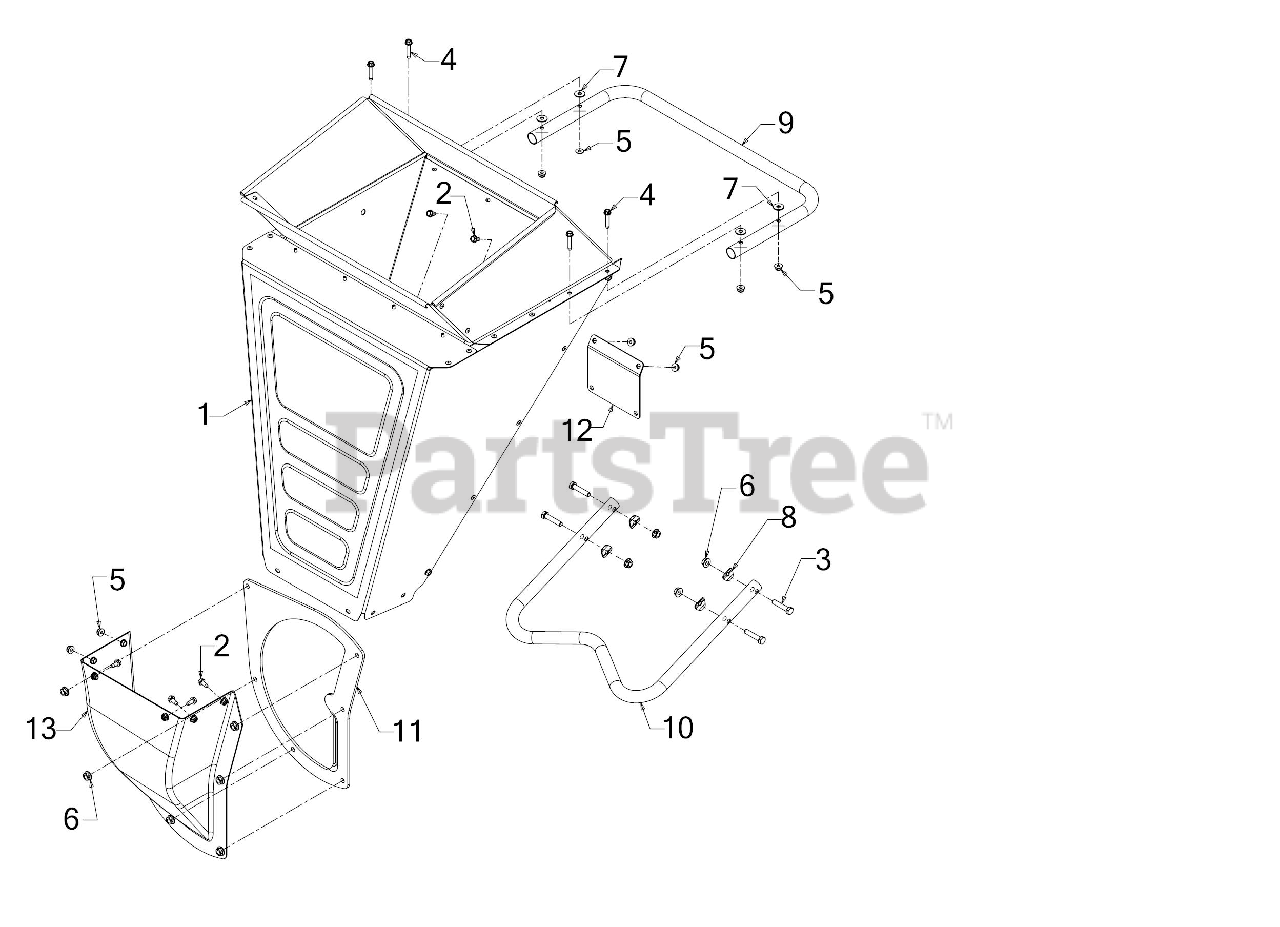

Hopper Parts Diagram

  • Title

1

Troy-Bilt 681-04011-0638

HOPPER ASSEMBLY
(Superseded to 981-04011-0638)

$

$

Not available

1

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 912-3027

LOCK NUT 1/4

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 728-04016

FULL TUBULAR RIVET

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

1

Troy-Bilt 781-04019-0638

HOPPER-TOP

Note: (Not Shown)

$86.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 781-04039-0638

HOPPER-INLET PANEL

Note: (Not Shown)

$33.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

5

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

9

Troy-Bilt 749-04103-0637

HOPPER HANDLE

$42.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 749-04104-0637

TUBE-SUPPORT

$52.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 781-04007-0638

SHREDDER PLATE

$46.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 781-04027-0638

HOPPER BRACKET SUPPORT

$20.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 781-04033-0638

INLET GUIDE

$93.99

$

Usually ships in 3-6 days

0
