CS 4325 (24B-424M711) - Troy-Bilt Chipper Shredder (2014) Chipper Shredder Hopper & Impeller Parts Diagram

Chipper Shredder

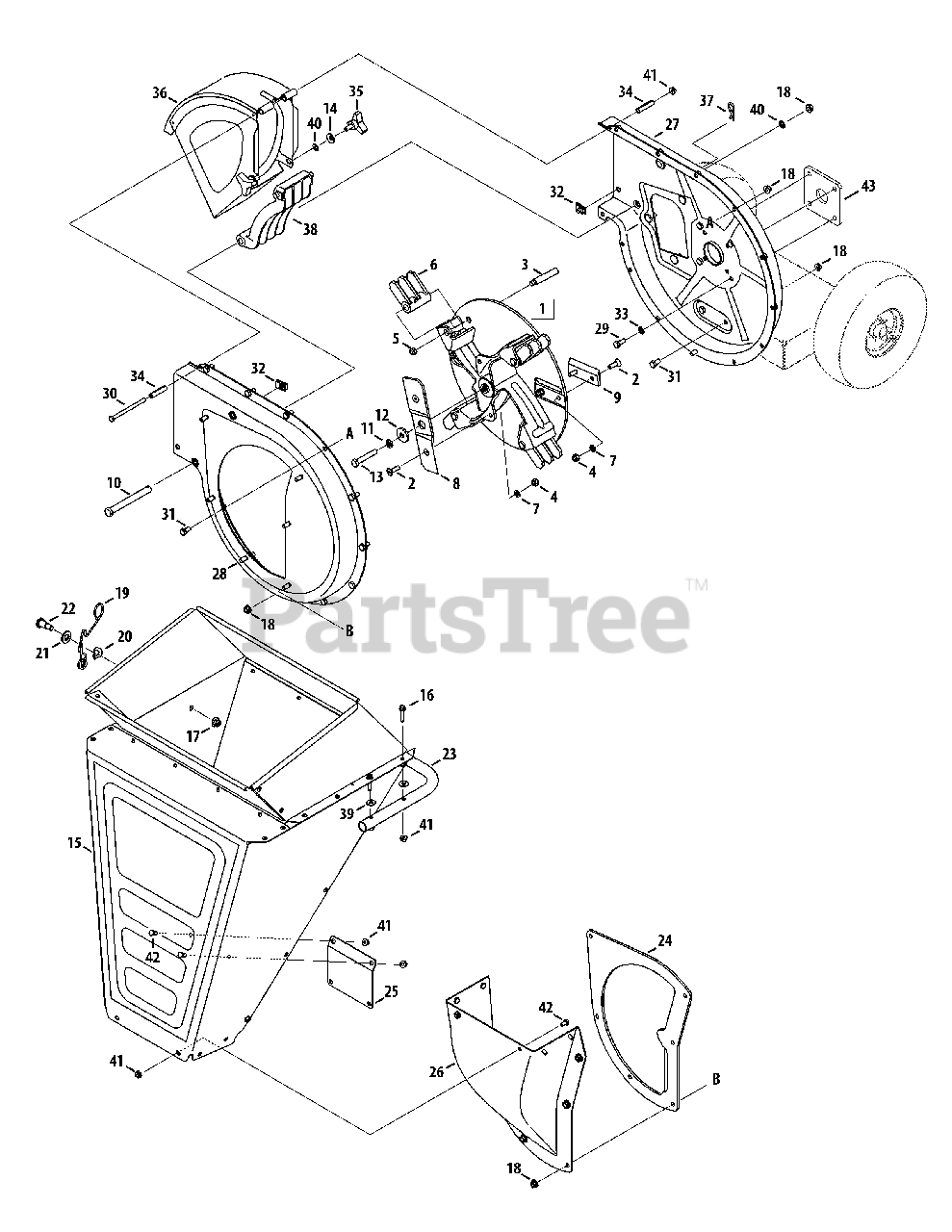

Chipper Shredder Hopper & Impeller Parts Diagram

  • Title

1

Troy-Bilt 981-04094

Impeller Assembly Complete

$613.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1054

Machine Screw, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 738-04286A

Shoulder Pin, .5 x 2.625

$4.99

$

In Stock, Qty 12

0

4

Troy-Bilt 912-0411

Hex Lock Nut, 5/16-24
(Superseded to 712-0411)

$

$

Not available

5

Troy-Bilt 712-0266A

Nut, Jam Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

6

Troy-Bilt 719-04308

Flail Blade

$18.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 942-04050

Shredder Blade
(Superseded to 742-04050-0637)

$34.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 942-0544B

Chipper Blade

$89.99

$

In Stock, Qty 7

0

10

Troy-Bilt 911-0835

Clevis Pin,.50 x 4.62

$12.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

12

Troy-Bilt 736-0247

Flat Washer,.406 x 1.25

$9.49

$

In Stock, Qty 15

0

13

Troy-Bilt 710-1254

Hex Cap Screw, 3/8-24 x 2.2

$7.99

$

In Stock, Qty 9

0

14

Troy-Bilt 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 681-04011-0638

Shredder Hopper Assembly
(Superseded to 981-04011-0638)

$

$

Not available

16

Troy-Bilt 710-0809

Hex Cap Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

17

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 932-04167

Torsion Spring

$10.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 736-0182

Spring Washer,.50 x 1.0 x.022

$4.49

$

In Stock, Qty 7

0

21

Troy-Bilt 936-0326

Flat Washer,.50 x 1.0 x.0125
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

22

Troy-Bilt 738-0430

Shoulder Screw, 3/8-16,

$11.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 749-04103-0637

Hopper Handle

$42.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 781-04007-0638

Shredder Plate

$46.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 781-04027-0638

Hopper Support Bracket

$20.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 781-04033-0638

Inlet Guide

$93.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 681-04116-0638

Inner Flail Housing Assembly
(Superseded to 681-05063-0638)

$162.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt n/a

Outer Flail Housing Assembly

Note: Not used on this model

$

$

Currently unavailable

28

Troy-Bilt 681-0004A-0638

Outer Flail Housing Assembly
(Superseded to 681-0004A-0637)

$236.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 8

0

29

Troy-Bilt n/a

Hex Cap Screw 5/16-24 x 1.00

Note: Not used on this model

$

$

Currently unavailable

30

Troy-Bilt 710-0825

Hex Cap Screw, 1/4-20 x 3.75

$5.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

32

Troy-Bilt 926-0211

U-Nut, 5/16-18
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

33

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 950-0793

Hinge Spacer,.265 x.380 x 1.66

$3.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 720-0170

Knob, 5/16-18

$11.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 681-0094A-0638

Chute Deflector Assembly
(Superseded to 681-0094A-0637)

$129.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

38

Troy-Bilt 719-04070

Shredder Screen

$48.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

40

Troy-Bilt 726-0201

Speed Nut,.3125ID

$6.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 712-04064

Nut, Flange, Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt n/a

Engine Plate

Note: Not used on this model

$

$

Currently unavailable
