CS 4310 (24A-425E766) - Troy-Bilt Chipper Shredder (2006) Impeller Parts Diagram

Chipper Shredder

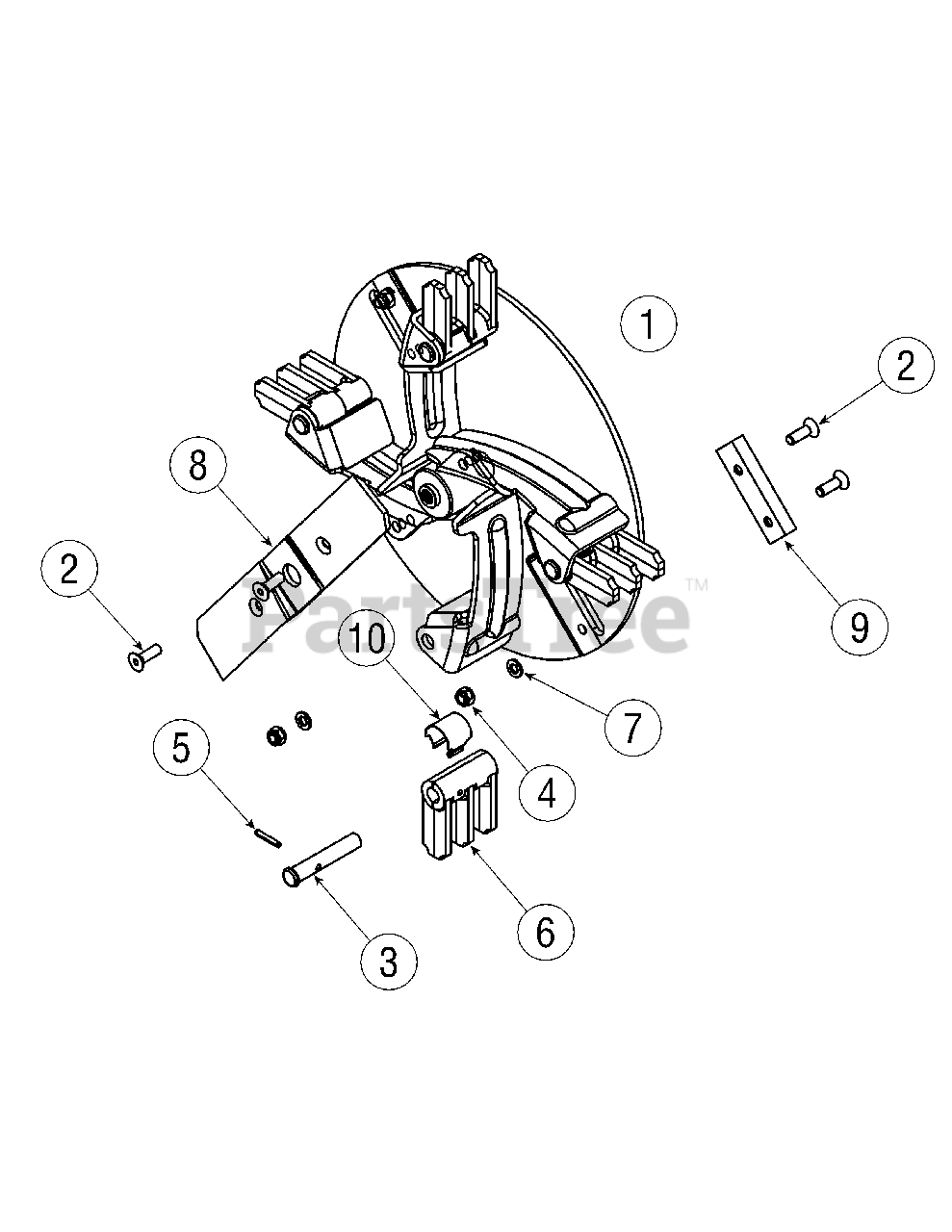

Impeller Parts Diagram

  • Title

1

Troy-Bilt 681-04009

Impeller Assembly Complete
(Superseded to 981-04094)

$613.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1054

Machine Screw, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 711-0833B

Clevis Pin,.496
(Superseded to 911-0833B)

$12.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 712-0411

Hex Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 715-0166

Spiral Pin,.156 x 1.0

$6.99

$

In Stock, Qty 19

0

6

Troy-Bilt 719-0329

Flail

$31.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 742-04050

Shredder Blade
(Superseded to 742-04050-0637)

$34.99

$

In Stock, Qty 13

0

9

Troy-Bilt 742-0544A

Chipper Blade
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 6

0

10

Troy-Bilt 781-0735

Retainer Clip

$4.49

$

In Stock, Qty 20+

0
