CS 4310 (24A-425E766) - Troy-Bilt Chipper Shredder (2006) General Assembly Parts Diagram

Chipper Shredder

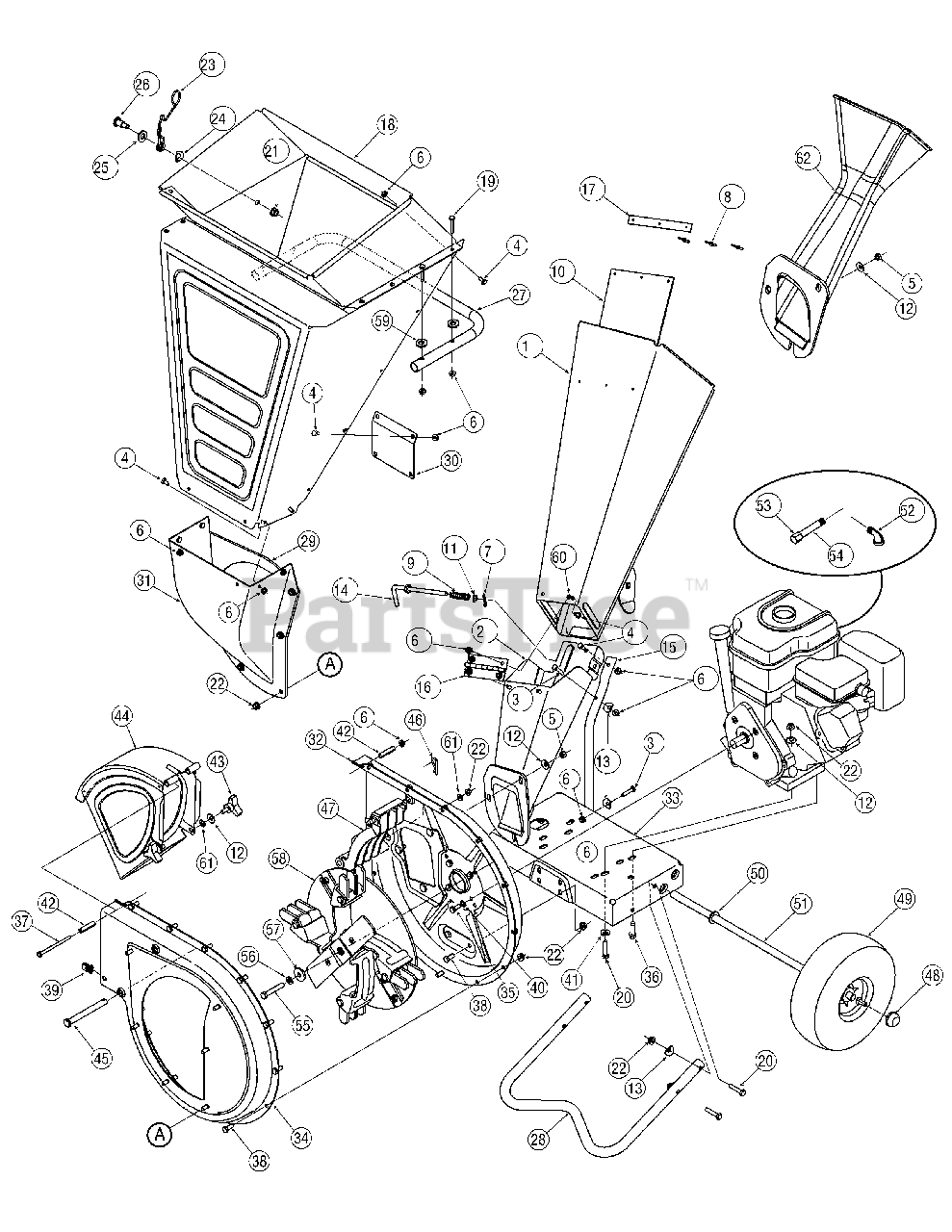

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 681-04006

Upper Chipper Chute Assembly
(Superseded to 981-04006)

Note: Model 425

Variations

Troy-Bilt 681-04006-0638

CHUTE ASM-UPPER - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04006-0721

USE 981-04006-4044 CHUTE ASM- - SEARS RED (0721)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04006-4021

CHUTE ASM-UPPER - CUB YELLOW 2 (4021)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04006-4044

CHUTE ASM-UPPER - CRAFTSMAN RED (4044)

$216.99

$

Usually ships in 3-6 days

0

$196.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-04007

Lower Chipper Chute Assembly

Note: Model 425

Variations

Troy-Bilt 681-04007-0638

CHUTE ASM-LOWER - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04007-0721

Lower Chute Assembly - SEARS RED (0721)

$

$

Not available

Troy-Bilt 681-04007-4044

Lower Chute Assembly - CRAFTSMAN RED (4044)

$

$

Not available

Troy-Bilt 681-04007-4021

CHUTE ASSY-LOWER - CUB YELLOW 2 (4021)

$

$

Not available

$133.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0106

Hex Cap Screw, 1/4-20 x 1.25

Note: Model 425

$3.99

$

In Stock, Qty 12

0

4

Troy-Bilt 710-0599

TT Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

Note: Model 425

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 714-0104

Cotter Pin

Note: Model 425

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 728-0175

Pop Rivet

Note: Model 425

$4.99

$

In Stock, Qty 6

0

9

Troy-Bilt 732-0306A

Compression Spring,.531 x 1.75
(Superseded to 932-0306A)

Note: Model 425

$8.49

$

In Stock, only 4 left!

0

10

Troy-Bilt 735-0249A

Chute Flap

Note: Model 425

$24.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 736-0140

Flat Washer

Note: Model 425

$7.49

$

In Stock, Qty 7

0

12

Troy-Bilt 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0451

Washer,.320 ID x.93 OD

$4.49

$

In Stock, Qty 7

0

14

Troy-Bilt 747-04163

Lock Rod
(Superseded to 947-04163)

Note: Model 425

$14.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 749-1004

Chipper Chute Support

Note: Model 425

Variations

Troy-Bilt 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 781-04032

Chipper Chute Hinge
(Superseded to 981-04032)

Note: Model 425

$12.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 781-0633

Chute Flap Strip

Note: Model 425

$10.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 681-04011

Shredder Hopper Assembly
(Superseded to 981-04011)

Variations

Troy-Bilt 681-04011-0638

HOPPER ASM-SHREDDE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 681-04011-0721

HOPPER ASSEMBLY - SEARS RED (0721)

$

$

Not available

Troy-Bilt 681-04011-4021

HOPPER ASM-SHREDDE - CUB YELLOW 2 (4021)

$

$

Not available

Troy-Bilt 681-04011-4044

HOPPER ASM-SHREDDE - CRAFTSMAN RED (4044)

$

$

Not available

$

$

19

Troy-Bilt 710-0809

Hex Cap Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

20

Troy-Bilt 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

Note: Model 425

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 732-04167

Torsion Spring
(Superseded to 932-04167)

Note: Model 425

$10.99

$

In Stock, Qty 10

0

24

Troy-Bilt 736-0182

Spring Washer,.50 x 1.0 x.022

Note: Model 425

$4.49

$

In Stock, Qty 7

0

25

Troy-Bilt 736-0326

Flat Washer,.50 x 1.0 x.0125

Note: Model 425

$4.49

$

In Stock, only 4 left!

0

26

Troy-Bilt 738-0430

Shoulder Screw, 3/8-16,.50 x.685

Note: Model 425

$11.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 749-04103

Hopper Handle
(Superseded to 749-04103-0637)

Variations

Troy-Bilt 749-04103-0637

HANDLE-HOPPER - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 749-04104

Tube Support
(Superseded to 749-04104-0637)

Variations

Troy-Bilt 749-04104-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 781-04007

Shredder Plate

Variations

Troy-Bilt 781-04007-0638

Shredder Plate - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04007-4021

PLATE-SHREDDER - CUB YELLOW 2 (4021)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04007-0721

PLATE-SHREDDER - SEARS RED (0721)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04007-4044

PLATE-SHREDDER - CRAFTSMAN RED (4044)

$49.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 781-04027

Hopper Support Bracket

Variations

Troy-Bilt 781-04027-0721

BRACKET-HOPPER SUPT - SEARS RED (0721)

$20.99

$

In Stock, only 1 left!

0

Troy-Bilt 781-04027-4021

BRACKET-HOPPER SUPPORT - CUB YELLOW 2 (4021)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04027-4044

BRACKET-HOPPER SUPT - CRAFTSMAN RED (4044)

$20.99

$

In Stock, only 1 left!

0

Troy-Bilt 781-04027-0638

BRACKET-HOPPER SUP - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 781-04033

Inlet Guide

Variations

Troy-Bilt 781-04033-0638

GUIDE-INLET - MTD/TROY-BILT RED (0638)

$93.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04033-0721

GUIDE-INLET - SEARS RED (0721)

$100.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04033-4021

GUIDE-INLET - CUB YELLOW 2 (4021)

$93.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04033-4044

GUIDE-INLET - CRAFTSMAN RED (4044)

$100.99

$

Usually ships in 3-6 days

0

$81.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 681-0117

Inner Flail Housing Assembly

Variations

Troy-Bilt 681-0117-0637

Flail Housing Assembly - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0483

Flail Housing Assembly - CHARCOAL GRAY (0483)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0638

Flail Housing Assembly - MTD/TROY-BILT RED (0638)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0691

Flail Housing Assembly - BLACK JACK (0691)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0721

Flail Housing Assembly - SEARS RED (0721)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-4044

Flail Housing Assembly - CRAFTSMAN RED (4044)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0689

Flail Housing Assembly - POLO GREEN (0689)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0709

Flail Housing Assembly - MASTERCRAFT GREEN (0709)

$185.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-4021

Flail Housing Assembly - CUB YELLOW 2 (4021)

$185.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 681-0183A

Frame Assembly
(Superseded to 681-0183B)

Variations

Troy-Bilt 681-0183A-0638

FRAME-ENGINE MOUNTING - MTD/TROY-BILT RED (0638)

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0183A-0691

FRAME-ENGINE MOUNTING - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0183A-0721

FRAME-ENGINE MTG - SEARS RED (0721)

$63.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 681-04002

Outer Flail Housing Assembly

Variations

Troy-Bilt 681-04002-0638

HOUSING ASM-FLAIL - MTD/TROY-BILT RED (0638)

$141.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04002-0721

HOUSING ASM-FLAIL - SEARS RED (0721)

$141.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04002-4044

HOUSING ASM-FLAIL - CRAFTSMAN RED (4044)

$141.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04002-4021

HOUSING ASM-FLAIL - CUB YELLOW 2 (4021)

$141.99

$

Usually ships in 3-6 days

0

$141.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-0157

Hex Cap Screw, 5/16-24 x.75

$4.49

$

In Stock, Qty 18

0

36

Troy-Bilt 710-0502A

Hex Sems Screw, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 710-0825

Hex Cap Screw, 1/4-20 x 3.75

$5.49

$

In Stock, only 3 left!

0

38

Troy-Bilt 710-3025

Hex Cap Screw, 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

39

Troy-Bilt 726-0211

U-Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

40

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0170

Special Lock Washer, 5/16

$5.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 750-0793

Hinge Spacer,.265 x.380 x 1.66
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

43

Troy-Bilt 681-0048

Knob Assembly (Incl. ref.# 12 & 61)
(Superseded to 720-0170)

$11.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 720-0170

Knob Only, 5/16-18

$11.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 681-0094

Chute Deflector Assembly
(Superseded to 681-0094A)

Variations

Troy-Bilt 681-0094-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0498

CHUTE-DISCHARGE - OLD CUB YELLOW (0498)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0691

CHUTE-DISCHARGE - BLACK JACK (0691)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0721

Discharge Chute - SEARS RED (0721)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-4021

CHUTE-DISCHARGE - CUB YELLOW 2 (4021)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-4044

Discharge Chute - CRAFTSMAN RED (4044)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0689

CHUTE-DISCHARGE - POLO GREEN (0689)

$129.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0709

CHUTE-DISCHARGE - MASTERCRAFT GREEN (0709)

$129.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 711-0835

Clevis Pin,.50 x 4.62
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

47

Troy-Bilt 719-04070

Shredder Screen

$48.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 4 left!

0

49

Troy-Bilt 734-1845

Wheel, 10 x 4 x 4
(Superseded to 753-08108)

$126.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 736-0366

Flat Washer,.625 x 1.0

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 738-0813

Axle, 22.47"

$52.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 737-0195

Elbow Fitting
(Superseded to 937-0195)

Note: Model 414 Only

$16.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 737-0132

Oil Drain End Cap

Note: If equipped

$10.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 737-0298

Oil Drain Pipe

Note: If equipped

$12.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 710-1254

Hex Cap Screw, 3/8-24 x 2.2

$7.99

$

In Stock, Qty 8

0

56

Troy-Bilt 736-0217

Lock Washer, 3/8

$4.49

$

In Stock, Qty 8

0

57

Troy-Bilt 736-0247

Flat Washer,.406 x 1.25

$9.49

$

In Stock, Qty 14

0

58

Troy-Bilt 681-04009

Impeller Assembly
(Superseded to 981-04094)

Note: See Impeller for parts

$613.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

60

Troy-Bilt 726-0233

Push Nut,.25ID x.50OD

Note: Model 425

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 726-0201

Speed Nut,.3125ID

$6.99

$

In Stock, only 2 left!

0

62

Troy-Bilt 681-0095

Chipper Chute

Note: Model 414 Only

Variations

Troy-Bilt 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0691

CHUTE ASSY-CHIPPER COMPLETE - BLACK JACK (0691)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0709

CHUTE ASSY-CHIPPER COMPLETE - MASTERCRAFT GREEN (0709)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0483

CHUTE ASSY-CHIPPER COMPLETE - CHARCOAL GRAY (0483)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0498

CHUTE ASSY-CHIPPER COMPLETE - OLD CUB YELLOW (0498)

$229.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0650

CHUTE ASSY-CHIPPER COMPLETE - RED METALLIC (0650)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0665

CHUTE ASSY-CHIPPER COMPLETE - YARDMAN GREEN (0665)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0716

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW-99 (0716)

$229.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-4021

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW 2 (4021)

$229.99

$

Usually ships in 3-6 days

0

$239.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 712-04064

Nut, Flange, Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 664-04023

Debris Collection Bag
(Superseded to 664P04023A)

Note: Not Shown

$103.99

$

In Stock, only 2 left!

0

Troy-Bilt 723-0400

Safety Glasses

Note: Not Shown

$26.99

$

Usually ships in 3-6 days

0
