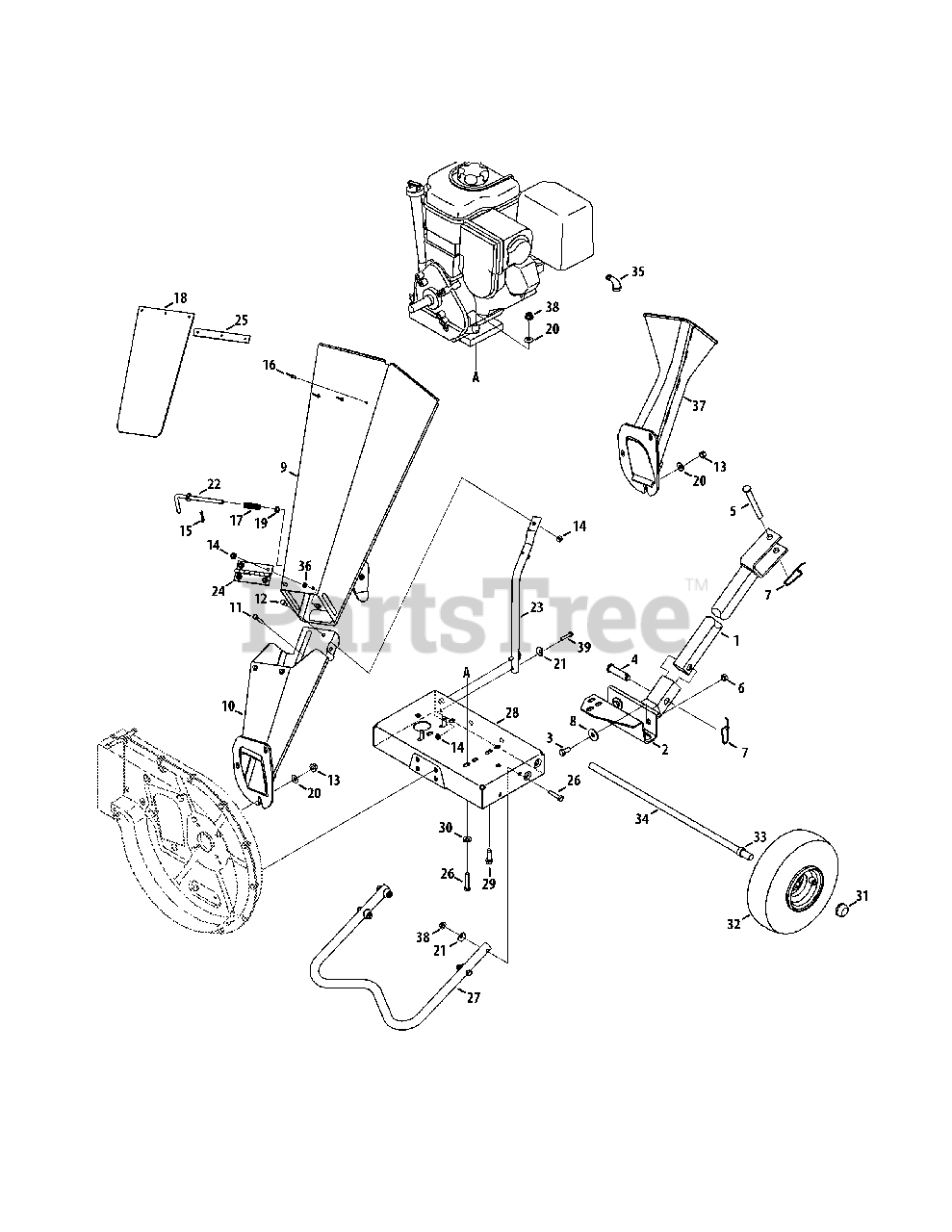

CS 4265 (24A-41M4766) - Troy-Bilt Chipper Shredder (2015) General Assembly Parts Diagram

Chipper Shredder

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 981-0133A

Tongue Hitch Mount
(Superseded to 981-0133B)

Variations

Troy-Bilt 981-0133A-0637

BAR-TOW TONGUE POW - POWDER BLACK (0637)

$77.99

$

In Stock, only 2 left!

0

Troy-Bilt 981-0133A-4021

BAR-TOW TONGUE - CUB YELLOW 2 (4021)

$77.99

$

In Stock, only 2 left!

0

$72.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-0134A-0637

Base Hitch Mount
(Superseded to 681-0134B-0637)

$83.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-3001

Hex Cap Screw, 3/8-16 x.88

$7.49

$

In Stock, Qty 9

0

4

Troy-Bilt 711-0299

Clevis Pin,.625 x 2.4

$36.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 911-0835

Clevis Pin,.50 x 4.62

$12.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 732-0194

Spring Pin

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 936-0133

Flat Washer,.411 x 1.25 x 1.0
(Superseded to 736-0133)

$

$

Not available

9

Troy-Bilt n/a

Upper Chipper Chute Assembly

Note: (Not used on this model)

$

$

Currently unavailable

10

Troy-Bilt n/a

Lower Chipper Chute Assembly

Note: (Not used on this model)

$

$

Currently unavailable

11

Troy-Bilt n/a

Hex Cap Screw, 1/4-20 x 1.25

Note: (Not used on this model)

$

$

Currently unavailable

12

Troy-Bilt n/a

Screw, 1/4-20 x .50

Note: (Not used on this model)

$

$

Currently unavailable

13

Troy-Bilt 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt n/a

Flange Lock Nut 1/4-20

Note: (Not used on this model)

$

$

Currently unavailable

15

Troy-Bilt n/a

Cotter Pin

Note: (Not used on this model)

$

$

Currently unavailable

16

Troy-Bilt n/a

Pop Rivet

Note: (Not used on this model)

$

$

Currently unavailable

17

Troy-Bilt n/a

Compression Spring,.531 x 1.75

Note: (Not used on this model)

$

$

Currently unavailable

18

Troy-Bilt n/a

Chute Flap

Note: (Not used on this model)

$

$

Currently unavailable

19

Troy-Bilt n/a

Flat Washer

Note: (Not used on this model)

$

$

Currently unavailable

20

Troy-Bilt 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 936-0451

Washer,.320 ID x.93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

22

Troy-Bilt n/a

Lock Rod

Note: (Not used on this model)

$

$

Currently unavailable

23

Troy-Bilt n/a

Chipper Chute Support

Note: (Not used on this model)

$

$

Currently unavailable

24

Troy-Bilt n/a

Chipper Chute Hinge

Note: (Not used on this model)

$

$

Currently unavailable

25

Troy-Bilt n/a

Chute Flap Strip

Note: (Not used on this model)

$

$

Currently unavailable

26

Troy-Bilt 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$4.49

$

In Stock, Qty 20+

0

27

$52.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 681-0184C-0638

Frame Assembly

$117.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-0502A

Hex Sems Screw, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 936-0170

Special Lock Washer, 5/16
(Superseded to 736-0170)

$

$

Not available

31

Troy-Bilt 726-0214

Push Cap, 5/8

$10.99

$

In Stock, Qty 5

0

32

Troy-Bilt 934-04009

Wheel, 10 x 4 x 4

$122.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 950-0786

Spacer, .64 x .88 x .38

$7.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 738-0813

Axle, 22.47"

$52.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 937-0195

Elbow Fitting

$16.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt n/a

Push Nut,.25ID x.50OD

Note: (Not used on this model)

$

$

Currently unavailable

37

Troy-Bilt 681-04118-0638

Chipper Chute

$147.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt n/a

Hex Cap Screw, 1/4-20 x 1.250

Note: (Not used on this model)

$

$

Currently unavailable

Troy-Bilt 964-04023

Debris Collection Bag
(Superseded to 664P04023A)

Note: (Not Shown)

$103.99

$

In Stock, only 2 left!

0

Troy-Bilt 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
