CS 4265 (24A-41M4766) - Troy-Bilt Chipper Shredder (2013) 170-CU Fuel Tank Parts Diagram

Chipper Shredder

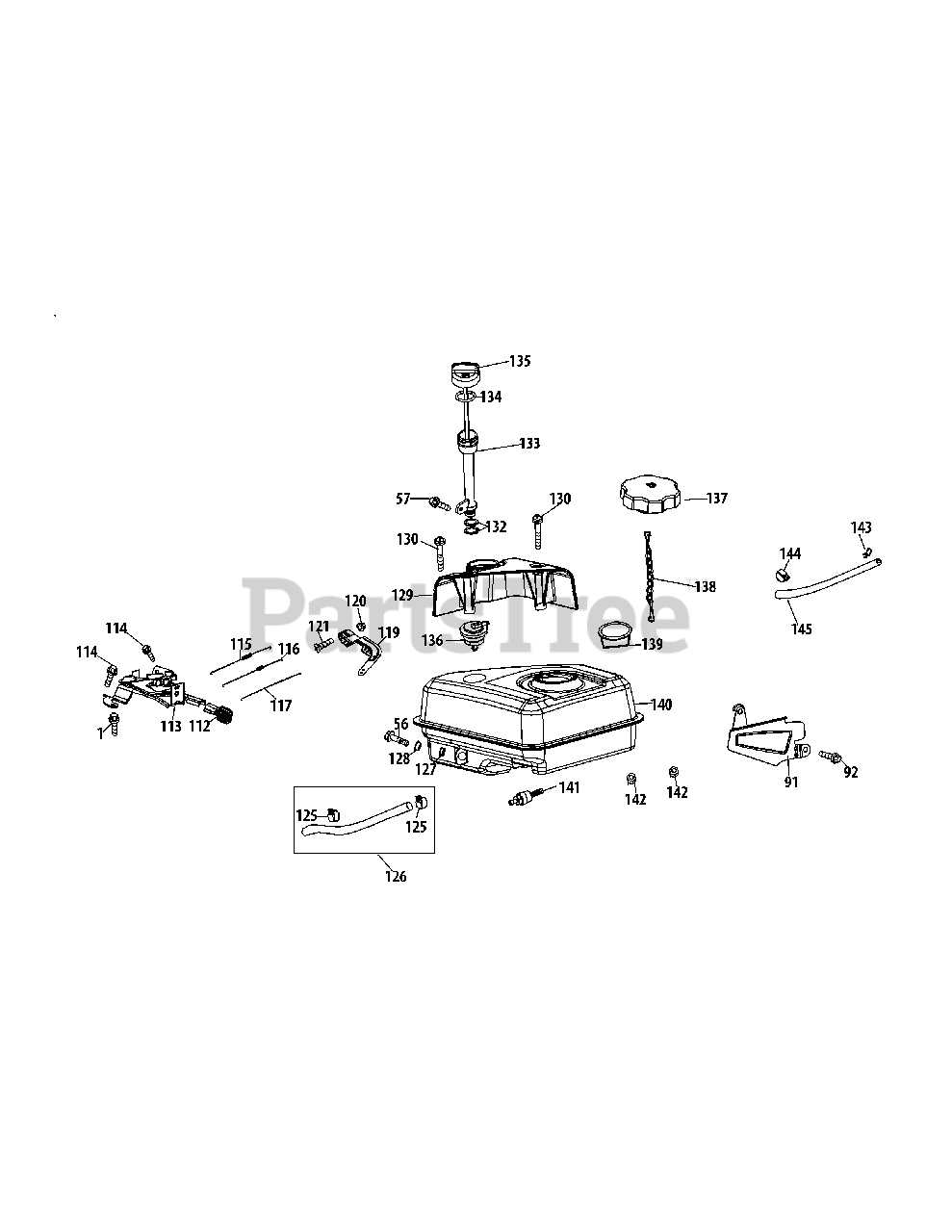

170-CU Fuel Tank Parts Diagram

  • Title
1

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

56

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

91

Troy-Bilt 951-11110

Air Flow Shield

$4.49

$

Usually ships in 3-6 days

0

92

Troy-Bilt 710-04940

Bolt M6×10

$5.49

$

In Stock, only 3 left!

0

112

Troy-Bilt 951-11067

Throttle Control Knob

$3.99

$

Usually ships in 3-6 days

0

113

Troy-Bilt 951-12131

Primer Bracket

$20.99

$

Usually ships in 3-6 days

0

114

Troy-Bilt 710-05103

Bolt M6×12

$4.49

$

In Stock, only 2 left!

0

115

Troy-Bilt 951-11585

Governor Spring

$7.49

$

In Stock, Qty 7

0

116

Troy-Bilt 951-10664

Throttle Linkage Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

117

Troy-Bilt 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

119

Troy-Bilt 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

120

Troy-Bilt 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

121

Troy-Bilt 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

125

Troy-Bilt 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

126

Troy-Bilt 951-10650

Kit-Fuel Line

$28.99

$

In Stock, only 2 left!

0

127

Troy-Bilt 750-05314

Rubber Shock Pad

$3.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

129

Troy-Bilt 951-11914

Dipstick Decoration Cover

$14.99

$

In Stock, Qty 7

0

$4.49

$

Usually ships in 3-6 days

0

132

Troy-Bilt 951-11381

Oil Fill Tube O-Ring

$5.49

$

In Stock, Qty 10

0

133

Troy-Bilt 951-11913

Oil Fill Tube Assey (Incl.132,133)

$16.99

$

In Stock, Qty 5

0

134

Troy-Bilt 921-04663

Oil Fill Tube O-Ring
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

135

Troy-Bilt 951-12482

Dipstick Assy - (Incl.134,135)

$15.99

$

Usually ships in 3-6 days

0

136

Troy-Bilt 951-14075

Roll Over Valve
(Superseded to 951-14075A)

$28.99

$

In Stock, Qty 13

0

137

Troy-Bilt 951-12535

Cap Comp,Fuel Feller

$23.99

$

In Stock, Qty 12

0

138

Troy-Bilt 951-14076

Fuel Cap Chain

$8.99

$

Usually ships in 3-6 days

0

139

Troy-Bilt 951-11933

Fuel Filter

$9.99

$

Usually ships in 3-6 days

0

140

$138.99

$

In Stock, only 2 left!

0

141

Troy-Bilt 951-10651

Fuel Tank Nipple

$15.99

$

In Stock, Qty 16

0

142

$6.99

$

In Stock, Qty 6

0

143

Troy-Bilt 723-04093

Exhaust Piping

$4.49

$

Usually ships in 3-6 days

0

144

Troy-Bilt 932-05143

Hose Clamp

$5.49

$

Usually ships in 3-6 days

0

145

Troy-Bilt 951-14541

Primer Hose Assembly

$8.49

$

In Stock, only 1 left!

0
