CS 4265 (24A-414B766) - Troy-Bilt Chipper Shredder (2008) General Assembly Parts Diagram

Chipper Shredder

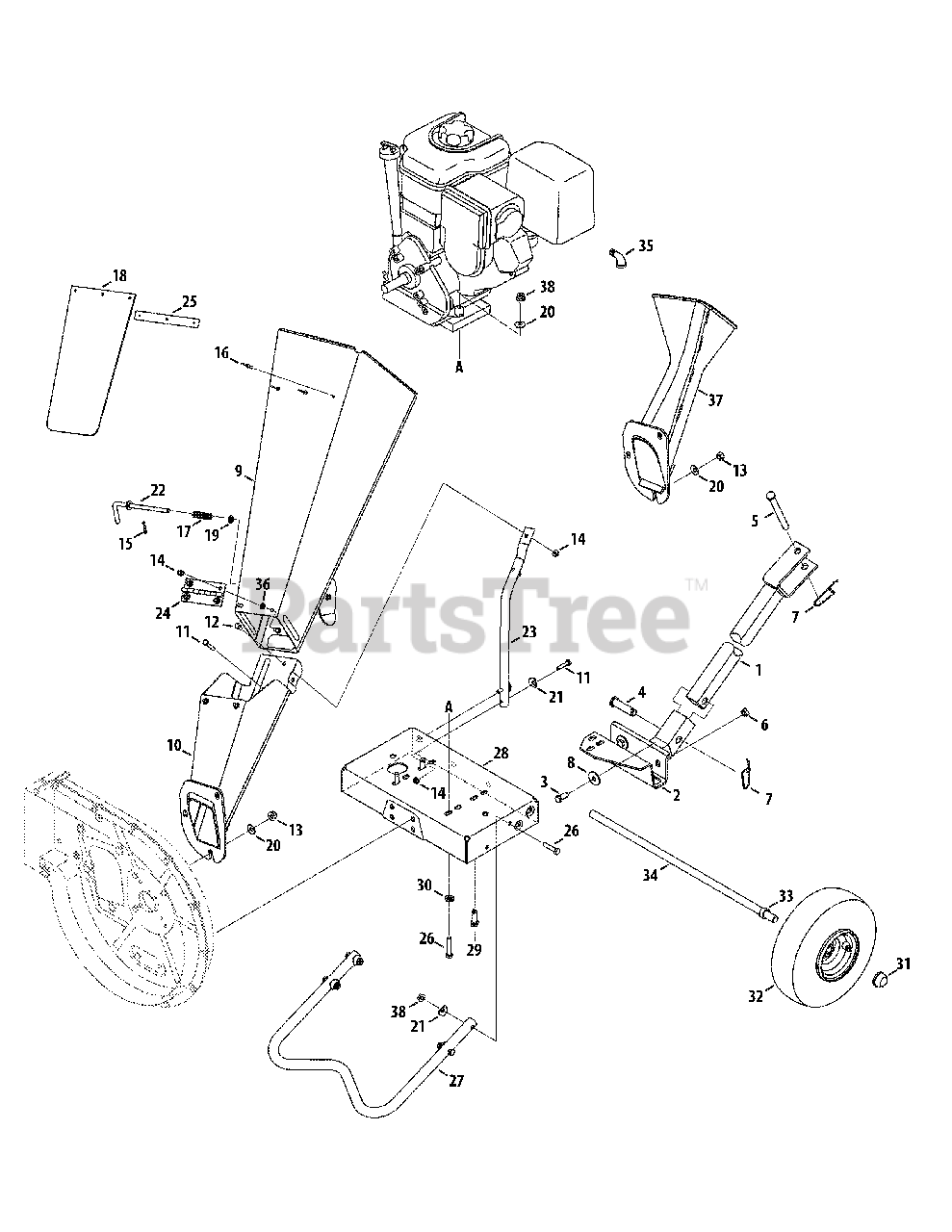

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 681-0133

Tongue Hitch Mount
(Superseded to 981-0133B)

Variations

Troy-Bilt 681-0133-4021

TOW BAR (CUB YELLOW 2) - CUB YELLOW 2 (4021)

$77.99

$

In Stock, only 1 left!

0

Troy-Bilt 681-0133-0637

TONGUE TOW BAR BLACK - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$72.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-0134A

Base Hitch Mount
(Superseded to 681-0134B-0637)

Variations

Troy-Bilt 681-0134A-0637

BAR-TOW BASE - POWDER BLACK (0637)

$83.99

$

In Stock, only 1 left!

0

$83.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-3001

Hex Cap Screw, 3/8-16 x.88

$7.49

$

In Stock, Qty 9

0

4

Troy-Bilt 711-0299

Clevis Pin,.625 x 2.4

$36.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 711-0835

Clevis Pin,.50 x 4.62
(Superseded to 911-0835)

$12.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 732-0194

Spring Pin

$4.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 736-0133

Flat Washer,.411 x 1.25 x 1.0

$5.49

$

In Stock, Qty 7

0

9

Troy-Bilt 681-04006

Upper Chipper Chute Assembly
(Superseded to 981-04006)

Note: Model Series 420

Variations

Troy-Bilt 681-04006-0638

CHUTE ASM-UPPER - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04006-0721

USE 981-04006-4044 CHUTE ASM- - SEARS RED (0721)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04006-4021

CHUTE ASM-UPPER - CUB YELLOW 2 (4021)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04006-4044

CHUTE ASM-UPPER - CRAFTSMAN RED (4044)

$216.99

$

Usually ships in 3-6 days

0

$196.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 681-04007

Lower Chipper Chute Assembly

Note: Model Series 420

Variations

Troy-Bilt 681-04007-0638

CHUTE ASM-LOWER - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04007-0721

Lower Chute Assembly - SEARS RED (0721)

$

$

Not available

Troy-Bilt 681-04007-4044

Lower Chute Assembly - CRAFTSMAN RED (4044)

$

$

Not available

Troy-Bilt 681-04007-4021

CHUTE ASSY-LOWER - CUB YELLOW 2 (4021)

$

$

Not available

$133.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-0106

Hex Cap Screw, 1/4-20 x 1.25

Note: Model Series 420

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 710-3013

Screw, 1/4-20 x .50

Note: Model Series 420

$4.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

Note: Model Series 420

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 714-0104

Cotter Pin

Note: Model Series 420

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 728-0175

Pop Rivet

Note: Model Series 420

$4.99

$

In Stock, Qty 11

0

17

Troy-Bilt 732-0306A

Compression Spring,.531 x 1.75
(Superseded to 932-0306A)

Note: Model Series 420

$8.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 735-0249A

Chute Flap

Note: Model Series 420

$24.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 736-0140

Flat Washer

Note: Model Series 420

$7.49

$

In Stock, Qty 7

0

20

Troy-Bilt 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0451

Washer,.320 ID x.93 OD

$4.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 747-04163

Lock Rod
(Superseded to 947-04163)

Note: Model Series 420

$14.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 749-1004

Chipper Chute Support

Note: Model Series 420

Variations

Troy-Bilt 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 781-04032

Chipper Chute Hinge
(Superseded to 981-04032)

Note: Model Series 420

$12.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 781-0633

Chute Flap Strip

Note: Model Series 420

$10.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

27

Troy-Bilt 749-04104

Tube Support
(Superseded to 749-04104-0637)

Variations

Troy-Bilt 749-04104-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 681-0184A

Frame Assembly
(Superseded to 681-0184C)

Note: Model Series 410

Variations

Troy-Bilt 681-0184A-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0184A-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0184A-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0184A-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$102.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0184A-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0184A-0721

FRAME ASM-SHREDDER - SEARS RED (0721)

$117.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 681-0183A

Frame Assembly
(Superseded to 681-0183B)

Note: Model Series 420

Variations

Troy-Bilt 681-0183A-0638

FRAME-ENGINE MOUNTING - MTD/TROY-BILT RED (0638)

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0183A-0691

FRAME-ENGINE MOUNTING - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0183A-0721

FRAME-ENGINE MTG - SEARS RED (0721)

$63.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-0502A

Hex Sems Screw, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 736-0170

Special Lock Washer, 5/16

$5.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 634-04009

Wheel, 10 x 4 x 4
(Superseded to 934-04009)

$122.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 750-0786

Spacer, .64 x .88 x .38
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 738-0813

Axle, 22.47"

$52.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 737-0195

Elbow Fitting
(Superseded to 937-0195)

$16.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 726-0233

Push Nut,.25ID x.50OD

Note: Model Series 420

$4.49

$

In Stock, only 3 left!

0

37

Troy-Bilt 681-0095

Chipper Chute

Note: Model Series 410

Variations

Troy-Bilt 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0691

CHUTE ASSY-CHIPPER COMPLETE - BLACK JACK (0691)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0709

CHUTE ASSY-CHIPPER COMPLETE - MASTERCRAFT GREEN (0709)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0483

CHUTE ASSY-CHIPPER COMPLETE - CHARCOAL GRAY (0483)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0498

CHUTE ASSY-CHIPPER COMPLETE - OLD CUB YELLOW (0498)

$229.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0650

CHUTE ASSY-CHIPPER COMPLETE - RED METALLIC (0650)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0665

CHUTE ASSY-CHIPPER COMPLETE - YARDMAN GREEN (0665)

$257.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-0716

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW-99 (0716)

$229.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0095-4021

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW 2 (4021)

$229.99

$

Usually ships in 3-6 days

0

$239.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 664-04023

Debris Collection Bag
(Superseded to 664P04023A)

Note: Not Shown

$103.99

$

In Stock, only 2 left!

0

Troy-Bilt 723-0400

Safety Glasses

Note: Not Shown

$26.99

$

Usually ships in 3-6 days

0
