CS 4265 (24A-412J211) - Troy-Bilt Chipper Shredder (2010) CS 4265 & CS 4325 Chipper Shredder Chute Assembly Parts Diagram

Chipper Shredder

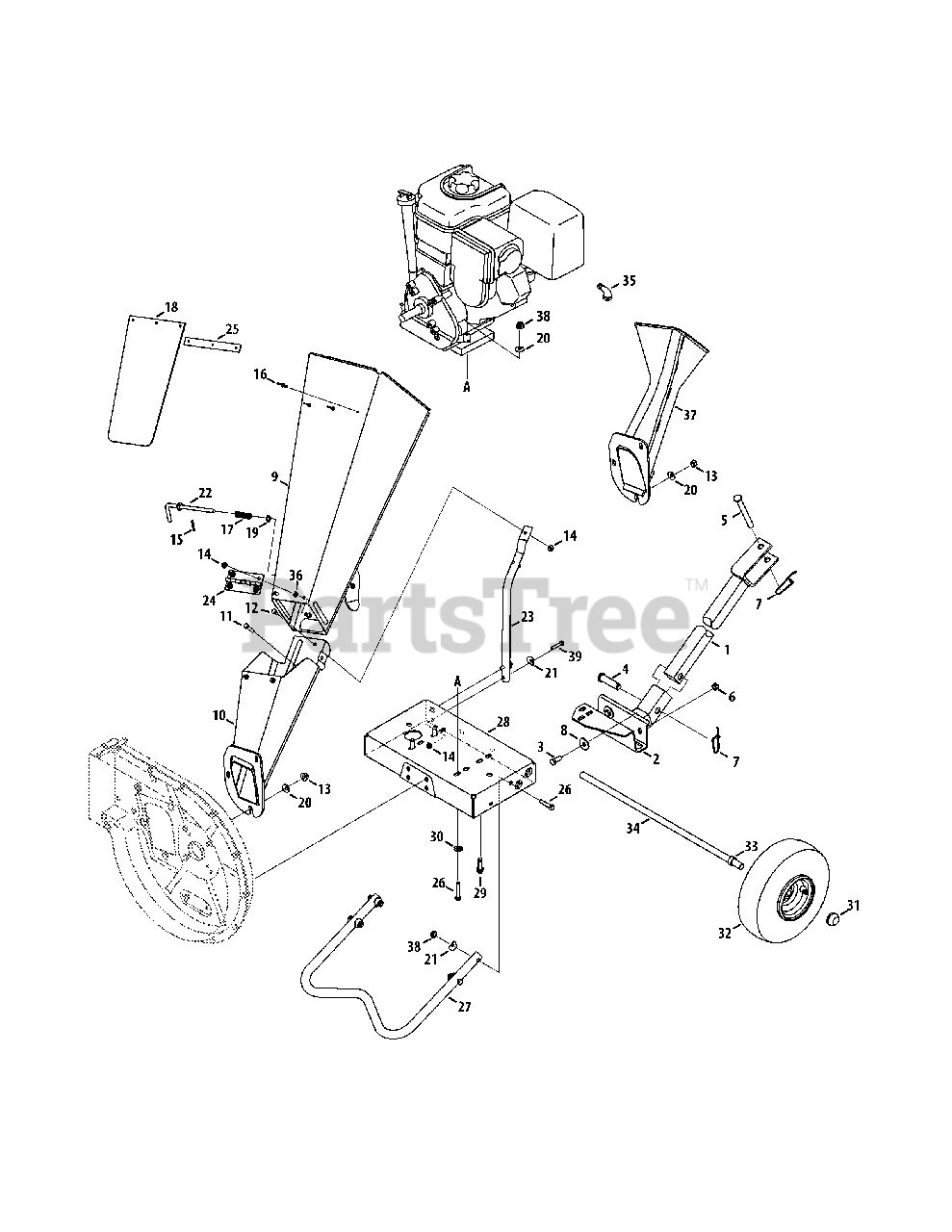

CS 4265 & CS 4325 Chipper Shredder Chute Assembly Parts Diagram

  • Title
1

Troy-Bilt 981-0133-0637

Tongue Hitch Mount
(Superseded to 981-0133B-0637)

$77.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 681-0134A-0637

Base Hitch Mount
(Superseded to 681-0134B-0637)

$83.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-3001

Hex Cap Screw, 3/8-16 x.88

$7.49

$

In Stock, Qty 9

0

4

Troy-Bilt 711-0299

Clevis Pin,.625 x 2.4

$36.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 911-0835

Clevis Pin,.50 x 4.62

$12.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

8

Troy-Bilt 936-0133

Flat Washer,.411 x 1.25 x 1.0
(Superseded to 736-0133)

$

$

Not available

9

Troy-Bilt 681-04006-0638

Upper Chipper Chute Assembly
(Superseded to 981-04006-0638)

Note: 24A-424 Models Only

$216.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 681-04117-0638

Lower Chipper Chute Assembly
(Superseded to 681-04117A-0638)

Note: 24A-424 Models Only

$156.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-0106

Hex Cap Screw, 1/4-20 x 1.25

Note: 24A-424 Models Only

$3.99

$

In Stock, Qty 12

0

12

Troy-Bilt 710-3013

Screw, 1/4-20 x .50

Note: 24A-424 Models Only

$4.99

$

In Stock, Qty 11

0

13

Troy-Bilt 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

Note: 24A-424 Models Only

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

Note: 24A-424 Models Only

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 728-0175

Pop Rivet

Note: 24A-424 Models Only

$4.99

$

In Stock, Qty 6

0

17

Troy-Bilt 932-0306A

Compression Spring,.531 x 1.75

Note: 24A-424 Models Only

$8.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 735-0249A

Chute Flap

Note: 24A-424 Models Only

$24.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 936-0140

Flat Washer
(Superseded to 736-0140)

Note: 24A-424 Models Only

$

$

Not available

20

Troy-Bilt 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 936-0451

Washer,.320 ID x.93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

22

Troy-Bilt 947-04163

Lock Rod

Note: 24A-424 Models Only

$14.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 749-1004-0638

Chipper Chute Support
(Superseded to 749-1004-0637)

Note: 24A-424 Models Only

$46.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 981-04032

Chipper Chute Hinge

Note: 24A-424 Models Only

$12.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 781-0633

Chute Flap Strip

Note: 24A-424 Models Only

$10.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

27

$52.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 681-0184C-0638

Frame Assembly

$117.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-0502A

Hex Sems Screw, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 936-0170

Special Lock Washer, 5/16
(Superseded to 736-0170)

$

$

Not available

31

Troy-Bilt 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 4 left!

0

32

Troy-Bilt 634-04009

Wheel, 10 x 4 x 4
(Superseded to 934-04009)

$122.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 950-0786

Spacer, .64 x .88 x .38

$7.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 738-0813

Axle, 22.47"

$52.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 937-0195

Elbow Fitting

$16.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 726-0233

Push Nut,.25ID x.50OD

Note: 24A-424 Models Only

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 681-04118-0638

Chipper Chute

Note: 24A-41 Models Only

$147.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 710-0809

Hex Cap Screw, 1/4-20 x 1.250

Note: 24A-424 Models Only

$6.99

$

In Stock, Qty 19

0

Troy-Bilt 964-04023

Debris Collection Bag
(Superseded to 664P04023A)

Note: Not Shown

$103.99

$

In Stock, only 2 left!

0

Troy-Bilt 723-0400

Safety Glasses

Note: Not Shown

$26.99

$

Usually ships in 3-6 days

0
