CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Handles, Throttle Control, Fuel System Parts Diagram

Chainsaw

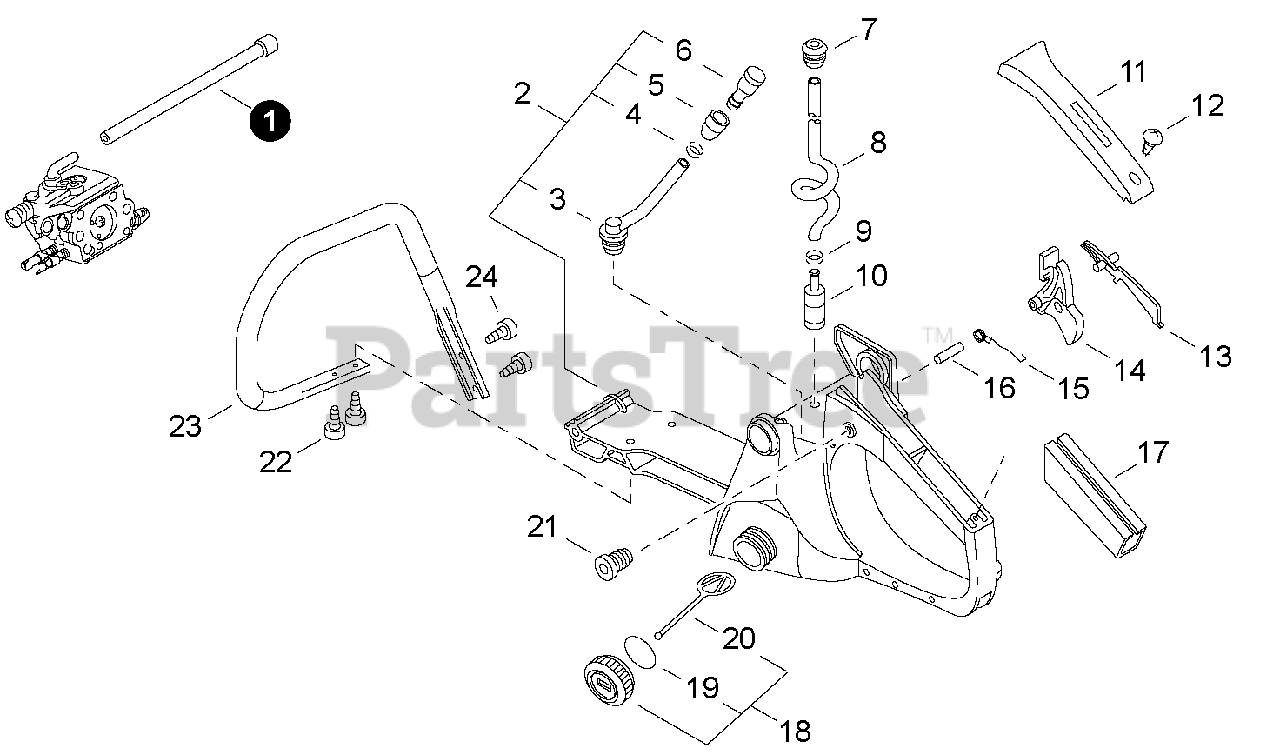

Handles, Throttle Control, Fuel System Parts Diagram

  • Title

1

Echo 13011054430

PIPE - 3X6X105 -- BLACK
(Superseded to 13011054431)

$2.49

$

In Stock, Qty 6

0

2

Echo P021013413

HANDLE ASSY - REAR

$

$

Currently unavailable

3

Echo 13201239931

PIPE - VENT
(Superseded to 13201239932)

$12.99

$

In Stock, only 1 left!

0

4

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

5

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

6

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 11

0

7

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

8

Echo 13201000760

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

11

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$11.99

$

In Stock, only 2 left!

0

12

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 18

0

13

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

In Stock, only 1 left!

0

14

Echo C450000000

TRIGGER, THROTTLE

$4.99

$

In Stock, only 1 left!

0

15

Echo 17804335430

SPRING, TRIGGER

$2.49

$

Usually ships in 2-4 days

0

16

Echo 90034540030

PIN - SPRING -- 4X30

$1.99

$

In Stock, only 3 left!

0

17

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

18

Echo P021037920

CAP ASSY - ORANGE

$10.99

$

In Stock, Qty 20+

0

19

Echo V581000610

O-RING - 22

$0.99

$

In Stock, Qty 9

0

20

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

21

Echo V162000040

PLUG

$1.99

$

In Stock, only 4 left!

0

22

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, only 4 left!

0

23

Echo C400000191

HANDLE - FRONT

$96.99

$

Usually ships in 2-4 days

0

24

Echo 9114505020

SCREW - 5X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0
